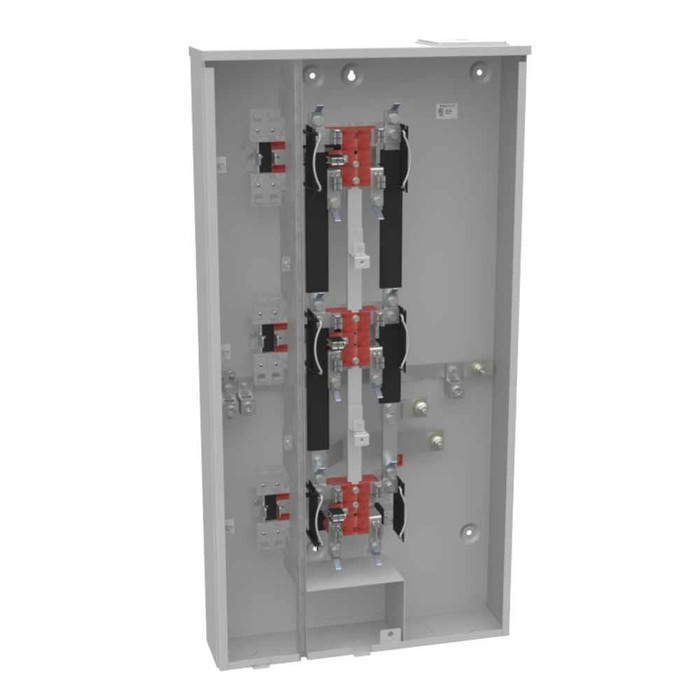

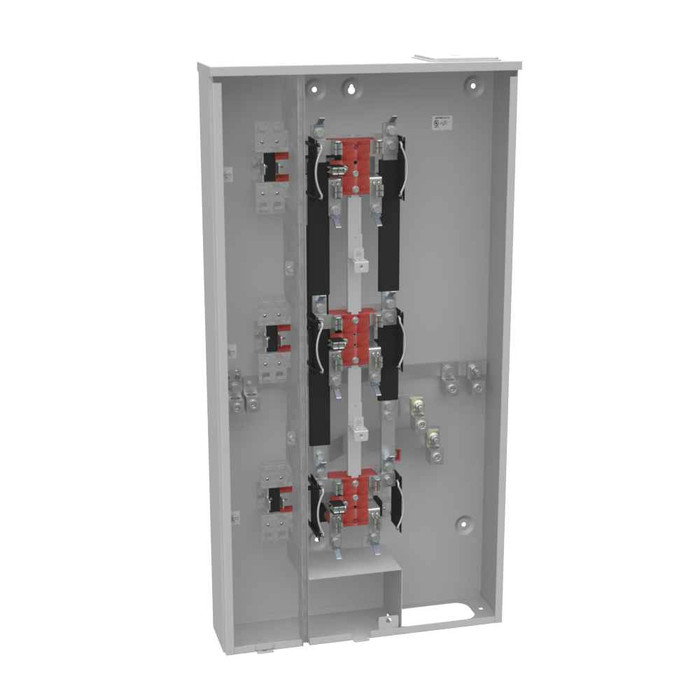

Milbank U2863-X 4-5 Terminal Ringless Meter Socket Large Closing Plate 3 Position 3-200 Ampere Main Breaker Provision

Milbank 3-Position Ringless Meter Socket with Main Breaker Provision 200A 1-Phase Surface Mount

(No reviews yet) Write a Review

Model: U2863-X-KK-5T

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,207.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 3-Position Ringless Meter Socket with Main Breaker Provision 200A 1-Phase Surface Mount

Professional Multi-Meter Power Distribution Solution

The Milbank 3-Position Ringless Meter Socket delivers reliable electrical metering and distribution for multi-unit applications. This surface-mount unit features 200 continuous ampere rating with 1-phase 240V AC capacity, G90 galvanized steel construction with powder coat finish, and UL Listed Type 3R enclosure rating for dependable outdoor performance. The unit accommodates overhead or underground cable entry with ground lug provision and includes large closing plate configuration.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial power capacity for demanding multi-unit electrical distribution applications.
  • 3-Position Meter Configuration: Enables individual metering for multiple units or circuits from a single centralized location.
  • UL Listed Type 3R Enclosure: Ensures weather-resistant protection and code compliance for outdoor installations.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in harsh environmental conditions.
  • Main Breaker Provision: Accommodates main breaker installation for enhanced electrical protection and service disconnect capability.
  • Overhead/Underground Cable Entry: Provides flexible installation options to accommodate various service entrance configurations.
  • 7/16 Inch Barrel Lock Provision: Enables secure utility access control with standard barrel lock hardware.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Barrel Lock Provision: 7/16 Inch Knockout for Barrel Lock Provision
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 3
  • Number Of Meter Positions: 3 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: CU20
  • Product Height: 41 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 21W x41H
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 21 IN

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Multi-Tenant Facilities
  • Mixed-Use Developments
  • Housing Authority Projects
  • Property Management Applications
  • Utility Service Entrance Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the glass polyester insulation and comprehensive wire range accommodation provide professional-grade performance for demanding electrical distribution applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Barrel Lock Provision:
7/16 Inch Knockout for Barrel Lock Provision
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
3
Number Of Meter Positions:
3 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
CU20
Product Height:
41 IN
Product Length:
4.844 IN
Product Size:
4.844L x 21W x41H
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
21 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Metering & Service Entrance

Milbank U2863-X-KK-5T – Frequently Asked Questions

1) Will a Milbank U2863-X 3-position meter socket work for a triplex or 3-unit apartment building service?
That is exactly what the U2863-X is built for. It carries three meter positions and three branch circuits in one enclosure, so each unit gets its own utility meter off a single service point. It is 1-phase, up to 240 volts AC, 60 Hz, rated 200 continuous amperes, with a provision for a main breaker ahead of the meters. Standard residential multi-unit service, not a 3-phase commercial service.
2) Does the Milbank U2863-X come with a main breaker, or do I have to buy one separately?
It ships as a breaker provision, meaning the space and mounting are there but the main breaker itself is a separate purchase. Budget the breaker into the job before you order. The socket handles the metering and the 200 ampere service entrance; the disconnect and overcurrent device go in the provision you fill.
3) What size service entrance conductors can I land in a Milbank U2863-X meter socket?
Line side terminals take 6 AWG through 350 kcmil, which covers the usual copper and aluminum SE conductor sizes for a 200 amp service. Ground is a lug, not a bar with multiple ports, so plan your grounding electrode conductor termination accordingly. Insulation on the socket is glass polyester.
4) Can the Milbank U2863-X be fed from an overhead drop, or is it underground service only?
Either one. The socket accepts overhead or underground cable entry, and it comes with a large closing plate for the hub opening, so you close off the top when you are coming in from below and fit a hub when you are coming in from above. That flexibility is why the same part number gets specified on both new underground developments and existing overhead-fed buildings.
5) What is the difference between a ringless meter socket and a ring-type one, and which does my utility want?
Ringless, like the U2863-X, uses a hinged or lift-off cover secured by the utility's seal rather than a separate sealing ring clamped around the meter rim. Which style you can install is set by the serving utility, not by preference, so confirm with them before ordering. Ringless is the common requirement across much of the Midwest, and the U2863-X specifically carries a Commonwealth Edison and Chicago Housing Authority feature designation. If your utility spec sheet calls for ring type, this is the wrong socket.
6) Is the Milbank U2863-X approved for a ComEd service in the Chicago area?
The U2863-X is designated for Commonwealth Edison and Chicago Housing Authority applications. If you are pulling permits on a CHA or ComEd territory job, there is also a CECHA-approved variant, the U2863-X-KK-K1-PED-CECHA, which combines horn bypass, vertical pedestal mounting and the CECHA approval in one part number. Match the exact suffix your utility approval letter calls for.
7) Which Milbank U2863-X option do I order if the utility requires a lever bypass?
Order a KK suffix. U2863-X-KK is the horn bypass version, U2863-X-KK-5T adds a 5 terminal vertical configuration for services that need a neutral or fifth terminal landing, and U2863-X-KK-K1-PED is horn bypass on a pedestal. The plain U2863-X has no bypass. Utilities that hot-swap meters without dropping the service almost always require a bypass, so check the utility spec before defaulting to the base part.
8) I need a 3-position meter stack but there is no wall to mount it on. Is there a freestanding version?
Yes, two of them. U2863-X-KK-K1-PED is the pedestal-mount build with horn bypass, and U2863-X-KK-K1-PED-CECHA is the same pedestal unit with the vertical CECHA approval. Both put the socket on its own stand for mobile home parks, lot-line services, and sites where the meters cannot be hung on a structure. The base U2863-X and the hasp version are surface-mount only.
9) Does 200 amp on the Milbank U2863-X mean 200 amps per unit or 200 amps total?
200 continuous amperes is the socket's rating, and the main breaker provision sits ahead of the three meter positions, so it is the service capacity for the whole assembly, not per tenant. Size the individual unit feeds and their branch devices accordingly. There are three branch circuits, one per metered position.
10) How do I lock a Milbank meter socket against tampering in a rough location?
Two paths. Every U2863-X has a 7/16 inch knockout for a standard utility barrel lock, which is what the serving utility uses for its own access control. If you need a padlock instead, order the U2863-X-HSP, which adds a stainless steel hasp. Property managers on multi-family sites with a history of meter tampering usually want the hasp version.
11) Will the Milbank U2863-X take a 5-terminal meter, or is it 4-terminal only?
Both. The U2863-X is a 4-5 terminal ringless socket. If your utility specifically requires the fifth terminal landed in a vertical arrangement with lever bypass, order U2863-X-KK-5T, which is built as the 5 terminal horn bypass vertical configuration.
12) Does the Milbank U2863-X include receptacles for house power or maintenance loads?
No receptacles are built in. The U2863-X is metering and distribution only, with three metered positions and three branch circuits. If the job needs a house panel or a maintenance outlet at the service point, that is separate equipment.
13) Will a Milbank U2863-X hold up mounted outdoors on the coast or in a road-salt environment?
The enclosure is G90 galvanized steel with a powder coat finish over it, in a Type 3R rain-tight construction, which is the standard build for outdoor service equipment. For heavy salt exposure, specify stainless hardware where you can; the U2863-X-HSP variant uses a stainless steel hasp. Internal insulation is glass polyester.
