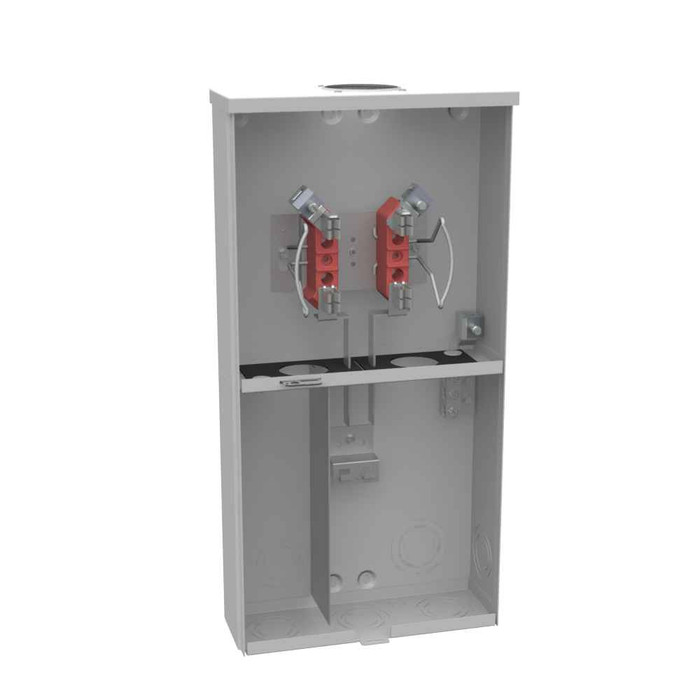

Milbank 100A 1-Phase Ringless Meter Socket with Main Breaker Provision - 4 Terminal Surface Mount

Milbank 100A 1-Phase Ringless Meter Socket with Main Breaker Provision - 4 Terminal Surface Mount

Professional electrical metering solution with main breaker provision capability

The Milbank 100A 1-Phase Ringless Meter Socket delivers reliable electrical metering with main breaker provision in a durable G90 galvanized steel construction with powder coat finish. This UL Listed Type 3R rated unit features 4 terminal lay-in connections, small hub opening design, and surface mount installation for versatile overhead or underground cable entry applications up to 240 volts AC.

Professional Features & Benefits

• 100 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service applications with reliable current handling.
• 1-Phase 240V AC Operation: Compatible with standard residential electrical systems delivering consistent power distribution and metering accuracy.
• G90 Galvanized Steel Construction: Ensures long-lasting durability and corrosion resistance with professional powder coat finish for enhanced weather protection.
• UL Listed Type 3R Rating: Meets rigorous safety standards for outdoor installation with protection against rain, sleet, and ice formation.
• 4 Terminal Lay-In Design: Simplifies installation with accessible terminal connections and secure conductor placement for professional wiring practices.
• Ringless Meter Socket Configuration: Eliminates the need for meter rings while maintaining secure meter retention and reliable electrical connections.
• Main Breaker Provision Ready: Designed to accommodate main breaker installation for enhanced electrical protection and service disconnect capability.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Application: Meter Socket With Main
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: 3 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Hub Opening
• Insulation: Glass Polyester
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: MTMN
• Product Height: 22 IN
• Product Length: 3.75 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 3.75L x 11W x22H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 11 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Service Entrance
• Small Commercial Metering Applications
• Multi-Unit Property Electrical Distribution
• Professional Office Buildings
• Retail Establishment Power Metering
• Light Industrial Electrical Service
• Emergency Services Facility Power Distribution

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection rating. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the glass polyester insulation and 3 barrel ground lug provide enhanced safety and performance for professional electrical installations.
