Milbank U4532-XL 4 Terminal Ringless Small Hub Closing Plate

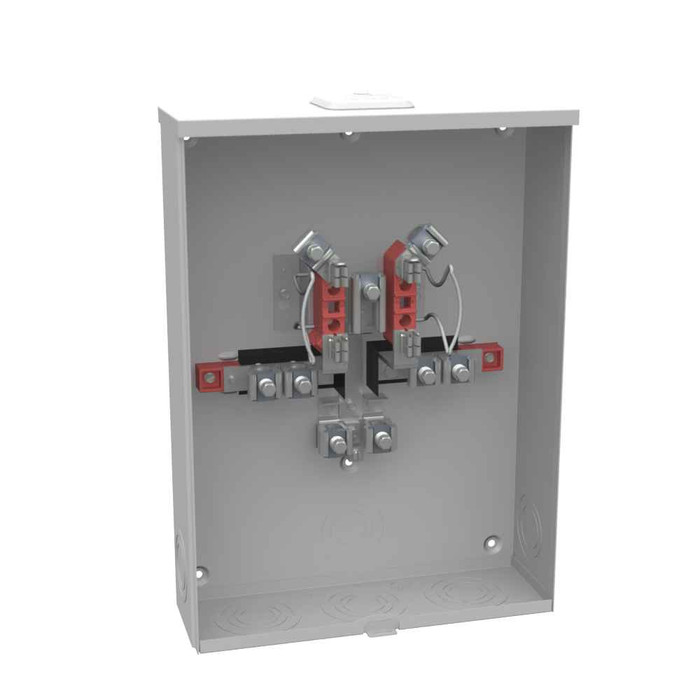

Milbank 4 Terminal Ringless Meter Socket 200A 1 Phase with Small Hub Closing Plate

(No reviews yet) Write a Review

Model: U4532-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$577.21
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 4 Terminal Ringless Meter Socket 200A 1 Phase with Small Hub Closing Plate

Professional electrical metering solution for residential and commercial applications

The Milbank 4 Terminal Ringless Meter Socket delivers reliable 200 continuous ampere service in a compact 1 phase configuration. Constructed with G90 galvanized steel and powder coat finish for superior corrosion resistance, this UL Listed Type 3R enclosure provides versatile overhead or underground cable entry options. The surface mount design with lay-in terminals accommodates 6 AWG to 350 kcmil wire ranges on both line and load sides, while the included small hub closing plate ensures professional installation flexibility.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • 4 Terminal Ringless Design: Simplifies installation and maintenance with accessible lay-in terminal connections for enhanced serviceability.
  • G90 Galvanized Steel Construction: Provides exceptional durability and corrosion resistance with powder coat finish for long-term outdoor performance.
  • UL Listed Type 3R Enclosure: Meets stringent safety standards for outdoor installation with protection against weather and environmental conditions.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation requirements.
  • Wide Wire Range Compatibility: Accepts 6 AWG to 350 kcmil conductors on line and load sides for comprehensive wiring flexibility.
  • Glass Polyester Insulation: Ensures reliable electrical isolation and safety performance in demanding service environments.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 20.5 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 15W x20.5H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 15 IN

Professional Applications

  • Residential Service Entrance Metering
  • Small Commercial Building Electrical Service
  • Multi-Unit Residential Properties
  • Retail and Office Building Metering
  • Light Industrial Facility Power Distribution
  • Utility Company Service Installations
  • Electrical Contractor Service Upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R environmental protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor installations, while the professional 4 terminal ringless design provides the serviceability and performance electrical professionals demand.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
20.5 IN
Product Length:
4.844 IN
Product Size:
4.844L x 15W x20.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
15 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U4532-XL – Frequently Asked Questions

1) Will the Milbank U4532-XL meter socket work for a 200 amp residential service upgrade?
Yes, for a single phase 200 amp service. The U4532-XL is rated 200 continuous amperes, 1 phase, 600 VAC, 60 Hz, with a single meter position and four jaws, which is the standard 4 terminal single phase residential arrangement. It carries no main breaker and no bypass, so your service disconnect has to live downstream in a separate panel or disconnect enclosure.
2) Can this meter socket be used for an underground lateral, or is it overhead only?
Either one. The U4532-XL is built for overhead or underground cable entry, so the same can works for a service drop or a lateral. It ships with a small hub closing plate, which is what you remove and replace with the correct hub when you are bringing conduit into the top for an overhead mast, or leave in place and enter from the bottom on an underground job.
3) Is a hub included with the Milbank U4532-XL, or do I have to order one separately?
What comes with it is the small closing plate, not a hub. If your installation needs conduit entering the top of the can, you order the matching small-size hub for the trade size of your raceway separately and swap it in for the plate. For bottom or back entry on an underground service, the plate stays put.
4) Is this meter socket rated for outdoor mounting on an exterior wall?
It is. The enclosure is UL Listed and Type 3R, which is the rainproof outdoor rating utilities normally require for an exterior service entrance. The can is G90 galvanized steel with a powder coat finish, and the internal insulation is glass polyester. Mounting is surface mount, so it fastens flat to the wall or a backboard.
5) How much wall space do I need for the Milbank U4532-XL meter can?
The can measures 4.844L x 15W x 20.5H inches. Plan the opening with the meter ring and glass projecting past that depth, and set the height so the meter center lands where your utility requires it. It is a surface mount enclosure, so no wall cutout is needed.
6) What does ringless mean on a meter socket, and how do I know if my utility wants ringless or ring type?
Ringless means the socket has no separate sealing ring around the meter; the cover slides down over the meter and is sealed to the can instead. The U4532-XL is a ringless 4 terminal single position socket. Which style you can install is set by the serving utility, not by code, so check the utility's approved meter equipment list before buying. Ring type and ringless covers are not interchangeable on the same can.
7) Does this Milbank socket have a meter bypass for pulling the meter under load?
No bypass on this one. The U4532-XL is specified as no bypass, so the meter has to be pulled with the service de-energized or coordinated with the utility. If your utility or facility requires a lever or horn bypass for maintenance metering, you need a bypass-equipped socket instead of this model.
