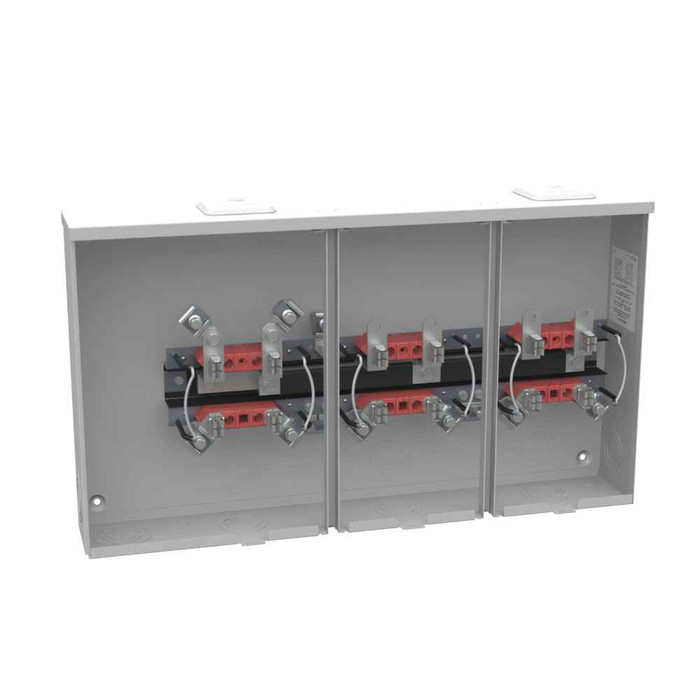

Milbank 4 Terminal Ringless Small Closing Plate Multi-Position 150 Ampere Side Wireway

Milbank 150 Amp 1 Phase Ringless Meter Socket with 4 Terminal Multi-Position Wireway

(No reviews yet) Write a Review

Model: U9354-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$940.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 150 Amp 1 Phase Ringless Meter Socket with 4 Terminal Multi-Position Wireway

Professional electrical metering solution with versatile installation options

The Milbank 150 Amp 1 Phase Ringless Meter Socket delivers reliable electrical metering with 4 terminal configuration and multi-position wireway design. Constructed with G90 galvanized steel and powder coat finish for durability, this UL Listed Type 3R rated unit accommodates both overhead and underground cable entry with surface mount installation for versatile applications.

Professional Features & Benefits

  • 150 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service requirements.
  • 4 Terminal Ringless Design: Eliminates the need for meter rings while ensuring secure electrical connections and simplified installation.
  • Multi-Position Wireway: Accommodates flexible wire routing with 2 AWG to 350 kcmil wire range for both line and load sides.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and sleet.
  • G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability and professional appearance.
  • Overhead/Underground Compatible: Versatile cable entry options support various installation configurations and utility requirements.
  • UL Listed Certification: Meets rigorous safety standards for reliable performance in electrical service applications.

Technical Specifications

  • Amperage Rating: 150 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 2 AWG - 350 kcmil
  • Load Side Wire Range: 2 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: G150
  • Product Height: 16 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 300 Volts Alternating Current

Professional Applications

  • Residential electrical service installations
  • Small commercial and retail establishments
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial facilities
  • Utility metering applications
  • Electrical service upgrades and replacements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-lasting performance, while the comprehensive wire range compatibility and multi-position design provide installation flexibility for professional electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
150 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
2 AWG - 350 kcmil
Load Side Wire Range:
2 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
G150
Product Height:
16 IN
Product Type:
Meter Stack
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
300 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
150
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Power Distribution

Milbank U9354-XL – Frequently Asked Questions

1) Will a Milbank U9352-XL 4 terminal meter socket work for 120/240V single phase residential service?
Yes. The Milbank U935X-XL ringless socket is a 1 phase, 4 terminal (4 jaw) unit rated 300 volts AC at 60 hertz, which covers standard 120/240V single phase residential and light commercial service. The 4 jaw configuration is what most utilities specify for single phase 3 wire service. Continuous rating is 150 amps.
2) What does the position count (2, 3, or 4) mean on the Milbank U935 multi-position meter socket?
The position number is the number of meter positions, or sockets, in the wireway assembly: U9352-XL is 2 position, U9353-XL is 3 position, and U9354-XL is 4 position. Each position is a 150 amp, 4 terminal ringless socket fed from a common side wireway, so pick the count by how many tenants or units you are metering off one service.
3) Can I land 4/0 aluminum SER on the lugs of this Milbank 150 amp meter socket?
Yes. Both line and load terminals on the U935-XL series accept 2 AWG through 350 kcmil, so 4/0 falls inside the range. The terminals are lay-in style, which means you drop the conductor in rather than threading it through a hole, easier with stiff aluminum SER.
4) Can this Milbank ringless socket be fed underground, or is it overhead only?
Either. Cable entry is rated for overhead or underground, and the unit ships with a small closing plate so you can fit the hub your utility requires for an overhead drop or close the opening off for an underground lateral. Mounting is surface mount against the wall or meter board.
5) Does the Milbank U935-XL come with a main breaker or bypass?
No. It is a straight socket only, with no main breaker and no bypass provision, and no receptacles. Overcurrent protection has to live downstream in each unit's panel or in a separate main breaker enclosure. If your utility requires a lever bypass for hot meter pulls, this is not the unit.
6) Is a ringless meter socket the right choice, or do I need a ring type?
Ringless is what the great majority of North American utilities now specify, and it is a utility decision, not an installer preference. A ringless socket like the Milbank U935-XL series uses a sealable cover over the meter instead of a separate locking ring. Call your serving utility before ordering: if their standard is ring type, a ringless socket will not pass their inspection and you need a ring style unit instead.
7) Can this Milbank meter socket be mounted outdoors in the rain?
Yes. The enclosure is UL Listed and Type 3R rated, which is the outdoor rating for protection against rain and sleet. Body is G90 galvanized steel with a powder coat finish for corrosion resistance, and the internal insulation is glass polyester. Type 3R is not a washdown or dust-tight rating, so it is for normal exterior wall service locations.
8) Is there a grounding provision in this Milbank socket or do I add a ground bar?
A ground lug is provided as the equipment ground means, so you can land the grounding electrode conductor without adding a kit. Neutral and grounding bonding still has to follow your utility's service entrance rules for the installation.
9) How tall is the Milbank 150 amp multi-position meter socket for layout on the wall?
Product height is 16 inches. Multi-position units gang horizontally off a side wireway, so plan the wall run by position count (2, 3, or 4) while keeping the 16 inch vertical dimension plus your utility's required meter center height.
