Milbank 5 Terminal Ringless Me...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,714.67

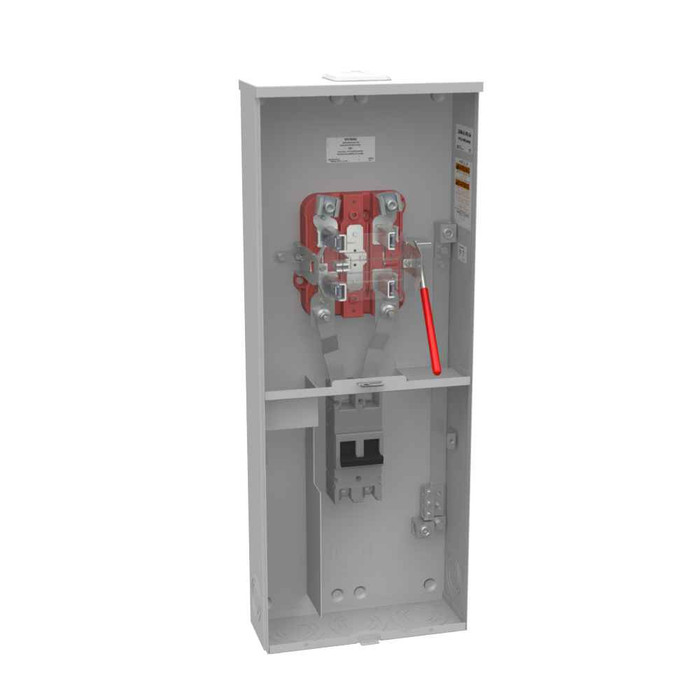

Milbank 5 Terminal Ringless Large Hub Open Adapt To Small Hub Open Lever Bypass with Main Breaker LISCO Approved

Milbank 5 Terminal Ringless Meter Socket with Main Breaker 1 Phase 240V LISCO Approved Lever Bypass System

(No reviews yet) Write a Review

Model: U3986-XL-150-LIS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,714.67
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 5 Terminal Ringless Meter Socket with Main Breaker 1 Phase 240V LISCO Approved Lever Bypass System

Professional meter socket solution with integrated main breaker protection and lever bypass functionality

The Milbank 5 Terminal Ringless Meter Socket delivers reliable single-phase electrical service with integrated main breaker protection and convenient lever bypass operation. Constructed with G90 galvanized steel and powder coat finish in a Type 3R rated enclosure, this LISCO approved unit provides professional-grade durability for overhead or underground cable entry applications. The surface mount design accommodates 2 AWG to 350 kcmil line side wire range with glass polyester insulation and 3 barrel ground lug equipment grounding.

Professional Features & Benefits

  • 5 Terminal Ringless Design: Eliminates meter ring requirements while providing secure jaw connections for reliable electrical contact and simplified installation.
  • Integrated Main Breaker: Single main breaker provides essential overcurrent protection and convenient disconnect capability at the service entrance.
  • Lever Bypass Provision: Allows temporary power continuity during meter changes or maintenance without service interruption to critical loads.
  • Type 3R Weather Rating: Galvanized steel construction with powder coat finish ensures reliable outdoor performance and corrosion resistance.
  • LISCO Approved: Long Island Lighting Company approval ensures compliance with specific utility requirements and installation standards.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation applications.
  • Professional Wire Range: Handles 2 AWG to 350 kcmil conductors with lay-in terminals for secure connections and easy installation.

Technical Specifications

  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 3 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 2 AWG - 350 kcmil
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MMHD
  • Product Height: 34 IN
  • Product Length: 4.875 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.875L x 13W x34H
  • Product Type: Ringless Meter Socket
  • Special Features: Long Island Lighting Company
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 13 IN

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Residential Service Entrance Applications
  • Commercial Building Electrical Service
  • Multi-Unit Residential Properties
  • Small Commercial and Retail Facilities
  • Professional Office Buildings
  • Light Industrial Service Connections
  • Utility Service Upgrade Projects

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical service solutions with UL Listed safety certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance for reliable outdoor performance in demanding electrical service applications.

Manufacturer Resources

Product Specs

Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Departent:
Electrical
Equipment Ground:
3 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
2 AWG - 350 kcmil
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MMHD
Product Height:
34 IN
Product Length:
4.875 IN
Product Size:
4.875L x 13W x34H
Product Type:
Ringless Meter Socket
Special Features:
Long Island Lighting Company
Standard:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Product Width:
13 IN
Department:
Electrical
