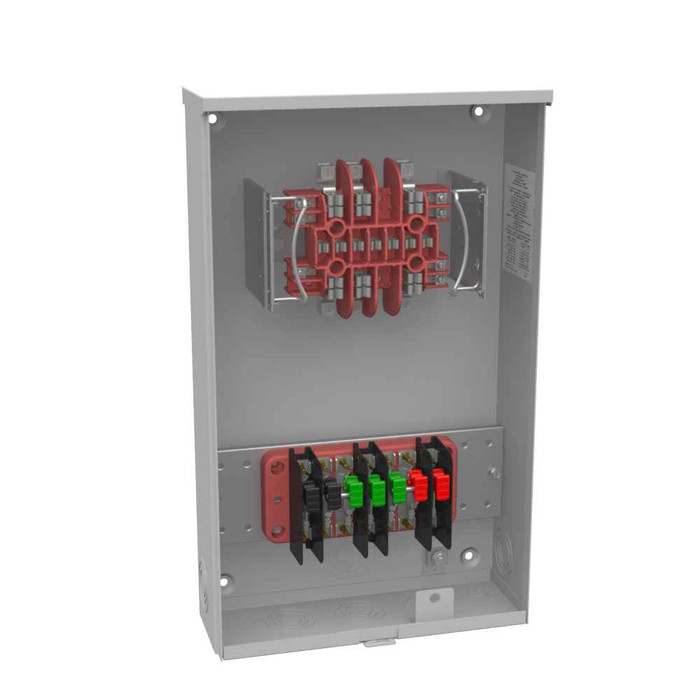

Milbank 6 Terminal Ringless Meter Socket 20A 1 Phase 600V Outdoor Utility Grade Network Base

Milbank 6 Terminal Ringless Meter Socket 20A 1 Phase 600V Outdoor Utility Grade Network Base

Professional utility grade metering solution for outdoor electrical service applications

The Milbank 6 Terminal Ringless Meter Socket delivers reliable 20 continuous ampere service in a durable outdoor-rated enclosure. This 1 phase, 600V utility grade network meter base features G90 galvanized steel construction with powder coat finish and Type 3R rating for dependable outdoor performance. Designed specifically for Northeast Utility New England Area applications with single mechanical terminals and glass polyester insulation.

Professional Features & Benefits

• 20 Continuous Ampere Rating: Provides reliable service capacity for residential and light commercial metering applications
• 6 Terminal Ringless Design: Eliminates the need for ring terminals, simplifying installation and reducing connection points
• Type 3R Outdoor Rating: Weather-resistant enclosure protects against rain, sleet, and ice formation for reliable outdoor operation
• G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability in harsh environments
• 600V AC Rating: Accommodates standard utility voltage requirements with 60 Hz frequency compatibility
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations
• Surface Mount Design: Enables straightforward installation on exterior walls and service panels

Technical Specifications

• Amperage Rating: 20 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Line Side Wire Range: 12 - 10 AWG
• Load Side Wire Range: 12 - 10 AWG
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 6 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: CT20
• Product Height: 20 IN
• Product Length: 4.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.125L x 12W x20H
• Product Type: Ringless Meter Socket
• Special Features: Northeast Utility New England Area
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 12 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering
• Small commercial and retail establishments
• Multi-unit residential properties
• Professional office buildings
• Light industrial facilities
• Northeast Utility service territories
• New England area utility networks

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R outdoor rating. The G90 galvanized steel construction with powder coat finish provides exceptional corrosion resistance, while the glass polyester insulation ensures long-term electrical performance in demanding outdoor environments.
