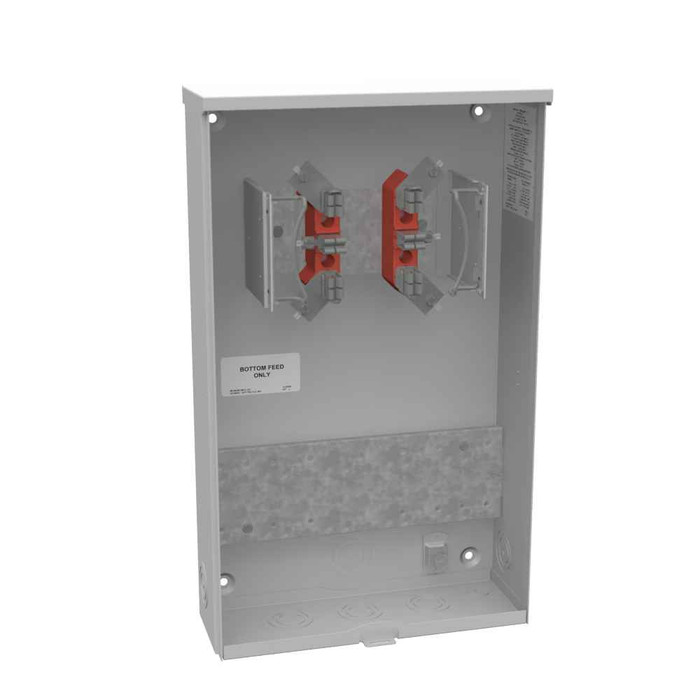

Milbank 6-13 Terminal Ringless Plain Top Test Switch Prewired CECHA Approved

Milbank 20A Ringless Meter Socket with Plain Top Test Switch CECHA Approved

(No reviews yet) Write a Review

Model: CE136-CECHA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,041.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 20A Ringless Meter Socket with Plain Top Test Switch CECHA Approved

Professional meter socket solution for Commonwealth Edison Chicago Housing Authority applications

The Milbank 20A Ringless Meter Socket delivers reliable single-position metering with CECHA approval for Commonwealth Edison Chicago Housing Authority installations. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides durable performance for 600V AC applications with 60 Hz frequency rating and ground lug equipment grounding.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides adequate capacity for residential and light commercial metering applications with reliable current handling.
  • Type 3R Enclosure Rating: Ensures weather-resistant protection for outdoor installations with resistance to rain, sleet, and ice formation.
  • G90 Galvanized Steel with Powder Coat Finish: Delivers superior corrosion resistance and long-lasting durability in harsh environmental conditions.
  • CECHA Approval: Meets Commonwealth Edison Chicago Housing Authority specifications for approved utility metering installations.
  • Ringless Design: Eliminates the need for meter rings, simplifying installation and reducing connection points for enhanced reliability.
  • UL Listed: Ensures compliance with safety standards and regulatory requirements for electrical metering equipment.
  • Single Mechanical Terminal: Provides secure electrical connections with reliable mechanical fastening for long-term performance.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Product Family Code: CT20
  • Product Height: 20 IN
  • Product Length: 4.12 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Commonwealth Edison Chicago Housing Authority Projects
  • Residential Metering Installations
  • Multi-Unit Housing Developments
  • Light Commercial Facilities
  • Utility Service Upgrades
  • Municipal Housing Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while CECHA approval provides confidence for Commonwealth Edison Chicago Housing Authority applications requiring compliant metering solutions.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Product Family Code:
CT20
Product Height:
20 IN
Product Length:
4.12 IN
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
20
Product Width:
12 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Surface Mount
Terminal Type:
Single Mechanical
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Power Distribution

Milbank CE136-CECHA – Frequently Asked Questions

1) What's the difference between the CE136-CECHA, CE138-CECHA and CE1313-CECHA meter sockets?
The terminal count is the only difference across the three. Milbank's CECHA ringless sockets are ordered as CE136-CECHA (6 terminal), CE138-CECHA (8 terminal), and CE1313-CECHA (13 terminal). Everything else carries across: 20 continuous amp rating, 600V AC, 60 Hz, single position, plain top, Type 3R enclosure. Match the terminal count to what the utility's metering drawing calls out for the service being metered.
2) Will a 20 amp meter socket work for a 200 amp residential service?
No. The Milbank CE13-CECHA socket is rated 20 continuous amps because it is a transformer-rated (instrument-rated) socket, not a self-contained 200A socket. The meter reads through current transformers rather than carrying the full service current. For a self-contained 200A service you need a 200A-rated self-contained socket instead. If the utility drawing calls for CTs and a test switch, this is the right family (CT20).
3) Does this Milbank socket include a main breaker or bypass?
No main breaker and no bypass provision. It is a straight single position metering enclosure, zero breakers, zero receptacles. Overcurrent protection has to come from a separate disconnect or panel downstream, and there is no lever bypass, so the utility will handle de-energizing through the test switch arrangement rather than a bypass handle.
4) What does CECHA approved actually mean and will ComEd accept this socket?
CECHA is the Commonwealth Edison Chicago Housing Authority specification, and these Milbank sockets are built to it. That is what gets them accepted on ComEd/CHA metering work in the Chicago area. If your job is outside that jurisdiction, the CECHA designation carries no benefit, and the local utility's own approved equipment list governs.
5) Can this Milbank ringless socket be mounted outdoors on an exterior wall?
Yes. It is a surface mount enclosure with a Type 3R rating, which covers outdoor use against rain, sleet and ice formation, and it is UL Listed. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance. Type 3R is not a washdown or dust-tight rating, so it is not the right box for a hosed-down or heavy-dust interior.
6) How much wall space do I need for the Milbank CECHA meter socket?
Plan for a 20 inch by 12 inch footprint with 4.12 inches of depth off the wall. It surface mounts, so allow working clearance in front per the utility's and the NEC's requirements for the meter position, plus room above and below for the service conduit.
7) Does the plain top mean I can't bring conduit in through the top?
Plain top means the enclosure ships with a solid top and no factory hub opening, so top entry has to be field-made or the service routed through another wall of the box. If the install calls for a raintight top entry, you want a hub or hub-opening version instead of the plain top.
8) Ringless versus ring-type meter socket, which one do I need?
That call belongs to the serving utility, not the installer. A ringless socket uses a hinged or lift-off cover that the utility seals directly, with no sealing ring around the meter. Milbank's CE13-CECHA family is ringless, which is what ComEd specifies for CECHA work. If your utility's approved list calls for ring-type, a ringless socket will be rejected at inspection.
9) What kind of grounding and line terminations does this meter socket use?
Grounding is by ground lug, and the line and load connections are single mechanical terminals, so conductors land under a set screw rather than needing a crimp lug. The internal insulation is glass polyester. Rated 600V AC at 60 Hz.
10) Can I standardize these across a multi-building housing portfolio in Chicago?
That is what the family is for. All three terminal configurations share the same 20 x 12 x 4.12 inch enclosure, the same G90 galvanized steel powder coated shell, the same Type 3R UL Listed construction, and the same CECHA approval, so spares and mounting details stay common across sites. The only variable per opening is terminal count: 6, 8, or 13.
