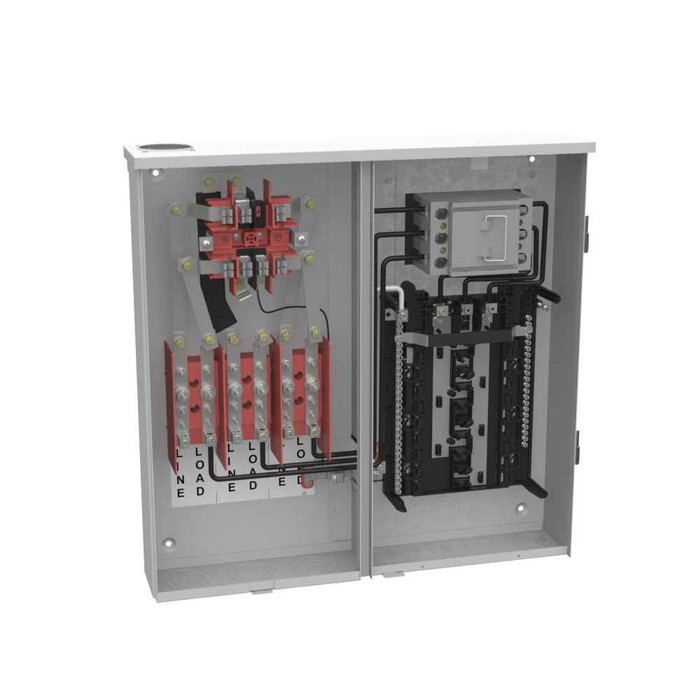

Milbank 7 Terminal Ring Type Meter Socket with 100A Main Breaker and 18 Branch Circuits

Milbank 7 Terminal Ring Type Meter Socket with 100A Main Breaker and 18 Branch Circuits

Professional electrical metering solution with integrated main breaker protection

The Milbank 7 Terminal Ring Type Meter Socket delivers reliable electrical metering and distribution with 100 continuous ampere capacity and integrated main breaker protection. This 3-phase unit features G90 galvanized steel construction with powder coat finish and fiberglass insulation with resin for long-lasting durability. The surface mount design accommodates both overhead and underground cable entry with link bypass provision for flexible installation options.

Professional Features & Benefits

• 100 Continuous Ampere Rating: Provides substantial capacity for residential and light commercial electrical distribution applications.
• 7 Terminal Ring Type Design: Ensures secure mechanical connections with single mechanical terminals for reliable power transfer.
• 3 Phase Configuration: Supports balanced power distribution for demanding electrical loads and equipment.
• G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and weather protection for outdoor installations.
• UL Listed Type 3R Rating: Meets stringent safety standards for outdoor use with protection against rain and sleet.
• Link Bypass Provision: Allows for meter maintenance without interrupting power service to critical loads.
• Fiberglass with Resin Insulation: Provides excellent electrical isolation and moisture resistance for safe operation.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Brand Name: Milbank
• Bypass Provision: Link Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Insulation: Fiberglass with Resin
• Number Of Jaws: 7 Terminal
• Number Of Main Breakers: 1
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 3 Phase
• Product Height: 24.75 IN
• Product Length: 4.625 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service entrance installations
• Light commercial and small business facilities
• Multi-unit residential properties and condominiums
• Professional offices and retail establishments
• Agricultural and farm building electrical systems
• Municipal and institutional building services

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather resistance rating. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor environments, while the fiberglass with resin insulation system provides superior electrical safety and moisture protection for years of dependable service.
