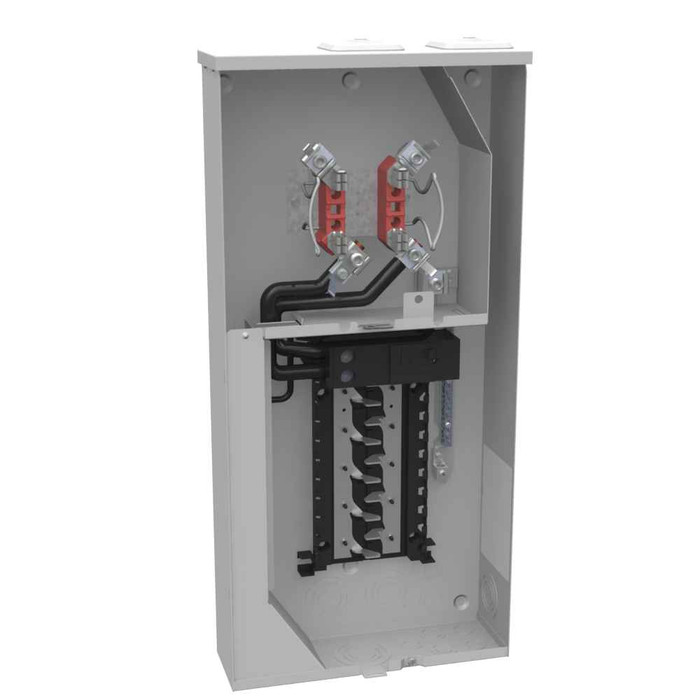

Milbank U5268–U5269 4 Terminal Meter Socket - Ringless & Ring Type, Dual Small Closing Plates with 200A Main Breaker and 20 Branch Circuits

Milbank 200A Meter Socket with Main Breaker and Load Center - 4 Terminal, 20 Branch Circuits, Type 3R Enclosure

(No reviews yet) Write a Review

Model: U5268-XTL-200-KK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,591.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Meter Socket with Main Breaker and Load Center

Professional electrical metering and distribution solution with integrated main protection

The Milbank 200A Meter Socket with Main Breaker and Load Center delivers comprehensive electrical service entrance capabilities in a single integrated unit. This professional-grade meter socket features 200 continuous ampere rating with one 200A main breaker and accommodates 20 branch circuits for complete load distribution. Built with G90 galvanized steel construction and powder coat finish in a Type 3R rated enclosure, this unit provides reliable outdoor performance for residential and commercial applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable capacity for modern electrical demands
  • Integrated Main Breaker Protection: One 200A main breaker provides essential overcurrent protection and service disconnect capability
  • 20 Branch Circuit Capacity: Accommodates comprehensive load distribution for complete electrical panel functionality
  • Type 3R Weather Rating: Engineered for outdoor installation with protection against rain, sleet, and ice formation
  • 4 Terminal Meter Socket: Professional metering interface compatible with standard utility meter installations
  • Flexible Cable Entry: Supports both overhead and underground service connections for versatile installation options
  • UL Listed Construction: Meets rigorous safety standards for professional electrical installations

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Twin Small Closing Plates
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Number Branch Circuits: 20
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 30 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14.125W x30H
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 14.125 IN

Professional Applications

  • Residential Service Entrance Applications
  • Small Commercial Electrical Services
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail and Light Commercial Facilities
  • Utility Metering and Distribution Systems

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed construction and Type 3R weather protection for long-term outdoor performance. The G90 galvanized steel construction with powder coat finish ensures durability against environmental conditions, while the comprehensive 20 branch circuit capacity and integrated main breaker protection provide complete electrical service entrance functionality in a single professional unit.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Twin Small Closing Plates
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
One 200 Ampere Main Breaker
Number Branch Circuits:
20
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
30 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14.125W x30H
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14.125 IN
Department:
Electrical
Product Subgroup:
Panelboards & Load Centers
Insulation Type:
Glass Polyester
Hub Style:
Twin Small Closing Plates
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Number of Terminations:
4
Product Type:
Load Center
Product Group:
Power Distribution

Milbank U5268-XTL-200-KK – Frequently Asked Questions

1) Will a Milbank U5268-XTL-200 meter main work on a 200A single phase 240V residential service?
That is exactly what it is built for. The U5268-XTL-200 is a single position, 4 terminal meter socket rated 200 continuous amperes, 1 phase, 60 Hertz, up to 240 volts AC, with one 200 amp main breaker and a 20 branch circuit load center in the same enclosure. It covers a standard 120/240V single phase service entrance and disconnect in one can. Confirm the 4 jaw socket matches your utility's meter requirement, since 4 terminal is a single phase self contained configuration.
2) Should I order the ringless or ring type version of the Milbank U5268 meter socket?
That is dictated by your serving utility, not by the job. The ringless configuration is ordered as U5268-XTL-200; the ring type equivalent with the same 200A main and 20 branch circuits is U5269-XTL-200. Call the utility before you buy, because they will refuse to set a meter in the wrong cover style.
3) Does the Milbank U5268 meter main come with a horn bypass?
Only on the KK suffix versions. The base U5268-XTL-200 is ringless without bypass. If the utility requires lever or horn bypass so the meter can be pulled under load, order U5268-XTL-200-KK, or U5268-XTL-200-KK-SSH if you also want stainless steel hardware for coastal or corrosive exposure.
4) Can this Milbank meter main be mounted outdoors on an exterior wall?
Yes. It is a Type 3R enclosure, UL Listed, in G90 galvanized steel with a powder coat finish, and it is surface mount. Type 3R gives you outdoor protection against rain, sleet and ice formation, which is the normal rating for a wall mounted service entrance.
5) What size service conductors will land in this 200A Milbank meter main?
Both line and load side terminals take 6 AWG through 350 kcmil, and they are lay in type lugs, so you can drop the conductor in rather than thread it through. That range covers the usual 4/0 aluminum or 2/0 copper used on a 200 amp service, plus parallel-free 250 and 350 kcmil aluminum runs on longer laterals.
6) How much wall space do I need for the Milbank U5268 meter main?
Plan on 30 inches high by 14.125 inches wide, with 4.5 inches of depth off the wall. Overall listed size is 4.5L x 14.125W x 30H inches. Leave the NEC required working clearance in front of it, since the unit contains the service disconnect.
7) Can this Milbank meter main be fed from an underground lateral, or is it overhead only?
Either. Cable entry is rated for overhead or underground service. For an overhead drop you open the hub opening and fit a weatherproof hub; the unit ships with twin small closing plates so the unused hub openings stay sealed for an underground feed.
8) Does this meter main accept a utility barrel lock?
Provision is there on every version: a 7/8 inch knockout with an angle bracket for a barrel lock. If you want the barrel lock bracket configuration called out on the order for a utility that inspects for it, order U5268-XTL-200-KK-BLG, which combines horn bypass with the barrel lock and bracket.
9) Is a ground bar included, or do I have to buy one for this Milbank panel?
A ground bar is included as the equipment ground provision, so you can land equipment grounding conductors without adding a kit. Note that as a service entrance enclosure the neutral is bonded at this point; branch circuit grounds go to the ground bar.
10) Is 20 branch circuits enough for a whole house, or should I look at a larger panel?
Twenty branch circuit spaces in the load center section handles a typical single family home or a small commercial tenant space. If you are feeding a multi-unit building or expect heavy add-ons like EV charging plus electric heat, you will run out of spaces and should either plan on a separate subpanel fed from this unit or step up to a meter main with more circuits. There are no factory receptacles in this enclosure, so a GFCI service outlet has to be provided separately.
