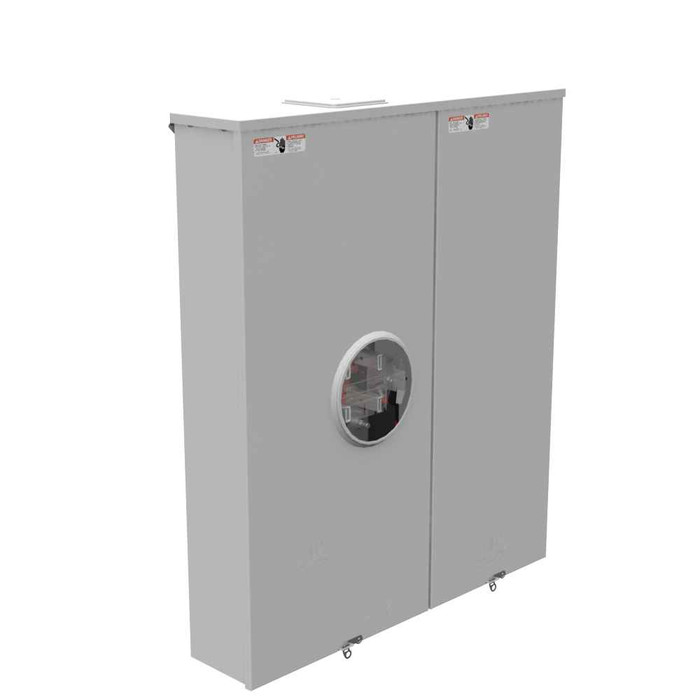

Milbank 4 Terminal Ringless Meter Socket with Dual 200A Main Breakers and 24 Branch Circuits - Lever Bypass Load Center

Milbank 4 Terminal Ringless Meter Socket with Dual 200A Main Breakers and 24 Branch Circuits - Lever Bypass Load Center

Professional meter socket with integrated main breaker protection and load center distribution

The Milbank 4 Terminal Ringless Meter Socket delivers comprehensive electrical service with dual 200 ampere main breakers and 24 branch circuit capacity. This 1 phase, 240V system features lever bypass provision for safe maintenance operations and accommodates overhead, underground, and side wireway cable entry methods. Built with G90 galvanized steel construction and powder coat finish for reliable outdoor performance in Type 3R rated applications.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Provides robust capacity for demanding residential and light commercial electrical service requirements.
• Dual 200A Main Breakers: Offers redundant protection and flexible load distribution with two independent 200 ampere main breaker circuits.
• 24 Branch Circuit Capacity: Enables comprehensive distribution for multiple loads and circuits in a single integrated unit.
• Lever Bypass Provision: Allows safe meter maintenance and service operations without interrupting electrical service to critical loads.
• Type 3R Enclosure Rating: Ensures reliable outdoor operation with protection against rain, sleet, and ice formation.
• G90 Galvanized Steel Construction: Delivers long-term durability with corrosion-resistant galvanized steel and protective powder coat finish.
• UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket With Main And Load Center
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead and Underground and Side Wireway
• Departent: Electrical
• Equipment Ground: 3 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Load Side Wire Range: 1 AWG - 300 kcmil
• Main Breaker Size: Two 200 Ampere Main Breakers
• Number Branch Circuits: 24
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 2
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: MMHD
• Product Height: 35 IN
• Product Length: 5.938 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.938L x 29.5W x35H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 29.5 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service entrance installations requiring meter socket and main breaker protection
• Multi-unit residential properties with centralized electrical distribution requirements
• Light commercial facilities needing integrated meter socket and load center functionality
• Retrofit applications where combined meter socket and distribution panel installation is preferred
• Professional electrical installations requiring lever bypass capability for safe maintenance operations
• Outdoor electrical service applications requiring Type 3R weather protection

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R rated construction designed for long-term outdoor performance. The G90 galvanized steel construction with powder coat finish ensures durability in demanding environmental conditions, while the comprehensive 24 branch circuit capacity and dual main breaker configuration provide professional-grade electrical distribution for residential and light commercial applications.
