Milbank Bolt-On Wire Connector...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$33.75

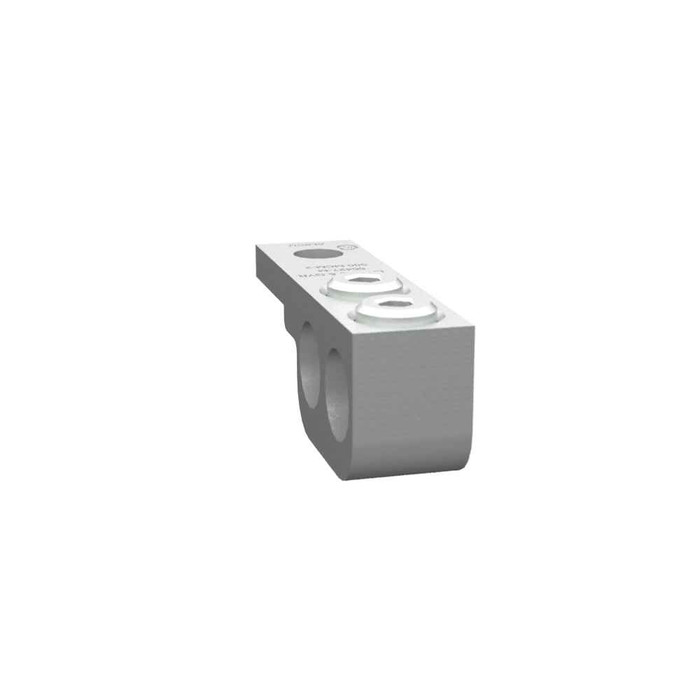

Milbank Bolt-on Type Lugs, 4 Terminals, 1Ø3W Connector Kits

Milbank Bolt-On Wire Connector Lugs 4 Terminal 1Ø3W Aluminum Metering Kit

(No reviews yet) Write a Review

Model: Z705456-AC

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.75
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Bolt-On Wire Connector Lugs 4 Terminal 1Ø3W Aluminum Metering Kit

Professional metering accessory for reliable electrical connections

Milbank Bolt-On Wire Connector Lugs provide professional-grade electrical connections for metering applications. This 4-terminal, single-phase 3-wire connector kit features aluminum construction with mechanical connections, designed for conductors ranging from 6 AWG to 350 kcmil. UL Listed for safety and rated for up to 600 volts AC with 75°C temperature rating, these stud-mounted lugs deliver dependable performance in electrical metering installations.

Professional Features & Benefits

  • 6 AWG to 350 kcmil Conductor Range: Accommodates a wide variety of wire sizes for versatile installation flexibility
  • 600V AC Voltage Rating: Suitable for standard electrical distribution systems with reliable voltage handling
  • 75°C Temperature Rating: Maintains performance integrity under elevated operating temperatures
  • Aluminum Construction: Provides corrosion resistance and lightweight durability for long-term service
  • Mechanical Connection: Ensures secure, reliable conductor termination without special tools
  • UL Listed: Meets rigorous safety standards for professional electrical installations
  • Stud Mounting: Facilitates secure installation and proper electrical contact

Technical Specifications

  • Application: Metering Accessory
  • Brand Name: Milbank
  • Conductor Range: 6 AWG to 350 kcmil
  • Connection: Mechanical
  • Departent: Electrical
  • Insulation: None
  • Product Family Code: MSMC
  • Product Material: Aluminum
  • Product Mounting: Stud
  • Product Type: Wire Connector
  • Standard: UL Listed
  • Temperature Rating: 75 Degrees Celsius
  • Unspsc Number: 39121421
  • Voltage Rating: Up to 600 Volts Alternating Current

Professional Applications

  • Electrical Metering Installations
  • Commercial Service Connections
  • Industrial Distribution Systems
  • Utility Service Equipment
  • Multi-Meter Socket Applications
  • Professional Electrical Contracting

Why Choose Milbank Quality?

Milbank wire connector lugs deliver proven reliability with UL Listed safety certification and professional-grade aluminum construction. The 75°C temperature rating and 600V AC capacity ensure dependable performance in demanding electrical applications, backed by Milbank's commitment to quality electrical components.

Manufacturer Resources

Product Specs

Application:
Metering Accessory
Brand Name:
Milbank
Wire Size:
6 AWG to 350 kcmil
Connection:
Mechanical
Product Family Code:
MSMC
Product Type:
Wire Connector
Standards:
UL Listed
Temperature Rating:
75 Degrees Celsius
Unspsc Number:
39121421
Voltage Rating:
Up to 600 Volts Alternating Current
Product Material:
Aluminum
Product Mounting:
Stud
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Installation Category:
Stud
Connection Type:
Mechanical
Product Details:
Wire Connector
Product Group:
Wire Connectors & Terminals

Milbank Z705456-AC – Frequently Asked Questions

1) Is this Milbank lug kit right for a single-phase 3-wire meter socket?
Yes. It is a 4-terminal, single-phase 3-wire connector kit built as a metering accessory, which is the arrangement used on a standard 120/240V residential or light commercial meter socket. For three-phase service equipment you need a different terminal configuration.
2) Can I use these lugs on a 600 volt service?
Rated up to 600 volts AC, with a 75 degree C temperature rating. That covers standard 120/240V and 277/480V distribution equipment. Size your conductors from the 75 degree C column of the ampacity table, since the lug rating is the limiting factor at the termination.
3) Which size Milbank lug kit do I order, Z703917-AC, Z705420-AC or Z705456-AC?
Three kit sizes are offered and they differ by physical envelope: Z703917-AC at 7.12 x 10.5 x 10.5, Z705420-AC at 1.5L x 2.875 x 3.938, and Z705456-AC at 1.25L x 1.908 x 2.875. Match the kit to the space and stud spacing in your meter socket. All three carry the same 6 AWG to 350 kcmil conductor range and 600V rating.
4) Are these aluminum lugs safe to land copper conductors in?
The lug bodies are aluminum, which is standard for service equipment terminations and holds up against corrosion in outdoor enclosures. Aluminum mechanical lugs in this class are commonly dual-rated for copper and aluminum conductors, so confirm the AL/CU marking stamped on the lug body before landing copper, and use an approved joint compound on aluminum conductors.
5) How do these Milbank lugs mount inside the enclosure?
They are stud-mounted and bolt on, so they fasten to the existing threaded studs or bus provisions in the meter socket rather than clamping to a bus edge. The kit is meant as a replacement or field addition to Milbank metering equipment that already has the stud landings.
6) Do these lugs come insulated or do I need a cover?
No insulation is included; these are bare lug bodies. In an energized meter socket the enclosure and any barriers or dead-front cover provide the protection, so plan on the equipment's own cover rather than boot or sleeve insulation on the lug itself.
7) What UNSPSC code should I use for these lugs on a purchase order?
Milbank's bolt-on wire connector lug kits classify under UNSPSC 39121421. Useful if you are loading them into a procurement system or building a standardized MRO catalog line for meter socket parts.
