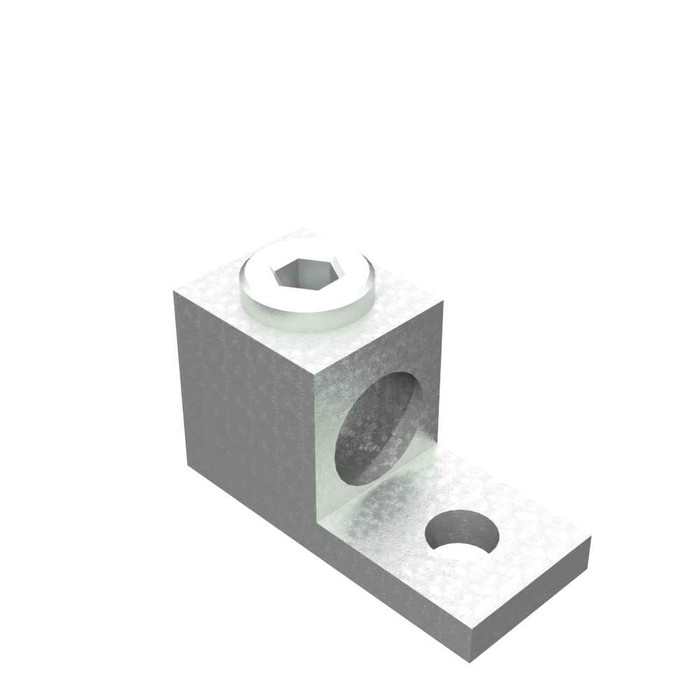

Milbank Lugs - Single and Twin Conductor Lugs, .375" Stud Hole

Milbank Aluminum Wire Connector Lugs with 0.375" Stud Hole - Single and Twin Conductor Kit

(No reviews yet) Write a Review

Model: K5873

In Stock (leaves warehouse same day if ordered before 3pm ET)

$25.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Aluminum Wire Connector Lugs with 0.375" Stud Hole - Single and Twin Conductor Kit

Professional metering accessory for reliable electrical connections

Milbank Aluminum Wire Connector Lugs deliver professional-grade electrical connections for metering applications. This single and twin conductor lug kit features aluminum construction with mechanical connection design and 0.375" stud hole mounting. UL Listed for up to 600 volts alternating current with 75 degrees Celsius temperature rating, these lugs provide reliable performance for professional electrical installations.

Professional Features & Benefits

  • 600V AC Rating: Handles standard electrical system voltages for versatile metering applications
  • Aluminum Construction: Lightweight yet durable material provides excellent conductivity and corrosion resistance
  • Mechanical Connection: Secure attachment method ensures reliable long-term electrical contact
  • 0.375" Stud Hole: Standard mounting dimension for compatibility with common electrical hardware
  • 75°C Temperature Rating: Operates safely in elevated temperature environments typical of electrical enclosures
  • UL Listed: Meets rigorous safety standards for professional electrical installations
  • Single & Twin Conductor Design: Accommodates different wiring configurations for flexible installation options

Technical Specifications

  • Application: Metering Accessory
  • Brand Name: Milbank
  • Connection: Mechanical
  • Departent: Electrical
  • Insulation: None
  • Product Family Code: MSMC
  • Product Height: 7 IN
  • Product Material: Aluminum
  • Product Mounting: Stud
  • Product Type: Wire Connector Kit
  • Standard: UL Listed
  • Temperature Rating: 75 Degrees Celsius
  • Unspsc Number: 39121421
  • Voltage Rating: Up to 600 Volts Alternating Current
  • Width: 5 IN

Professional Applications

  • Electrical Metering Installations
  • Commercial Electrical Systems
  • Industrial Power Distribution
  • Utility Connection Points
  • Professional Electrical Panels
  • Service Entrance Equipment
  • Multi-Unit Electrical Systems

Why Choose Milbank Quality?

Milbank wire connector lugs provide dependable electrical connections backed by UL Listed certification and professional-grade aluminum construction. The 75 degrees Celsius temperature rating and 600V AC capacity ensure reliable performance in demanding electrical environments, making these lugs the trusted choice for professional metering accessory applications.

Manufacturer Resources

Product Specs

Application:
Metering Accessory
Brand Name:
Milbank
Connection:
Mechanical
Product Family Code:
MSMC
Product Height:
7 IN
Product Type:
Wire Connector Kit
Standards:
UL Listed
Temperature Rating:
75 Degrees Celsius
Unspsc Number:
39121421
Voltage Rating:
Up to 600 Volts Alternating Current
Product Material:
Aluminum
Product Mounting:
Stud
Product Width:
5 IN
Department:
Electrical
Product Subgroup:
Lugs & Terminals
Installation Category:
Stud
Connection Type:
Mechanical
Product Details:
Wire Connector Kit
Product Group:
Wire Connectors & Terminals

Milbank K5873 – Frequently Asked Questions

1) Which Milbank K587 lug do I need for 500 kcmil service entrance conductors?
For a single 500 kcmil conductor, the K5873 lug is the one that covers it. Its mechanical range runs 4 AWG through 600 kcmil. The K5874 tops out at 350 kcmil (range 6 through 350 kcmil), and the K5875 is a twin lug limited to 250 through 350 kcmil per barrel, so neither of those will take a 500.
2) What is the difference between the single and twin Milbank lugs in the K587 group?
A single lug takes one conductor per terminal; the twin takes two. The K5873 and K5874 are single conductor (4 to 600 kcmil and 6 to 350 kcmil respectively). The K5875 is the twin version, accepting two conductors in the 250 to 350 kcmil range. Pick the twin only when you are landing parallel feeders on one stud.
3) Do these Milbank lugs come insulated or do I need to tape them?
No insulation is supplied. These are bare mechanical lugs, so any required covering or taping in the enclosure is on the installer. That is normal for landing lugs inside a metered service enclosure where the deadfront and cover provide the barrier.
4) How many lugs come in a Milbank K5875 kit?
One lug per kit. Each of the K587 part numbers, K5873, K5874 and K5875, is sold as a single lug kit, so a three phase plus neutral landing needs four kits ordered.
5) Can I use these lugs on a 480V service?
Yes. The Milbank K587 lugs carry a rating up to 600 volts AC, which covers 120/240, 208Y/120 and 480Y/277 systems. The 75 degree C terminal rating is the number to size conductors against inside the enclosure.
6) Are Milbank K587 lugs UL Listed for a permitted service installation?
UL Listed, yes, at up to 600 volts AC with a 75 degree C temperature rating. That is what an inspector will look for on a metering accessory landing service entrance conductors.
7) What are these Milbank K587 lugs actually used for?
They are metering accessories, the mechanical lugs that land incoming or outgoing conductors on the stud terminals inside Milbank meter sockets and metering equipment. Typical use is service entrance and multi-unit metering, commercial panels and utility connection points.
