Milbank PB-014 600V Underground Termination Boxes

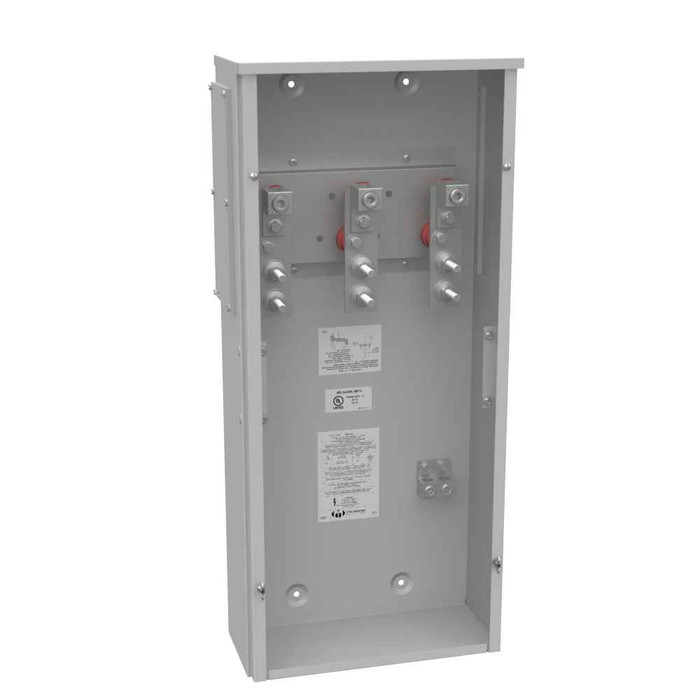

Milbank 600V Underground Termination Box 400A Single Position G90 Galvanized Steel

(No reviews yet) Write a Review

Model: PB-014

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,515.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 600V Underground Termination Box 400A Single Position G90 Galvanized Steel

Professional Underground Power Distribution & Termination Solution

The Milbank 600V Underground Termination Box delivers reliable single-position power distribution with up to 400 ampere capacity and 600V AC rating. Constructed from G90 galvanized steel with ANSI 61 gray powder coat finish and Type 3R enclosure rating, this termination cabinet provides durable protection for underground electrical connections. Features 1/2 inch stud line side connections and 4 AWG to 600 kcmil load side lugs for versatile conductor compatibility with both copper and aluminum materials.

Professional Features & Benefits

  • 400 Ampere Rating: Handles substantial electrical loads for demanding underground distribution applications
  • 600V AC Voltage Rating: Supports standard commercial and industrial voltage requirements with reliable performance
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and structural integrity for long-term underground service
  • Type 3R Enclosure Rating: Delivers weather-resistant protection against rain, sleet, and ice formation in outdoor installations
  • 50,000 Ampere Short Circuit Rating: Ensures safe operation under fault conditions with robust electrical protection
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations
  • Dual Conductor Compatibility: Accommodates both copper and aluminum conductors for flexible installation options

Technical Specifications

  • Amperage Rating: Up to 400 Ampere
  • Application: Termination Cabinet
  • Brand Name: Milbank
  • Conductor Material: Copper and Aluminum
  • Departent: Electrical
  • Insulation Material: Polypropylene
  • Jacket Material: No Jacket Material
  • Miscellaneous: No Knockouts
  • Number Of Conductors: 1
  • Number Of Meter Positions: 1 Position
  • Phase: 1
  • Product Color: ANSI 61 Gray
  • Product Family Code: TCAN
  • Product Finish: Powder Coat Finish
  • Product Height: 36.063 IN
  • Product Material: G90 Galvanized Steel
  • Product Type: Line to Load Distribution
  • Short Circuit Rating: 50000 Ampere
  • Standard: UL Listed;Type 3R
  • Temperature Rating: No Temperature Rating
  • Unspsc Number: 26121541
  • Voltage Rating: Up to 600 Volts Alternating Current
  • Width: 16.125 IN
  • Wire Connection: 1/2 Inch Stud Line Side and 4 AWG to 600 kcmil Load Side Lugs

Professional Applications

  • Underground Residential Service Connections
  • Commercial Building Power Distribution
  • Industrial Facility Electrical Terminations
  • Multi-Unit Property Power Systems
  • Municipal Infrastructure Projects
  • Utility Service Installations
  • Professional Electrical Contracting

Why Choose Milbank Quality?

Milbank termination boxes deliver proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-lasting performance in demanding underground applications, backed by professional-grade materials and manufacturing standards.

Manufacturer Resources

Product Specs

Amperage Rating:
Up to 400 Ampere
Application:
Termination Cabinet
Brand Name:
Milbank
Conductor Material:
Copper and Aluminum
Insulation Material:
Polypropylene
Jacket Material:
No Jacket Material
Miscellaneous:
No Knockouts
Number Of Conductors:
1
Number Of Meter Positions:
1 Position
Phase:
1
Product Family Code:
TCAN
Product Finish:
Powder Coat Finish
Product Height:
36.063 IN
Product Type:
Line to Load Distribution
Short Circuit Rating:
50000 Ampere
Standards:
UL Listed;Type 3R
Temperature Rating:
No Temperature Rating
Unspsc Number:
26121541
Voltage Rating:
Up to 600 Volts Alternating Current
Product Color:
ANSI 61 Grey
Product Material:
G90 Galvanized Steel
Amps:
400
Product Width:
16.125 IN
Department:
Electrical
Product Subgroup:
Electrical
Short Circuit Current:
50000 amperes
Number of Phases:
1
Product Details:
Line To Load Distribution
Product Group:
Metering & Service Entrance

Milbank PB-014 – Frequently Asked Questions

1) What size conductors can I land in the Milbank PB-014 termination box?
Load side lugs on the PB-014 take 4 AWG through 600 kcmil, and they're rated for both copper and aluminum, so you can pull in aluminum URD or copper service conductors without changing lugs. Line side is a 1/2 inch stud connection. That range covers most 400 amp underground services, including parallel-free single 600 kcmil runs.
2) Can a Milbank underground termination box be mounted outdoors?
Yes. The PB-014 is a Type 3R enclosure in G90 galvanized steel with an ANSI 61 grey powder coat, which is the standard outdoor rating for rain, sleet and ice on a service pedestal or building exterior wall. Type 3R is not a submersible or hosedown rating, so it isn't for a below-grade vault or a washdown area.
3) What is the difference between the PB-014 and PB-014-NK?
Knockouts. The PB-014 ships with knockouts already provided; the PB-014-NK is the no-knockout version, a blank box you punch yourself where the conduit actually lands. If your conduit stub-up is already in the ground and won't line up with factory knockouts, order the NK and cut to suit. Everything else, 400A, 600V, Type 3R, single position, is the same on both.
4) Does the Milbank PB-014 have enough short circuit rating for a 400A service?
It carries a 50,000 ampere short circuit rating at up to 600V AC, which covers the available fault current on most commercial and multi-family services fed from a pad-mount transformer. If your utility gives you an available fault current above 50 kA at the terminals, this box is not the right enclosure for that point in the system.
5) Is this a meter socket or just a termination box?
It's a termination cabinet, not a meter socket. The PB-014 is a single position line to load distribution box: underground conductors come in, land on lugs, and feed out. There is no meter jaw assembly and no metering provision. If you need the utility to meter at this point, you want a meter socket or a meter pedestal instead.
6) Will the Milbank PB-014 work on a three phase service?
No. The PB-014 is a single phase box with one conductor position per termination. For a three phase underground service you need a three phase termination cabinet or a multi-position trough, not this one.
7) Do I need to order separate lugs for the Milbank PB-014 termination box?
No separate lugs needed on the load side. The box comes with 4 AWG to 600 kcmil load side lugs already installed, rated for copper or aluminum. The line side is a 1/2 inch stud, so the connection there depends on the terminal or lug on the incoming utility conductors. What you will still need to supply is the conduit fittings and hubs, plus the mounting hardware for your wall or rack.
8) Is the Milbank underground termination box UL Listed for a permitted commercial job?
Yes, the PB-014 is UL Listed and rated Type 3R. That is what an inspector looks for on outdoor service equipment. For facility standardization it also carries UNSPSC 26121541, which helps if you're loading it into a procurement system alongside other distribution gear.
9) Will a galvanized Milbank termination box hold up in a coastal or industrial location?
The shell is G90 galvanized steel with a powder coat finish over it, so you get the zinc layer plus a painted barrier, which is the normal spec for outdoor service equipment exposed to weather. For heavy salt spray or aggressive chemical exposure, a stainless or non-metallic 4X enclosure is the better call, since 3R galvanized is built for weather rather than corrosion immersion.
