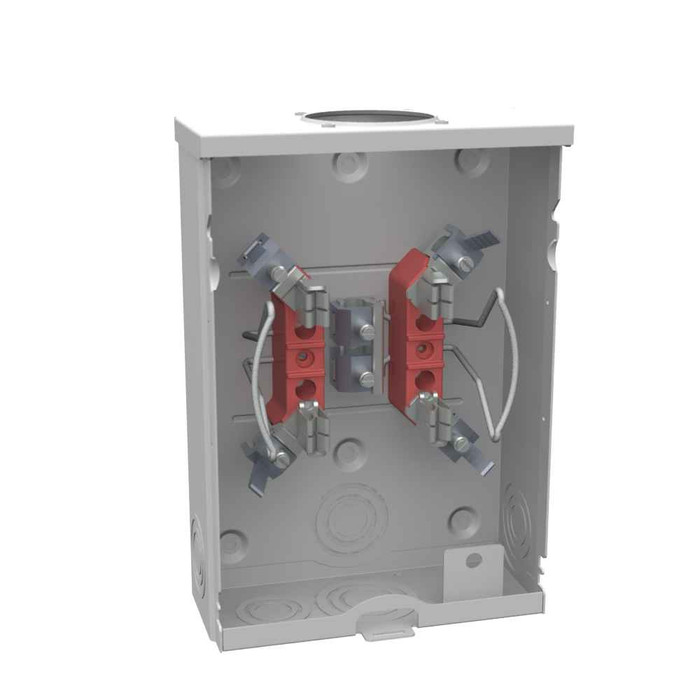

Milbank Single Position Sockets 125 Amps 4 Terminal Ringless Horn Bypass

Milbank 125 Amp Single Position Ringless Meter Socket with Horn Bypass - 1 Phase 600V

(No reviews yet) Write a Review

Model: U7487-RL-TG-KK-BLG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$105.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 125 Amp Single Position Ringless Meter Socket with Horn Bypass - 1 Phase 600V

Professional electrical metering solution with horn bypass capability

The Milbank 125 Amp Single Position Ringless Meter Socket delivers reliable electrical metering with professional horn bypass functionality. Engineered with G90 galvanized steel construction and powder coat finish, this 1 phase, 600V meter socket provides durable performance for overhead or underground cable entry applications. The 4 terminal design with lay-in terminals accommodates 6-2/0 AWG wire ranges for both line and load side connections.

Professional Features & Benefits

  • 125 Continuous Ampere Rating: Provides robust current handling capacity for residential and light commercial electrical service applications.
  • Horn Bypass Provision: Enables temporary power continuity during meter maintenance or replacement without service interruption.
  • G90 Galvanized Steel with Powder Coat Finish: Delivers superior corrosion resistance and long-lasting durability in outdoor installations.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather-resistant performance for outdoor applications.
  • Overhead or Underground Cable Entry: Versatile installation options accommodate various service entrance configurations.
  • Glass Polyester Insulation: Provides reliable electrical isolation and enhanced safety performance.
  • Surface Mount Design: Simplifies installation with straightforward mounting configuration.

Technical Specifications

  • Amperage Rating: 125 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 6 - 2/0 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T12
  • Product Height: 11.5 IN
  • Product Length: 3.313 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 3.313L x 8W x11.5H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Residential electrical service entrance installations
  • Light commercial metering applications
  • Multi-unit residential properties
  • Professional office buildings
  • Retail establishments requiring reliable metering
  • Service upgrade and replacement projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and robust G90 galvanized steel construction. The professional-grade powder coat finish and glass polyester insulation ensure long-term performance in demanding electrical service applications.

Manufacturer Resources

Product Specs

Amperage Rating:
125 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Overhead or Underground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 - 2/0 AWG
Load Side Wire Range:
6 - 2/0 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T12
Product Height:
11.5 IN
Product Length:
3.313 IN
Product Size:
3.313L x 8W x11.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
125
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U7487-RL-TG-KK-BLG – Frequently Asked Questions

1) Will a Milbank 125 amp ringless meter socket be accepted by my utility?
Utility approval is the first thing to settle on a Milbank 125 amp ringless horn bypass socket, because the same 4 terminal socket is built to different utility acceptance lists. Four approvals are covered: DUQ (U7274-YL-KK), PECO (U7487-RL-KK-BL), FE/AEP/PPL (U7487-RL-TG-KK-BLG), and FE/PPL (U7487-YL-TG-KK-BLG). Order the model that matches the serving utility on your job, since the meter will not be set on an unapproved can.
2) Can I land 2/0 aluminum SE cable in this 125 amp meter socket?
Both line and load lugs take 6 through 2/0 AWG, and they are lay-in terminals, so 2/0 service entrance conductors land without an adapter and the conductor drops in from the side rather than being threaded through a closed hole. That range covers a typical 100 or 125 amp residential service. Anything smaller than 6 AWG or larger than 2/0 is outside the lug range.
3) Does this Milbank meter socket have a main breaker or disconnect in it?
No. It is a meter socket only, with no main breaker and no receptacles, so the service disconnect has to be provided downstream, typically in the panel it feeds. If you need metering and the disconnect in one enclosure, you are looking for a meter main combination instead of this can.
4) Can this meter socket be mounted outside on the side of a building?
Outdoor mounting is what it is built for: UL Listed and Type 3R rated for rain and weather, in G90 galvanized steel with a powder coat finish, and surface mount so it fastens flat to the wall or a meter board rather than recessing into it. Glass polyester holds the jaws. If your spec calls for a flush or semi-flush can in a wall cavity, this surface can is the wrong body.
5) What is horn bypass and do I need it on a residential meter socket?
Horn bypass lets a lineman keep power on the load while the meter is pulled, using a bypass horn inside the can instead of interrupting service. On this Milbank 4 terminal socket that means meter changes and testing happen without dropping the customer. Many utilities specify bypass on service equipment they maintain; a non-bypass socket is cheaper but the meter pull kills power. Check which the serving utility requires before you buy, because this is a horn bypass can.
6) Will this socket work for an underground service lateral, or is it overhead only?
Either. Cable entry is rated for overhead or underground, so the same can serves a weatherhead drop or a lateral coming up from a trench. With lay-in lugs taking 6 to 2/0 AWG on both line and load, the conductors set in from either direction without changing hardware.
