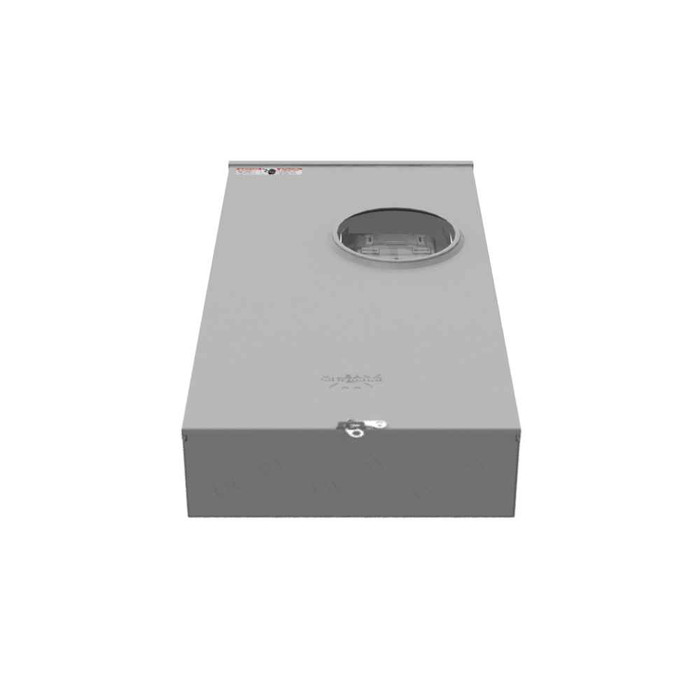

Milbank U1897-X-WI 4 Terminal Ringless Meter Socket Large Closing Plate Wisconsin Area

Milbank 320A Ringless Meter Socket with Lever Bypass and Large Closing Plate - Wisconsin Area

(No reviews yet) Write a Review

Model: U1897-X-WI

In Stock (leaves warehouse same day if ordered before 3pm ET)

$848.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 320A Ringless Meter Socket with Lever Bypass and Large Closing Plate - Wisconsin Area

Professional 320 Amp Meter Socket for Wisconsin Area Applications

The Milbank 320A Ringless Meter Socket delivers reliable single-phase electrical metering with 320 continuous ampere capacity and 600V AC rating. Featuring durable G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface-mount meter socket provides professional-grade performance for Wisconsin area installations. The unit includes lever bypass provision, 4-terminal configuration with 3/8 inch studs, and large closing plate for comprehensive underground cable entry applications.

Professional Features & Benefits

  • 320 Continuous Ampere Rating: Handles high-capacity electrical loads with reliable current-carrying performance for demanding applications.
  • Lever Bypass Provision: Enables safe meter removal and maintenance without interrupting electrical service to the facility.
  • Type 3R Enclosure Rating: Provides weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability with professional powder coat finish.
  • 4-Terminal Ringless Design: Simplifies installation with secure 3/8 inch stud terminals and eliminates need for meter rings.
  • UL Listed Certification: Ensures compliance with safety standards and electrical code requirements for professional installations.
  • Wisconsin Area Specification: Engineered to meet specific regional utility requirements and installation standards.

Technical Specifications

  • Amperage Rating: 320 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 3 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T32
  • Product Height: 30 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 15W x30H
  • Product Type: Ringless Meter Socket
  • Special Features: Wisconsin Area
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 15 IN

Professional Applications

  • Residential High-Capacity Service Entrances
  • Commercial Building Electrical Systems
  • Multi-Unit Residential Properties
  • Industrial Facility Metering
  • Wisconsin Area Utility Connections
  • Underground Service Applications
  • Professional Electrical Contractor Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the lever bypass provision and 4-terminal design provide professional installation flexibility for Wisconsin area electrical systems.

Manufacturer Resources

Product Specs

Amperage Rating:
320 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Underground
Equipment Ground:
3 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T32
Product Height:
30 IN
Product Length:
4.844 IN
Product Size:
4.844L x 15W x30H
Product Type:
Ringless Meter Socket
Special Features:
Wisconsin Area
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
320
Product Width:
15 IN
Department:
Electrical
Product Subgroup:
Electrical

Milbank U1897-X-WI – Frequently Asked Questions

1) Will the Milbank U1897-X-WI meter socket be accepted by Wisconsin utilities?
The U1897-X-WI is built to the Wisconsin area utility specification, which is what the WI suffix in the model number denotes. It is a 4-terminal, single-position ringless socket rated 320 continuous amps at 600V AC, 60 Hz, with lever bypass. Utilities outside Wisconsin publish their own approved-socket lists, so the WI variant is the one to order for a Wisconsin service.
2) Does this Milbank 320A meter socket come with a main breaker?
No. The U1897-X-WI is a meter socket only, with no main breaker and no breaker space. You will need a separate service disconnect downstream, which on a 320A (400A rated) service is typically two 200A panels or a separate main disconnect. There is one meter position and no receptacles.
3) Is this meter socket set up for underground service or overhead?
Underground. Cable entry on the U1897-X-WI is underground, and it ships with a large closing plate covering the hub opening. For an overhead drop you would need a socket configured for a hub and a weatherhead riser instead.
4) What size conductors land in this socket and what are the terminals?
Line and load connections are 3/8 inch studs, so you lug to them with compression or mechanical terminals sized for your 320A service conductors, typically parallel sets on a 400A-class residential service. Equipment grounding is a 3 barrel ground lug.
5) Is a 4-terminal socket right for my service, or do I need 5-jaw?
The U1897-X-WI is 4 terminal, single phase, 600V AC, which covers a standard 120/240V single-phase residential or small commercial service. A 5-jaw socket is used for network or three-wire network metering that requires the extra neutral-sensing jaw, so if your utility specified 5-jaw this is not the socket to order.
6) How big is the Milbank U1897-X-WI socket and how does it mount?
It measures 4.844 x 15 x 30 inches (L x W x H) and is surface mounted to the wall. Lay out at least 30 inches of vertical clear wall and confirm meter center height with the serving utility before you set the anchors.
7) Can the meter be pulled without killing power to the building?
Yes. The lever bypass lets the meter be removed and replaced while the service stays energized, which is what utilities and meter techs want on a 320A single-phase service. The ringless cover design also means no sealing ring to deal with when the cover comes off.
8) Is this meter socket rated for outdoor installation in Wisconsin winters?
It carries a Type 3R rating and is UL Listed, so it is suited to outdoor wall mounting with rain and sleet exposure. The body is G90 galvanized steel with a powder coat finish for corrosion resistance, and internal insulation is glass polyester.
9) What is the Milbank part number for the Wisconsin 320A ringless socket with large closing plate?
Order model U1897-X-WI. It sits in Milbank's 4T32 product family, the 4-terminal 320A group, and the X-WI suffix identifies the Wisconsin area configuration with the large closing plate for underground entry.
