Milbank 200A 1-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$321.89

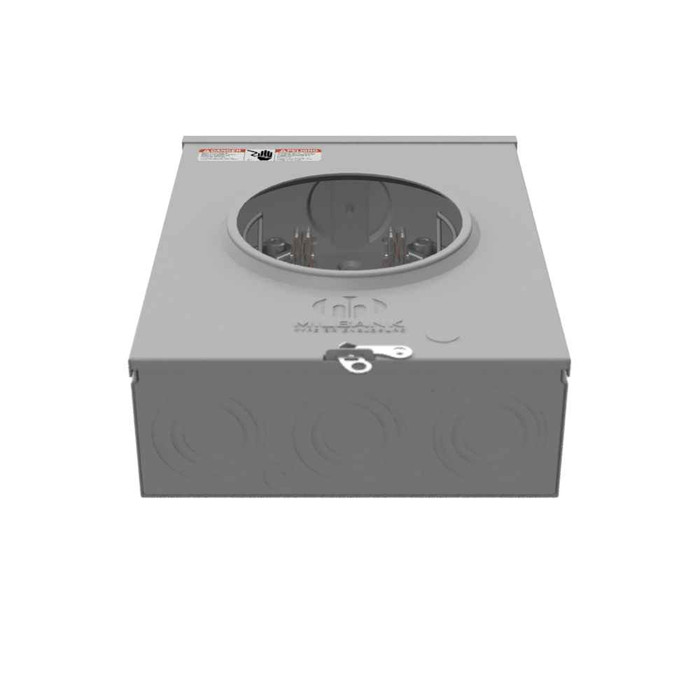

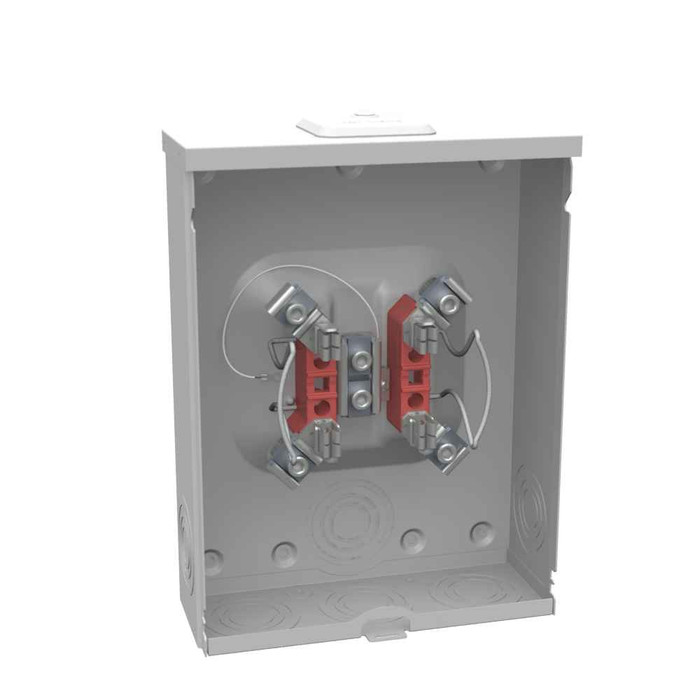

Milbank U1917E-XL-TG 4 Terminal Ringless Meter Socket Small Closing Plate Triplex Ground External Hex

Milbank 200A 1-Phase Ringless Meter Socket with External Hex Nuts and Triplex Ground

(No reviews yet) Write a Review

Model: U1917E-XL-TG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$321.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with External Hex Nuts and Triplex Ground

Professional electrical metering solution with durable galvanized steel construction

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering performance with robust G90 galvanized steel construction and powder coat finish. This surface-mount unit features 4-terminal configuration with lay-in terminals, accommodating 6 AWG to 350 kcmil wire ranges on both line and load sides. The external hex nuts and triplex ground design ensures secure installation and proper grounding for residential and commercial applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for demanding applications
  • G90 Galvanized Steel with Powder Coat Finish: Provides superior corrosion resistance and long-lasting durability in various environmental conditions
  • 4-Terminal Ringless Design: Simplifies meter installation and removal while maintaining secure electrical connections
  • External Hex Nuts: Enables convenient field wiring and maintenance access without compromising connection integrity
  • UL Listed Type 3R Rating: Meets stringent safety standards for outdoor use with protection against rain and ice formation
  • Triplex Ground Configuration: Ensures proper grounding for enhanced electrical safety and code compliance
  • Overhead or Underground Cable Entry: Accommodates flexible installation requirements for various service entrance configurations

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Triplex Ground
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 14.563 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 11W x14.563H
  • Product Type: Ringless Meter Socket
  • Special Features: External Hex Nuts Installed
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 11 IN

Professional Applications

  • Residential Service Entrance Metering
  • Commercial Building Electrical Systems
  • Multi-Unit Property Installations
  • Professional Office Buildings
  • Retail and Light Commercial Facilities
  • Industrial Metering Applications
  • Utility Service Connections

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The glass polyester insulation and professional-grade materials ensure long-term performance and durability in demanding electrical metering applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Triplex Ground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
14.563 IN
Product Length:
4.125 IN
Product Size:
4.125L x 11W x14.563H
Product Type:
Ringless Meter Socket
Special Features:
External Hex Nuts Installed
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
11 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U1917E-XL-TG – Frequently Asked Questions

1) Will the Milbank U1917E-XL-TG meter socket work for a 200A single-phase residential service?
Yes. The Milbank U1917E-XL-TG is a 4-terminal, single-position ringless socket rated 200 continuous amps at 600 VAC, 60 Hz, single phase. That is the standard arrangement for a 120/240V single-phase residential or light commercial service entrance. It has no main breaker and no bypass, so it is a meter socket only, not a meter-main combination.
2) What wire size can I land in the Milbank U1917E-XL-TG meter socket?
Both line and load terminals take 6 AWG through 350 kcmil, and they are lay-in type terminals, so you drop the conductor in rather than threading it through a barrel. That range covers typical 200A service conductors in copper or aluminum, including 4/0 aluminum SE cable and 2/0 copper.
3) Can this Milbank ringless socket be used for both overhead and underground service?
It is built for either. Cable entry is rated overhead or underground, and it ships with a small closing plate for the hub opening. For an overhead drop you remove the closing plate and install the appropriate service entrance hub; for underground you leave the top closed and bring conductors in from the bottom. The hub itself is a separate item.
4) Is the Milbank U1917E-XL-TG rated for outdoor mounting on an exterior wall?
Yes. The enclosure is UL Listed and Type 3R, which is the outdoor rain- and sleet-resistant rating used for exterior service equipment. The body is G90 galvanized steel with a powder coat finish, and it is a surface-mount unit meant to be fastened flat to the wall.
5) Do I need a meter ring or sealing ring with this socket?
No ring is used. This is a ringless design, where the removable cover itself retains and seals the meter, so there is no separate sealing ring to order. Many utilities specify ringless for residential service; check which style your utility requires before ordering, since ringless and ring-type covers are not interchangeable.
6) Does this Milbank socket include overcurrent protection, or do I still need a disconnect?
No protection is included. The socket has no main breaker and no bypass provision, and there are no receptacles in the can. You still need a separate service disconnect or main panel downstream, and if your jurisdiction requires an outdoor emergency disconnect, that is an additional enclosure. If you want metering and a main breaker in one can, you need a meter-main combination instead.
7) Can I use this Milbank ringless socket on a 3-phase service?
No. It is a single-phase, 4-terminal socket. A three-phase self-contained meter needs a 7-jaw socket, so for 3-phase 4-wire service you need a different can. Single-phase 120/240V service with a 4-terminal utility meter is what this one is for.
8) What does the "TG" triplex ground on this Milbank socket mean for my grounding connections?
TG means the socket is furnished with a triplex ground connector, a lug that accepts the bare neutral/messenger of triplex service cable along with the grounding conductor. It saves adding a separate ground lug kit in the can. The equipment ground provision is factory installed.
9) What are the dimensions of the Milbank U1917E-XL-TG meter socket enclosure?
The can measures 4.125 inches deep by 11 inches wide by 14.563 inches high. That footprint matters on tight wall sections and when you are matching an existing mounting pattern or siding cutout on a replacement.
10) Is this socket suitable for a multi-family building where I need several meters?
Only one meter per can. The U1917E-XL-TG is a single-position socket, so a multi-unit building needs one per tenant or a multi-position meter stack or pack. For garden-style properties where each unit has its own exterior service point, individual 200A single-position cans like this one are the usual approach.
11) What do the external hex nuts on the U1917E-XL-TG do?
The hex nuts for the line and load terminals are installed on the outside of the socket, so you can torque the conductor connections from outside the can without reaching around the jaw assembly. Faster to wire and easier to re-torque on a service call.
12) What is the insulation material behind the meter jaws on the Milbank U1917E-XL-TG?
The jaw assembly is mounted on glass polyester insulation, a thermoset material that holds up to heat and tracking at the terminal block. The enclosure around it is G90 galvanized steel with a powder coat finish for corrosion resistance on exterior walls.
