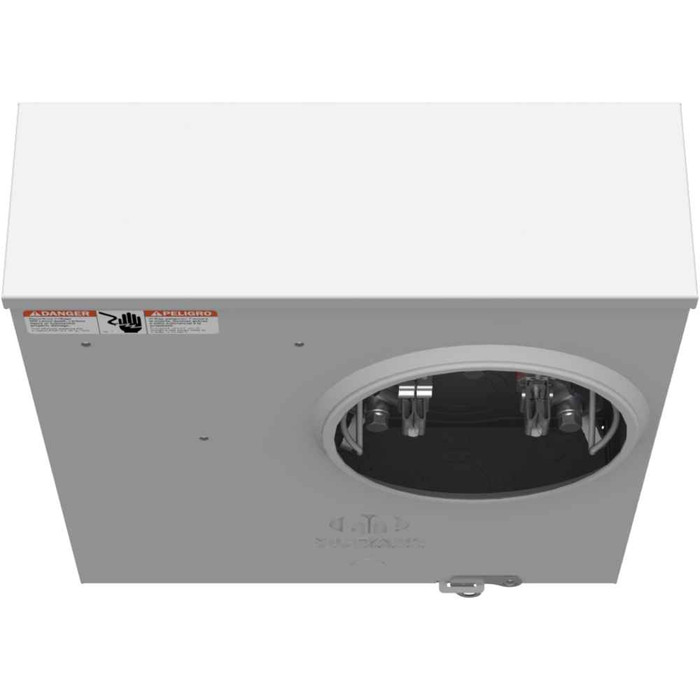

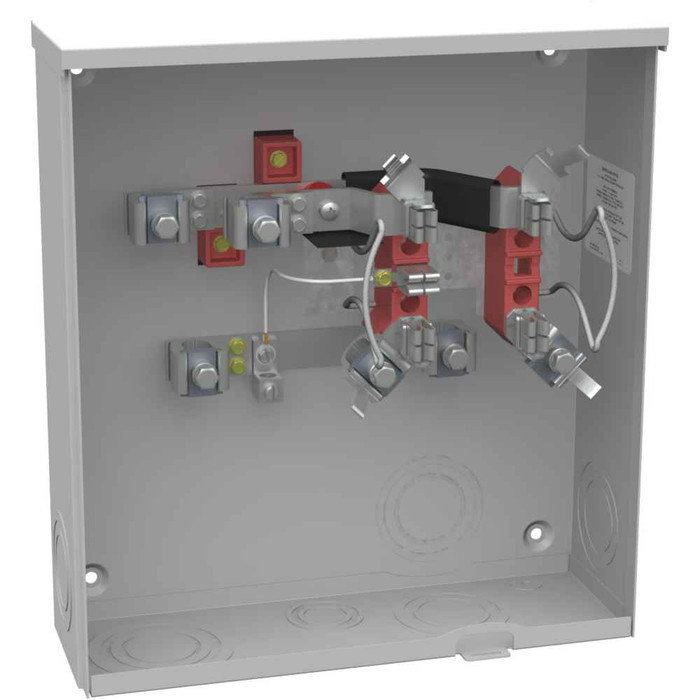

Milbank 200A 1-Phase Ringless Meter Socket with Horn Bypass and 7/8" Barrel Lock Provision

Professional Underground Metering Solution with Enhanced Security Features

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering for underground service applications. Featuring durable G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this professional-grade meter socket provides secure metering with horn bypass capability and integrated barrel lock provision for enhanced security and operational flexibility.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Horn Bypass Provision: Enables temporary power continuity during meter maintenance or replacement without service interruption.
  • 7/8" Barrel Lock Provision: Includes knockout and angle bracket for enhanced security and tamper resistance in outdoor installations.
  • Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and outdoor environmental conditions.
  • G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-term durability in harsh outdoor environments.
  • Underground Cable Entry: Side wireway design accommodates underground service connections with proper cable management and protection.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations and code compliance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Underground with Side Wireway
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 15.25 IN
  • Product Length: 4.5 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.5L x 14W x15.25H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 14 IN

Professional Applications

  • Residential Underground Service Connections
  • Light Commercial Metering Applications
  • Multi-Unit Properties with Individual Metering
  • Professional Office Buildings
  • Retail Establishments
  • Municipal and Utility Service Points
  • Temporary Service Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive wire range accommodation from 6 AWG to 350 kcmil provides installation flexibility for diverse electrical service requirements.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Underground with Side Wireway
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
15.25 IN
Product Length:
4.5 IN
Product Size:
4.5L x 14W x15.25H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
14 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank U3599-O-KK-BLG – Frequently Asked Questions

1) Will the Milbank U3599-O-KK-BLG work for a 200A single-phase residential underground service?
Yes. The U3599-O-KK-BLG is a 200 continuous ampere, single-phase, 5-jaw ringless socket rated 600VAC at 60 Hz, with underground cable entry through a side wireway. That combination is the standard setup for a 200A residential or light commercial underground service drop. One meter position only.
2) Does this Milbank meter socket come with a main breaker or disconnect?
No. The U3599-O-KK-BLG is a socket only, with no main breaker and no receptacles. You will need a separate service disconnect or main breaker panel downstream. It does include a ground lug for the equipment grounding conductor.
3) What size service conductors will the lugs on this 200A Milbank socket accept?
Both line and load terminals take 6 AWG through 350 kcmil, and they are lay-in type, so you drop the conductor in rather than threading it through. That range covers the usual 4/0 aluminum or 2/0 copper 200A service entrance runs with room to spare for parallel-free single conductors.
4) What does the horn bypass on this meter socket actually do for me on a service call?
The horn bypass lets you carry the load around the meter so power stays on while the meter is pulled or swapped. Many utilities require it on 200A sockets for exactly that reason. Check with your serving utility on whether they want bypass or a non-bypass socket before you set it.
5) Can I use this Milbank socket for a 3-phase or 320A service?
No. It is a single-phase, 5-jaw socket rated 200 continuous amps. A 3-phase service needs a 7-jaw socket, and a 320A/400A class service needs a higher-rated socket with heavier lugs. Neither will work with this one.
6) Can I mount this Milbank socket outdoors on the side of a building?
Yes. It is a surface mount enclosure with a Type 3R rating, so it is built for outdoor rain and sleet exposure, and the body is G90 galvanized steel with a powder coat finish for corrosion resistance. It is also UL Listed.
7) Will this socket accept a utility barrel lock, and does it come with the bracket?
Yes. The U3599-O-KK-BLG ships with a 7/8 inch knockout and the angle bracket for a barrel lock provision, so the utility can seal the cover. The barrel lock itself is supplied by the utility.
8) What are the enclosure dimensions of the Milbank U3599-O-KK-BLG so I can lay out the wall space?
The enclosure measures 4.5L x 14W x 15.25H inches. Allow clear working space in front per your local code and enough room below for the underground conduit sweep into the side wireway.
9) Is a ringless socket like this the right choice, or do I need a ring-type meter socket?
That is a utility call, not a preference. A ringless socket uses a lift-off cover that the utility seals, while a ring-type uses a sealing ring around the meter. Most utilities specify one or the other in their service handbook. The U3599-O-KK-BLG is ringless with a barrel lock provision, which is the common combination where the utility seals the cover rather than a ring.
10) I manage a multi-unit property and need individual meters. Can I gang these together?
Each U3599-O-KK-BLG is a single-position socket, so you would be setting one per tenant. For multiple tenants on one service, a multi-position meter stack or a modular metering pack is usually the better buy than a row of individual sockets, since it consolidates the service entrance conductors and the utility seal points.
11) Is the insulating base on this socket suitable for a harsh outdoor environment?
The jaw base is glass polyester, a thermoset insulator that holds up to heat and moisture in outdoor Type 3R service, and it is paired with a G90 galvanized steel powder coated enclosure.
