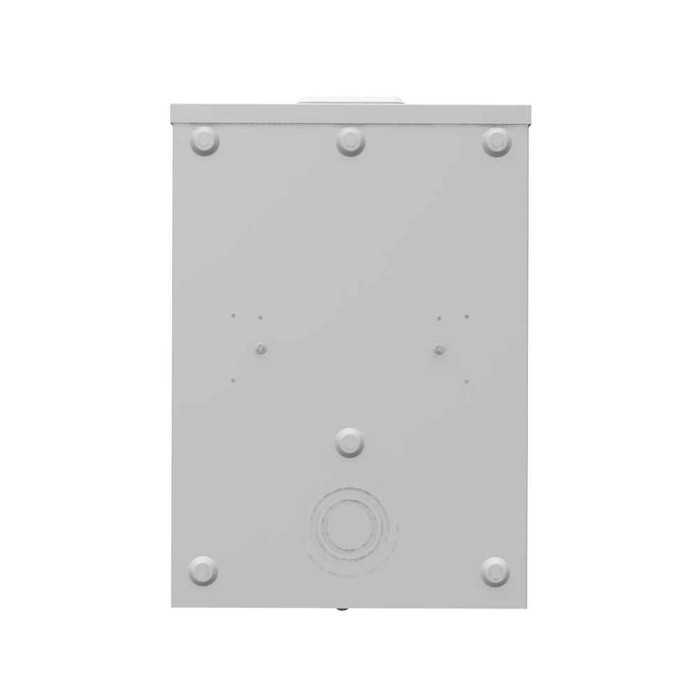

Milbank U4467-XL-KK-BLG 5 Terminal Ringless Small Closing Plate Horn Bypass with 7/8" Barrel Lock Provision 150 Ampere

Milbank 150A 1-Phase Ringless Meter Socket with Horn Bypass and 7/8" Barrel Lock Provision

(No reviews yet) Write a Review

Model: U4467-XL-KK-BLG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$298.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 150A 1-Phase Ringless Meter Socket with Horn Bypass and 7/8" Barrel Lock Provision

Professional metering solution with integrated bypass capability

The Milbank 150A 1-Phase Ringless Meter Socket delivers reliable electrical metering with professional horn bypass functionality and secure barrel lock provision. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable performance for single-position metering applications with 600V AC rating and bonded neutral equipment ground.

Professional Features & Benefits

  • 150 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for residential and light commercial applications.
  • Horn Bypass Provision: Enables safe meter maintenance and replacement without service interruption through integrated bypass capability.
  • 7/8" Barrel Lock Provision: Includes knockout and angle bracket for secure utility access control and tamper resistance.
  • Type 3R UL Listed Enclosure: Weather-resistant construction meets safety standards for outdoor installation and protection from rain, sleet, and ice.
  • G90 Galvanized Steel Construction: Powder coat finish over galvanized steel provides superior corrosion resistance and long-term durability.
  • Ringless Design: Eliminates meter ring requirements for simplified installation and reduced connection points.
  • 5 Terminal Configuration: Accommodates single-phase service with proper neutral and equipment grounding connections.

Technical Specifications

  • Amperage Rating: 150 Continuous Ampere
  • Application: Meter Socket
  • Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Bonded Neutral
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 6 - 2/0 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 5T12
  • Product Height: 15.5 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 11W x15.5H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 11 IN

Professional Applications

  • Residential Service Entrance Metering
  • Small Commercial Facilities
  • Multi-Unit Properties
  • Professional Offices
  • Retail Establishments
  • Light Industrial Applications
  • Utility Service Connections

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed construction and Type 3R weather resistance. The G90 galvanized steel with powder coat finish ensures long-term durability, while the professional 5-terminal ringless design provides dependable metering performance for demanding electrical service applications.

Manufacturer Resources

Product Specs

Amperage Rating:
150 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Bonded Neutral
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 - 2/0 AWG
Load Side Wire Range:
6 - 2/0 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
5T12
Product Height:
15.5 IN
Product Length:
4.125 IN
Product Size:
4.125L x 11W x15.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
150
Product Width:
11 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U4467-XL-KK-BLG – Frequently Asked Questions

1) Is this a 4-jaw or 5-jaw meter socket, and what service does that suit?
It is a 5 terminal (5 jaw) single phase socket with a bonded neutral equipment ground, sized for 600V AC, 60 Hz single phase service. A 5 jaw socket is what utilities call for on single phase three wire network or 120/208V single phase metering. If your utility spec sheet calls for a 4 jaw socket, this is not the right unit.
2) Does this Milbank socket include a main breaker or disconnect?
No breaker of any kind. The U4467-XL-KK-BLG is a meter socket only, one meter position, no main breaker and no receptacles, so you still need a separate service disconnect downstream (or ahead of it, per your utility and local code). If you want metering and the disconnect in one enclosure, you are looking for a meter main combination instead.
3) Can this meter socket be mounted outdoors?
Yes, it is UL Listed in a Type 3R enclosure, which is the rain, sleet and ice rated construction utilities require for exterior service entrance mounting. The body is G90 galvanized steel with a powder coat finish for corrosion resistance, and it surface mounts to the wall.
4) What does the horn bypass on this meter socket actually do for me?
Horn bypass lets the utility close a bypass path across the meter jaws so the meter can be pulled and changed without dropping power to the customer. On a tenant occupied building that means a meter swap without an outage call. Note the bypass is a utility function, not a service disconnect, and it does not isolate the socket for your own work.
5) Can I feed this Milbank socket from an underground lateral, or is it overhead only?
Either. Cable entry is rated for overhead or underground, and it ships with a small hub closing plate so the top opening can be closed off when you are coming in from below, or fitted with a hub for an overhead drop. Confirm the hub size your utility requires, since the hub itself is a separate item.
6) Does this socket accept a utility barrel lock for sealing?
Yes. A 7/8 inch knockout with an angle bracket is provided for a barrel lock, which is what most utilities use to seal a ringless cover against tampering. The barrel lock itself is supplied by the utility.
7) What is the difference between a ringless meter socket like this and a ring-type socket?
A ringless socket uses a one piece cover that slides down over the socket and is secured with a sealing screw or barrel lock, rather than a separate locking ring clamping the meter to the socket. Fewer parts to lose and a faster meter set, but the choice is not yours to make: most utilities specify one style or the other for their territory. Check the utility service manual before ordering, because a ringless unit will be rejected where ring type is required.
8) How much wall space does the Milbank U4467-XL-KK-BLG need?
The enclosure measures 4.125 x 11 x 15.5 inches, with 15.5 inches the height and 11 inches the width, so plan on roughly a foot of wall width plus working clearance in front. It projects about 4-1/8 inches off the surface it is mounted to.
