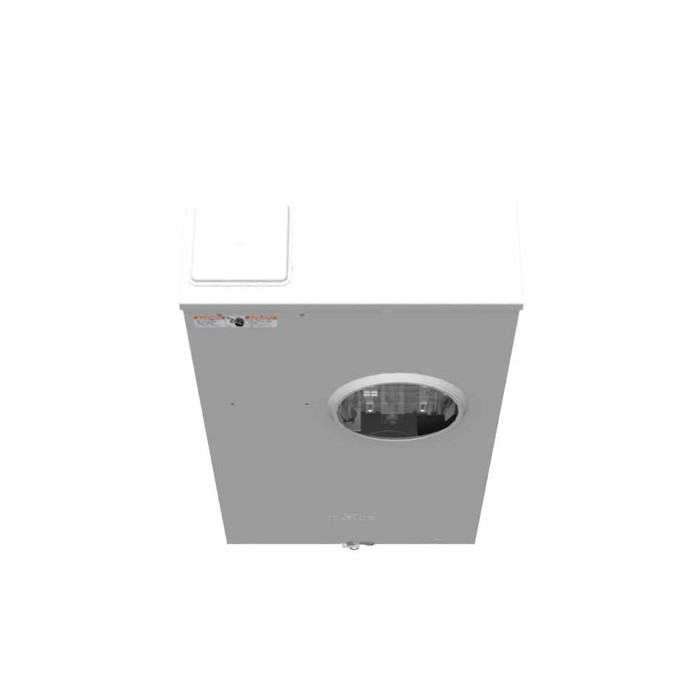

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate (6)

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional meter socket solution with integrated bypass capability

The Milbank 320A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality for professional installations. Featuring a robust G90 galvanized steel construction with powder coat finish and Type 3R rating, this surface-mount meter socket provides 320 continuous ampere capacity at 600V AC with underground cable entry and side wireway configuration.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles substantial electrical loads for commercial and industrial applications with reliable current capacity.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption through integrated bypass mechanism.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and ice formation in outdoor installations.
• G90 Galvanized Steel Construction: Durable material with powder coat finish provides long-term corrosion resistance and structural integrity.
• 5 Terminal Ringless Design: Simplifies installation with ringless connections and comprehensive terminal configuration for versatile wiring applications.
• 7/8" Barrel Lock Provision: Includes knockout and angle bracket for security hardware installation and tamper protection.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Underground with Side Wireway
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 5T32
• Product Height: 30 IN
• Product Length: 5.75 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.75L x 16W x30H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Single Mechanical
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 16 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Service
• Industrial Facility Metering
• Multi-Unit Residential Properties
• Retail and Office Buildings
• Municipal and Institutional Facilities
• Underground Service Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive 5-terminal ringless design and integrated bypass capability provide professional-grade functionality for demanding electrical service applications.
