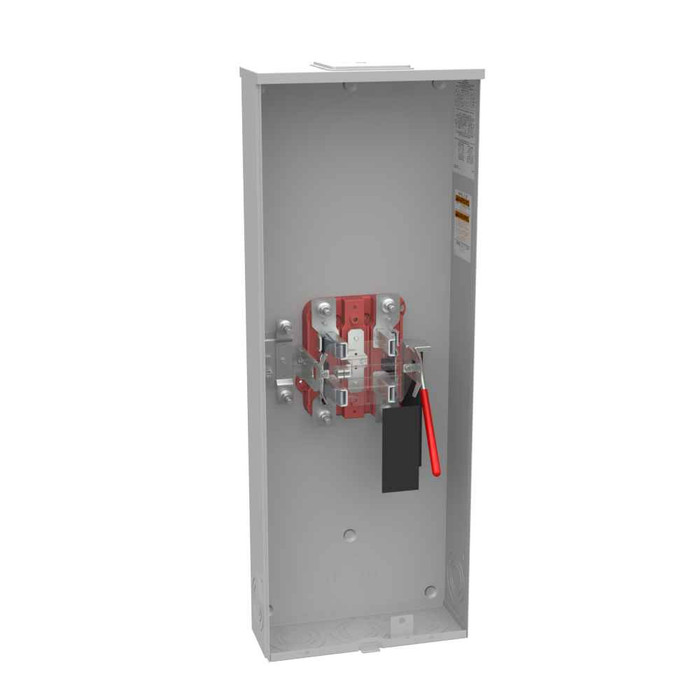

Milbank 320A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional meter socket solution with integrated bypass capability

The Milbank 320A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality for professional installations. This surface-mount meter socket features G90 galvanized steel construction with powder coat finish, 5-terminal ringless design, and Type 3R enclosure rating for versatile indoor and outdoor applications. The unit includes a large closing plate with 3-inch hub inside the meter socket and accommodates both overhead and underground cable entry configurations.

Professional Features & Benefits

• 320 Continuous Ampere Rating: Handles high-capacity electrical loads for commercial and industrial metering applications with reliable performance.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without interrupting power service to critical loads.
• G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in harsh environmental conditions.
• Type 3R Enclosure Rating: Offers protection against rain, sleet, and ice formation for reliable outdoor installation performance.
• 5-Terminal Ringless Design: Simplifies installation with secure connections and eliminates the need for meter rings or bands.
• Dual Cable Entry Options: Accommodates both overhead and underground service configurations for flexible installation requirements.
• UL Listed Certification: Ensures compliance with safety standards and electrical code requirements for professional installations.

Technical Specifications

• Amperage Rating: 320 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: 2 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate and 3 Inch Hub Inside Meter Socket
• Insulation: Glass Polyester
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 5T32
• Product Height: 35.25 IN
• Product Length: 4.844 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.844L x 13W x35.25H
• Product Type: Ringless Meter Socket
• Special Features: Public Service Electric and Gas New Jersey
• Standard: UL Listed;Type 3R
• Terminal: 3/8 Inch Stud
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Building Electrical Service
• Industrial Facility Metering
• Multi-Unit Residential Properties
• Retail and Office Buildings
• Municipal and Government Facilities
• Healthcare and Educational Institutions
• Utility Service Installations

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R enclosure protection. The G90 galvanized steel construction with powder coat finish ensures long-term performance in demanding environments, while the 5-terminal ringless design and lever bypass provision provide professional-grade functionality for critical electrical service applications.
