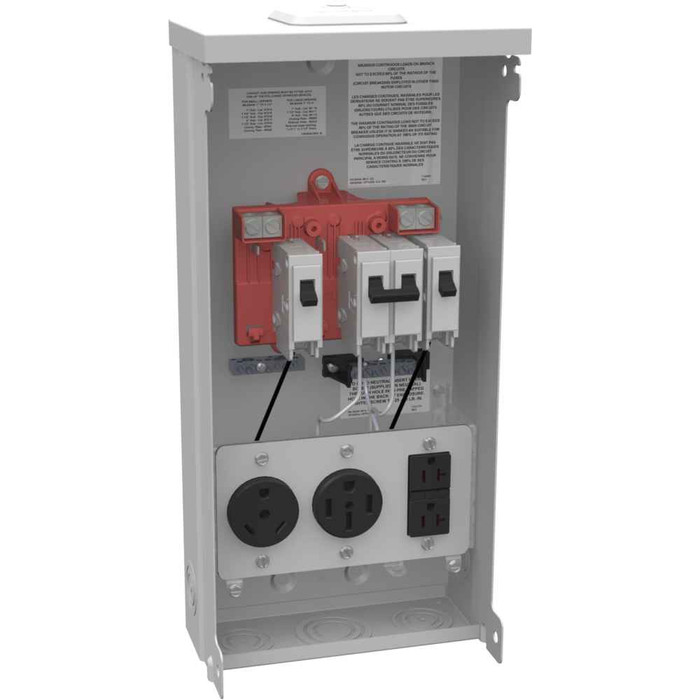

Milbank 125A 1-Phase Unmetered Power Supply with 4 Terminal Ring Type Surface Mount

Milbank 125A 1-Phase Unmetered Power Supply with 4 Terminal Ring Type Surface Mount

Professional RV Power Distribution Solution

The Milbank 125A 1-Phase Unmetered Power Supply delivers reliable electrical distribution for RV power applications with professional-grade construction. Featuring a durable G90 galvanized steel enclosure with powder coat finish and Type 3R rating, this surface mount unit provides dependable power management with 4 terminal ring type connections and support for up to 240V AC operation.

Professional Features & Benefits

• 125 Continuous Ampere Rating: Provides robust power capacity for demanding RV electrical loads with reliable continuous operation.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and ice formation for outdoor installations.
• G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-lasting durability in harsh environments.
• 4 Terminal Ring Type Configuration: Secure lay-in terminal connections accommodate 14-2/0 AWG wire range for versatile installation options.
• Single Phase 240V Operation: Compatible with standard residential and RV electrical systems up to 240 volts AC at 60 Hz.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
• 6 Branch Circuit Capacity: Supports multiple circuit distribution with breaker provision for customized electrical configurations.

Technical Specifications

• Amperage Rating: 125 Continuous Ampere
• Application: RV Power
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 14 - 2/0 AWG
• Main Breaker Size: Breaker Provision
• Number Branch Circuits: 6
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: Single Power Head
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: POUM
• Product Height: 19.25 IN
• Product Length: 5.188 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.188L x 8.875W x19.25H
• Product Type: Unmetered Power Supply
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 8.875 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• RV Parks and Campgrounds
• Recreational Vehicle Service Centers
• Mobile Home Communities
• Temporary Power Distribution
• Outdoor Event Facilities
• Construction Site Power
• Marine Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel enclosure with powder coat finish provides superior corrosion protection, while glass polyester insulation ensures long-term electrical integrity for professional RV power distribution applications.
