Milbank 125A Ringless Meter Socket with RV Power Outlets - 1 Phase 240V Surface Mount

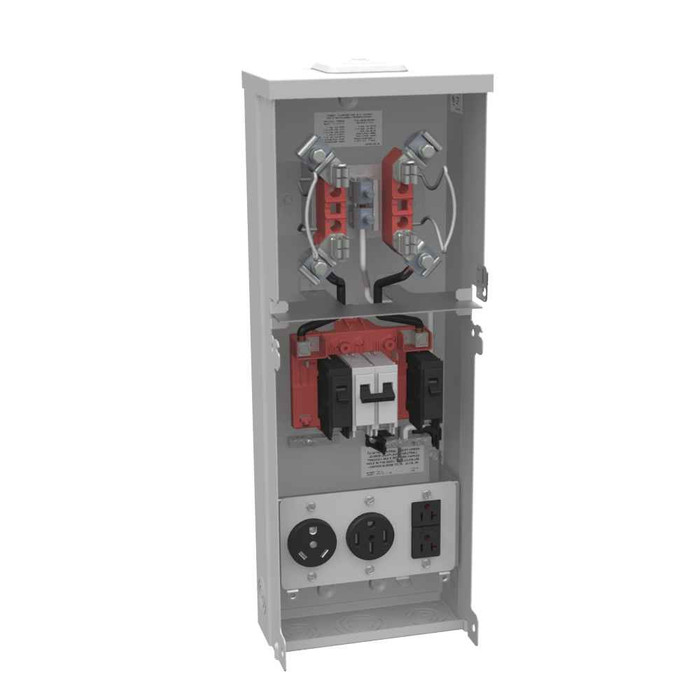

Milbank 125A Ringless Meter Socket with RV Power Outlets

Professional RV Power Distribution with Integrated Metering

The Milbank 125A Ringless Meter Socket delivers reliable RV power distribution with integrated metering capability. This 1 phase, 240V unit features G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating for outdoor durability. The surface mount design includes multiple NEMA receptacle configurations and integrated circuit protection for comprehensive RV power management.

Professional Features & Benefits

• 125 Continuous Ampere Rating: Provides robust power capacity for demanding RV applications and multiple simultaneous loads.
• Type 3R Enclosure Rating: Weather-resistant construction ensures reliable outdoor operation in various environmental conditions.
• Multiple NEMA Receptacles: Includes NEMA 14-50, TT30, and 5-20 GFCI outlets for versatile RV and equipment connectivity.
• Integrated Circuit Protection: Features 20A, 30A, and 50A breakers providing comprehensive overcurrent protection for all connected loads.
• G90 Galvanized Steel Construction: Durable material with powder coat finish delivers long-term corrosion resistance and structural integrity.
• 4 Terminal Ringless Design: Simplifies utility connections with lay-in terminals accommodating 6 AWG to 350 kcmil wire range.
• UL Listed Compliance: Meets rigorous safety standards ensuring code compliance and professional installation confidence.

Technical Specifications

• Amperage Rating: 125 Continuous Ampere
• Application: RV Power
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: One Single Pole 20 Ampere Breaker and One Single Pole 30 Ampere Breaker and One Double Pole 50 Ampe
• Number Branch Circuits: 2
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 3
• Number Of Meter Positions: Single Power Head
• Number Of Receptacles: 3
• Phase: 1 Phase
• Product Family Code: POMT
• Product Height: 25 IN
• Product Length: 5.188 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.188L x 8.875W x25H
• Product Type: Ringless Meter Socket
• Receptacle Configuration: One NEMA 14-50 and One NEMA TT30 and One NEMA 5-20 Ground Fault
• Special Features: Single Pole 20 Ampere Breaker and Single Pole 30 Ampere Breaker and Double Pole 50 Ampere Breaker
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 8.875 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• RV Parks and Campgrounds
• Marina Power Pedestals
• Recreational Vehicle Service Centers
• Mobile Home Parks
• Temporary Event Power Distribution
• Construction Site Power Management
• Emergency Services Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed compliance and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while comprehensive circuit protection and ground bar safety features provide professional-grade performance for demanding RV power applications.
