Milbank 125A Ringless Meter So...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$904.64

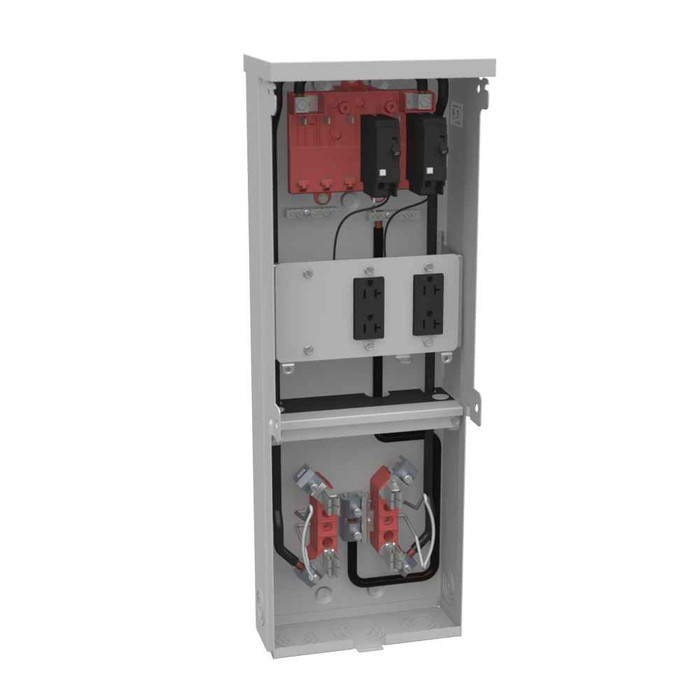

Milbank U4908-O-11GR 4 Terminal Ringless Plain Top 520GR 520GR Surface Mount

Milbank 125A Ringless Meter Socket with GFCI Receptacles - 1 Phase 240V Surface Mount Temporary Power Unit

(No reviews yet) Write a Review

Model: U4908-O-11GR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$904.64
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 125A Ringless Meter Socket with GFCI Receptacles

Professional temporary power solution with integrated ground fault protection

The Milbank 125A Ringless Meter Socket delivers reliable temporary power distribution with integrated GFCI protection. This 1 phase, 240V unit features a durable G90 galvanized steel construction with powder coat finish and Type 3R rating for outdoor applications. The surface mount design includes two single pole 20 ampere breakers and two NEMA 5-20 ground fault receptacles for safe, code-compliant temporary power installations.

Professional Features & Benefits

  • 125 Continuous Ampere Rating: Provides substantial power capacity for demanding temporary applications and multiple connected loads.
  • Type 3R Enclosure Rating: Weather-resistant construction ensures reliable operation in outdoor environments and harsh conditions.
  • G90 Galvanized Steel with Powder Coat: Superior corrosion resistance and durability for extended service life in temporary installations.
  • Two NEMA 5-20 Ground Fault Receptacles: Built-in GFCI protection enhances safety and meets code requirements for temporary power applications.
  • 4 Terminal Ringless Design: Simplifies meter installation and reduces connection complexity for faster deployment.
  • UL Listed Certification: Meets rigorous safety standards ensuring reliable performance and code compliance.
  • Single Power Head Configuration: Streamlined design optimizes space utilization while maintaining full functionality.

Technical Specifications

  • Amperage Rating: 125 Continuous Ampere
  • Application: Temporary Power
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Main Breaker Size: Two Single Pole 20 Ampere Breakers
  • Number Branch Circuits: 4
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 2
  • Number Of Meter Positions: Single Power Head
  • Number Of Receptacles: 2
  • Phase: 1 Phase
  • Product Family Code: HPWR
  • Product Height: 25.938 IN
  • Product Length: 5.188 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.188L x 9W x25.938H
  • Product Type: Ringless Meter Socket
  • Receptacle Configuration: Two NEMA 5-20 Ground Fault
  • Special Features: Two Single Pole 20 Ampere Breakers
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 9 IN

Professional Applications

  • Construction Site Temporary Power
  • Event and Festival Power Distribution
  • Emergency Backup Power Installations
  • Maintenance and Service Applications
  • Outdoor Work Site Power
  • Temporary Commercial Installations
  • Industrial Project Power Supply

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the integrated ground fault protection and professional-grade components provide safe, code-compliant temporary power solutions for demanding applications.

Manufacturer Resources

Product Specs

Amperage Rating:
125 Continuous Ampere
Application:
Temporary Power
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Main Breaker Size:
Two Single Pole 20 Ampere Breakers
Number Branch Circuits:
4
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
2
Number Of Meter Positions:
Single Power Head
Number Of Receptacles:
2
Phase:
1 Phase
Product Family Code:
HPWR
Product Height:
25.938 IN
Product Length:
5.188 IN
Product Size:
5.188L x 9W x25.938H
Product Type:
Ringless Meter Socket
Receptacle Configuration:
Two NEMA 5-20 Ground Fault
Special Features:
Two Single Pole 20 Ampere Breakers
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
125
Product Width:
9 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U4908-O-11GR – Frequently Asked Questions

1) Will the Milbank U4908-O-11GR temporary power unit work on a 240V single phase construction service?
Yes. The U4908-O-11GR is rated single phase, 60 Hertz, up to 240 volts AC, with a 125 continuous ampere rating. It's a 4 terminal ringless socket, which is the standard single phase residential/light commercial meter configuration, so it suits a temporary 120/240V service feeding a jobsite.
2) Does this Milbank temp power pedestal have a main breaker or a disconnect?
No main. The U4908-O-11GR carries two single pole 20 ampere breakers feeding the two receptacles, and it's listed as no bypass provision. If your utility or inspector requires a main disconnect ahead of the branch circuits, you need a different temp power unit with a main breaker, not this one.
3) What receptacles are on the Milbank 125A ringless temp power unit, and are they GFCI?
Two NEMA 5-20 ground fault receptacles, each on its own single pole 20 amp breaker. NEMA 5-20 is a 125V 20 amp configuration, so it takes both standard 5-15 cords and 20 amp T-slot plugs. GFCI protection is built in, which is what jobsite temporary power rules call for.
4) Is the Milbank U4908-O-11GR set up for overhead or underground service entrance?
Underground. Cable entry on the U4908-O-11GR is underground, and the top is a plain top hub closing plate, meaning there's no factory hub opening for an overhead weatherhead riser. If you're fed from an overhead drop, you want a unit ordered with a hub top instead.
5) Can this Milbank meter socket be left outside in the rain on a jobsite?
Yes. It's UL Listed with a Type 3R enclosure rating, which is rain and sleet resistant for outdoor use. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance. Type 3R is not dust tight or washdown rated, so it's outdoor weather protection, not a hosedown environment.
6) How do I land the service conductors and the ground in this Milbank temp power unit?
The socket uses lay in terminals, so line and load conductors drop into the jaw terminals rather than threading through a closed lug, which speeds up termination on heavy temp feeders. Equipment grounding is handled by an included ground bar, and jaw insulation is glass polyester.
7) Ringless versus ring type meter socket for temporary power, which do I need?
That's set by your serving utility, not by preference. The Milbank U4908-O-11GR is a ringless design with a 4 terminal single position power head, where the cover itself retains the meter and no sealing ring is used. Utilities that require a ring type socket will reject a ringless can, so confirm the utility's approved socket list before ordering.
