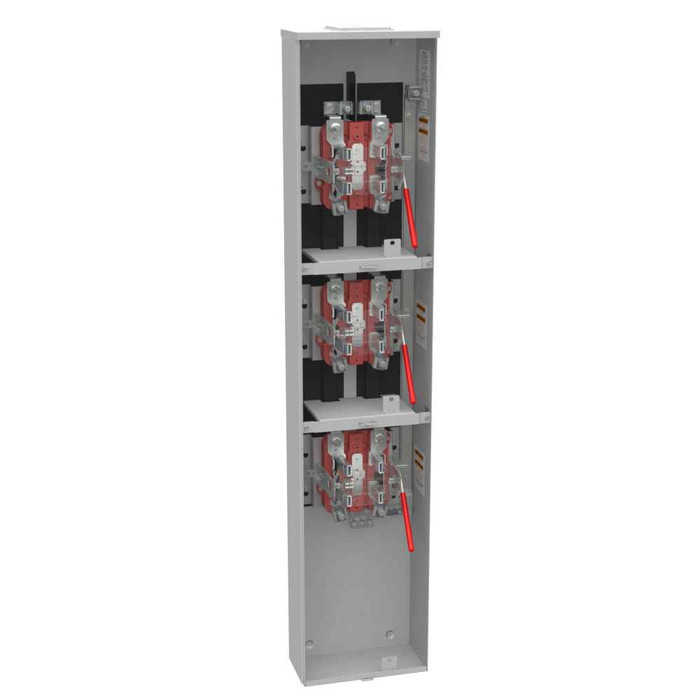

Milbank 3-Position Ringless Meter Socket 100A 300V 1-Phase with Lever Bypass and Barrel Lock Provision

Milbank 3-Position Ringless Meter Socket 100A 300V 1-Phase with Lever Bypass and Barrel Lock Provision

Professional Multi-Position Metering Solution with Advanced Security Features

The Milbank 3-Position Ringless Meter Socket delivers reliable electrical metering for multi-unit applications with 100 continuous ampere capacity and 300V AC rating. This 1-phase vertical design meter socket features G90 galvanized steel construction with powder coat finish for superior durability, lever bypass provision for maintenance flexibility, and 9/16 inch barrel lock provision with angle bracket for enhanced security. The 5-terminal configuration with large closing plates and lay-in terminals accommodates 6 AWG to 350 kcmil wire ranges for both line and load side connections.

Professional Features & Benefits

• 100 Continuous Ampere Rating: Provides reliable power capacity for multi-unit residential and commercial metering applications with consistent performance.
• 3-Position Vertical Design: Maximizes space efficiency while enabling independent metering for multiple units or services in a compact footprint.
• Lever Bypass Provision: Allows safe maintenance and meter changes without interrupting power to other positions, enhancing operational flexibility.
• G90 Galvanized Steel with Powder Coat: Delivers exceptional corrosion resistance and long-term durability in outdoor and harsh environmental conditions.
• UL Listed Type 3R Rating: Ensures compliance with safety standards and provides protection against rain, sleet, and ice formation for reliable outdoor installation.
• 9/16 Inch Barrel Lock Provision: Includes knockout and angle bracket for secure barrel lock installation, preventing unauthorized access and tampering.
• Glass Polyester Insulation: Provides superior electrical isolation and thermal stability for safe, long-term operation in demanding environments.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: 3 Barrel Ground Lug and Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 3 Position Vertical Design
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: GHD2
• Product Height: 58.2 IN
• Product Length: 6 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 6L x 12W x58.2H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 300 Volts Alternating Current
• Width: 12 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Unit Residential Properties
• Commercial Building Metering
• Apartment Complex Electrical Distribution
• Condominium Metering Systems
• Mixed-Use Development Projects
• Property Management Facilities
• Municipal and Utility Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The comprehensive grounding system with 3 barrel ground lugs and ground bar ensures safe operation, while the glass polyester insulation provides long-term electrical integrity for demanding metering applications.
