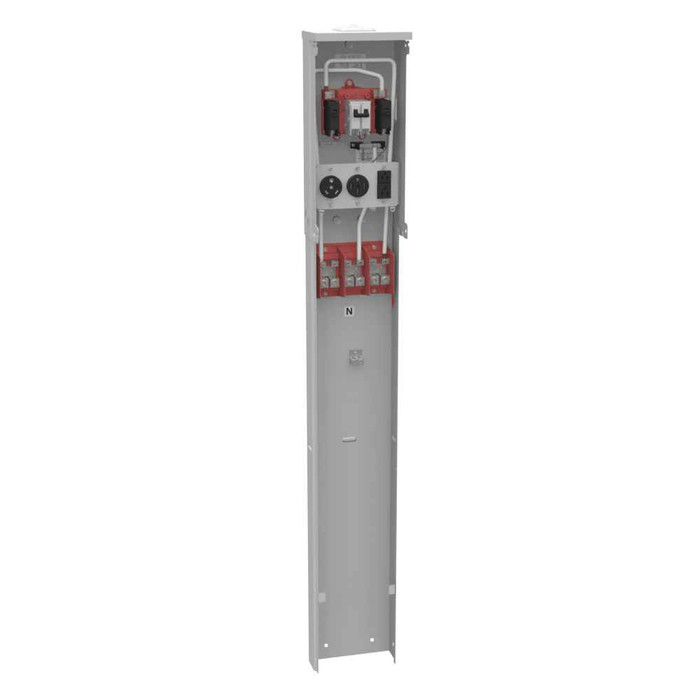

Milbank U5200-XL Unmetered Enclosure - Small Closing Plate, Single Pedestal Direct Bury Configuration

Milbank 125A Single Phase Unmetered RV Power Pedestal with Direct Bury Configuration

(No reviews yet) Write a Review

Model: U5200-XL-552GR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,172.15
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 125A Single Phase Unmetered RV Power Pedestal with Direct Bury Configuration

Professional RV Power Distribution for Campgrounds & Recreational Facilities

The Milbank 125A Single Phase Unmetered RV Power Pedestal delivers reliable electrical distribution specifically designed for RV applications. This professional-grade pedestal features G90 galvanized steel construction with powder coat finish for superior durability, 125 continuous ampere rating for high-capacity power delivery, and UL Listed Type 3R enclosure rating for outdoor installation confidence. The single pedestal direct bury configuration provides secure mounting with 4 terminal double mechanical connections and comprehensive equipment grounding system.

Professional Features & Benefits

  • 125 Continuous Ampere Rating: Provides robust power capacity for multiple RV electrical loads and high-demand recreational vehicle systems.
  • Single Phase 240V AC Operation: Delivers standard RV park voltage compatibility for universal recreational vehicle electrical system integration.
  • G90 Galvanized Steel with Powder Coat Finish: Ensures long-term corrosion resistance and professional appearance in outdoor recreational environments.
  • UL Listed Type 3R Enclosure: Provides verified safety compliance and weather protection for reliable outdoor installation performance.
  • Direct Bury Pedestal Configuration: Enables secure permanent installation with professional underground mounting for campground applications.
  • 4 Terminal Double Mechanical Connections: Delivers reliable electrical connections with enhanced contact pressure for consistent power delivery.
  • Comprehensive Equipment Grounding: Features 2 barrel ground lug and ground bar system for enhanced electrical safety and code compliance.

Technical Specifications

  • Amperage Rating: 125 Continuous Ampere
  • Application: RV Power
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug and Ground Bar
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 4 Terminal
  • Number Of Meter Positions: Single Power Head
  • Phase: 1 Phase
  • Product Family Code: RVUM
  • Product Height: 64.5 IN
  • Product Length: 5.188 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Type: Unmetered Power Supply
  • Standard: UL Listed;Type 3R
  • Terminal: Double Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current

Professional Applications

  • RV Parks and Campgrounds
  • Recreational Vehicle Service Centers
  • Mobile Home Communities
  • Temporary Event Power Distribution
  • Construction Site RV Facilities
  • Emergency Housing Power Supply
  • Outdoor Recreation Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection for professional outdoor power distribution. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the comprehensive grounding system and double mechanical terminals provide enhanced safety and connection reliability for demanding RV power applications.

Manufacturer Resources

Product Specs

Amperage Rating:
125 Continuous Ampere
Application:
RV Power
Brand Name:
Milbank
Bypass Provision:
No Bypass
Equipment Ground:
2 Barrel Ground Lug and Ground Bar
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
4 Terminal
Number Of Meter Positions:
Single Power Head
Phase:
1 Phase
Product Family Code:
RVUM
Product Height:
64.5 IN
Product Length:
5.188 IN
Product Type:
Unmetered Power Supply
Standards:
UL Listed;Type 3R
Terminal:
Double Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
125
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Pedestal
Terminal Type:
Double Mechanical
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Unmetered Power Supply
Number of Terminations:
4

Milbank U5200-XL-552GR – Frequently Asked Questions

1) Does the Milbank U5200-XL RV pedestal include a meter socket, or is it unmetered?
Unmetered. The U5200-XL is an unmetered power supply with no bypass provision, so there is no meter to read and no utility meter mounts to it. It has a single power head and 4 terminal double mechanical line connections. If the park bills per site off a utility meter, this is the wrong enclosure and you want a metered RV pedestal instead. For master-metered parks or sites fed from a house panel, unmetered is what you want.
2) What size feeder conductors will land in the Milbank U5200-XL pedestal?
The line side terminals take 6 AWG through 350 kcmil, so anything from a small copper feeder up to a large aluminum run for a long underground pull will land without a splice or a reducer. They are double mechanical lugs. Equipment grounding is handled by 2 barrel ground lugs plus a ground bar. Rating is 125 continuous amperes, single phase, up to 240 volts AC at 60 hertz, so size the feeder to the actual site load and let the lug range absorb the voltage drop upsizing.
3) How is the Milbank U5200-XL RV pedestal mounted, and does it need a concrete base?
It is a direct bury pedestal. The enclosure body sits on a buried stem that goes straight into the ground with backfill, no concrete pad or separate mounting base required, though many parks still pour a small apron for mower clearance. Overall height is 64.5 inches, and the enclosure measures 5.188 inches in the other stated dimension, so plan trench depth so the receptacles land at a workable height above finished grade after burial.
4) Is the Milbank U5200-XL rated for outdoor installation in a campground?
Yes, it is UL Listed with a Type 3R enclosure rating, which is the rain and sleet tight rating used for outdoor service equipment. Body is G90 galvanized steel with a powder coat finish over it, and internal insulation is glass polyester. Type 3R is not a washdown or submersion rating, so keep the base above any area that ponds, but for normal exposure at an RV site it is the standard.
5) What outlet combinations does the Milbank U5200-XL pedestal come in?
Twelve receptacle builds are offered on the U5200-XL. Standard (no outlets), 520GR only (-10GR), 520GR / TT30 (-41), 520GR with dual TT30 (-332), dual 520GR / TT30 (-322), 520GR / 1450 (-55), dual 1450 / 520GR (-552GR), 1450 / dual 520GR (-76GR), and TT30 / 1450 / 520GR (-75). Light kit versions exist on the -41 and -75 builds, plus a -75-LPC with light kit and photo control. Pick by what plugs the sites need to serve: 1450 is the 50 amp RV outlet, TT30 the 30 amp, 520GR the 20 amp duplex.
6) Can one Milbank U5200-XL pedestal serve two RV sites?
It is a single power head unit, one pedestal serving one location, rated 125 continuous amperes single phase. Some outlet builds carry two like receptacles, for instance the -332 with dual TT30 or the -552GR with dual 1450, which lets a back-to-back pull-through pair share the pedestal if your feeder and load calculation support both rigs at once. It is not a two-position metered unit and cannot be split for separate billing.
7) Does the Milbank U5200-XL RV pedestal come with breakers installed?
The U5200-XL is the enclosure and power supply assembly: pedestal, line lugs, grounding, and the receptacle set you specify by suffix. Overcurrent protection for each receptacle is sized to the outlets you select, so budget the branch breakers as a separate line on the order along with the feeder and any conduit fittings. The unit ships with a small hub closing plate for the unused hub opening.
8) I need a bare RV pedestal to add my own receptacles later. Which Milbank U5200-XL do I order?
The plain U5200-XL, listed as the Standard outlet configuration, is the pedestal without a factory receptacle package. You get the direct bury Type 3R enclosure, the 6 AWG to 350 kcmil double mechanical line terminals, the 2 barrel ground lugs and ground bar, and the small closing plate. Useful for phased campground builds where the site amperage is not settled yet.
9) What is the difference between the Milbank U5200-XL-41 and the U5200-XL-41-L?
Same pedestal and same outlets, a 520GR duplex and a TT30, on both. The -41-L adds a light kit for site illumination. Step up to the -75-LPC if you want lighting that switches itself with a photo control instead of being fed from a park-wide contactor.
10) Can the Milbank U5200-XL be used for temporary construction or event power instead of an RV park?
It works anywhere you need a weatherproof 125 amp single phase distribution point with cord-and-plug outlets, including event power, mobile home sites, and construction trailers. The catch is the mounting: this is a direct bury pedestal meant to go permanently in the ground, not a skid or trailer mounted temp power unit. If the power has to move, look at a portable temporary power outlet box instead of burying this one.
