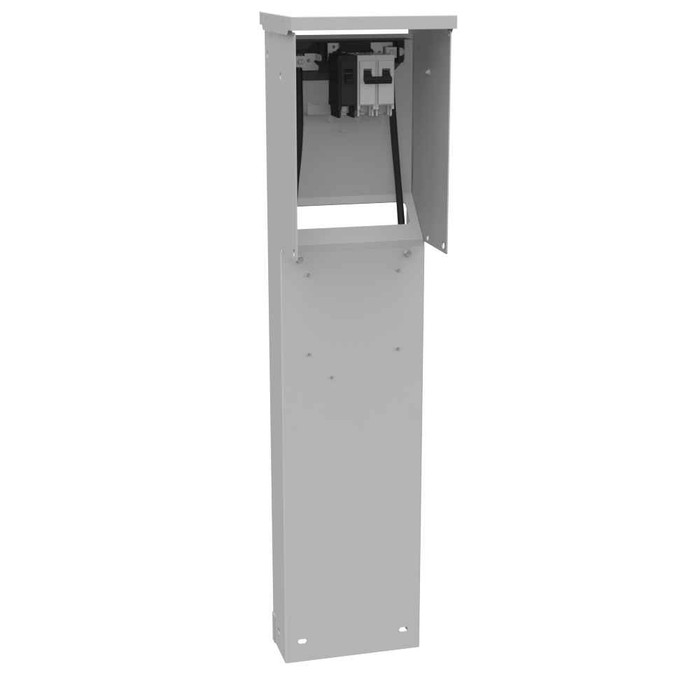

Milbank 100A Single Phase RV Power Pedestal with Plain Top Unmetered Design

Milbank 100A Single Phase RV Power Pedestal with Plain Top Unmetered Design

Professional RV Power Distribution for Recreational Vehicle Applications

The Milbank 100A Single Phase RV Power Pedestal delivers reliable electrical distribution specifically designed for recreational vehicle applications. This unmetered power supply features a durable pedestal mounting design with G90 galvanized steel construction and powder coat finish, providing weather-resistant performance with Type 3R enclosure rating. The single power head configuration with plain top design offers streamlined installation and operation for RV park and campground facilities.

Professional Features & Benefits

• 100 Continuous Ampere Rating: Provides substantial power capacity for modern RV electrical demands and multiple appliance operation.
• Single Phase 240V AC: Compatible with standard RV electrical systems and delivers versatile voltage options for various equipment.
• G90 Galvanized Steel with Powder Coat: Ensures long-term durability and corrosion resistance in outdoor environments.
• Type 3R Enclosure Rating: Protects internal components from rain, sleet, and ice formation while maintaining reliable operation.
• Underground Cable Entry: Supports clean installation with concealed wiring for professional appearance and protection.
• UL Listed Certification: Meets rigorous safety standards for commercial and recreational applications.
• Double Mechanical Terminals: Provides secure electrical connections with reliable contact pressure for consistent performance.

Technical Specifications

• Amperage Rating: 100 Continuous Ampere
• Application: RV Power
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: 2 Barrel Ground Lug and Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Number Of Jaws: 4 Terminal
• Number Of Meter Positions: Single Power Head
• Phase: 1 Phase
• Product Family Code: RVUM
• Product Height: 36 IN
• Product Length: 7.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Pedestal
• Product Size: 7.5L x 8W x36H
• Product Type: Unmetered Power Supply
• Standard: UL Listed;Type 3R
• Terminal: Double Mechanical
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 8 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• RV Parks and Campgrounds
• Recreational Vehicle Service Centers
• Mobile Home Communities
• Temporary Event Power Distribution
• Construction Site Temporary Power
• Emergency Services Staging Areas

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection, ensuring dependable performance in demanding outdoor environments. The robust G90 galvanized steel construction with powder coat finish provides long-term durability, while the glass polyester insulation and double mechanical terminals ensure safe, reliable electrical connections for professional RV power distribution applications.
