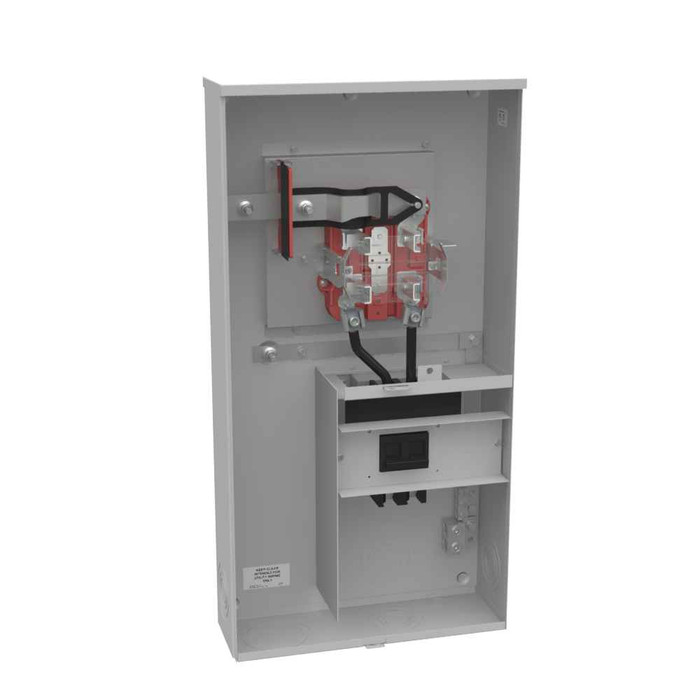

Milbank U5757-O-200 4 Terminal Ringless Plain Top 1-200 Ampere Main Breaker Side Bussed Wide Shell

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker - Underground Entry Type 3R Enclosure

(No reviews yet) Write a Review

Model: U5757-O-200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,878.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker - Underground Entry Type 3R Enclosure

Professional electrical metering solution with integrated main breaker protection

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering and main breaker protection in a durable Type 3R rated enclosure. Featuring G90 galvanized steel construction with powder coat finish, this surface-mount unit provides 200 continuous ampere capacity with underground cable entry and 4-terminal ringless design for professional electrical installations.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service requirements
  • Integrated Main Breaker: One 200 ampere main breaker delivers essential overcurrent protection and service disconnect capability
  • Type 3R Weather Rating: UL listed enclosure withstands outdoor environmental conditions for reliable long-term performance
  • G90 Galvanized Steel Construction: Powder coat finish over galvanized steel provides superior corrosion resistance and durability
  • Underground Cable Entry: Designed for underground service applications with appropriate cable entry provisions
  • 4-Terminal Ringless Design: Simplifies meter installation and removal without requiring ring-type lugs
  • Wide Load Side Wire Range: Accommodates 1 AWG through 300 kcmil conductors for flexible installation options

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 3 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MMHD
  • Product Height: 34 IN
  • Product Length: 5.75 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.75L x 17.375W x34H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 17.375 IN

Professional Applications

  • Residential electrical service installations
  • Small commercial and retail facilities
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial applications
  • Underground utility service connections
  • Electrical service upgrades and replacements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL listed construction and Type 3R weather protection. The G90 galvanized steel enclosure with powder coat finish ensures long-term durability in demanding outdoor environments, while the professional-grade design supports code-compliant electrical installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Underground
Equipment Ground:
3 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Load Side Wire Range:
1 AWG - 300 kcmil
Main Breaker Size:
One 200 Ampere Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MMHD
Product Height:
34 IN
Product Length:
5.75 IN
Product Size:
5.75L x 17.375W x34H
Product Type:
Meter Main Combination
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
17.375 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U5757-O-200 – Frequently Asked Questions

1) Will the Milbank U5757-O-200 meter socket work for a 200 amp overhead service drop?
No. The U5757-O-200 is built for underground service entry and ships with a plain top, meaning there is no hub opening for a weatherhead and conduit riser. For an overhead drop you want the same style of 200A ringless combination socket ordered in an overhead configuration with a hub or hub-closing-plate top.
2) Does this Milbank socket have a meter bypass for hot swapping the meter?
No bypass provision is included. If your utility requires a lever or horn bypass so the meter can be pulled without dropping the load, this unit will not satisfy that requirement and you need a bypass-equipped socket instead.
3) Is the Milbank U5757-O-200 a ringless or ring-type meter socket, and how many jaws?
Ringless, with a 4 terminal (4 jaw) single-position socket, which is the standard arrangement for 120/240V single phase residential service. Utilities generally specify ringless or ring-type, so confirm which your local provider accepts before ordering.
4) Can I use this on a 208Y/120 three phase service?
No. It is a 1-phase device rated up to 240 volts AC at 60 hertz with a 4 terminal socket. A three phase service needs a 7-jaw socket rated for that system.
5) Does this combination socket include the service disconnect, or do I still need a separate main?
The disconnect is built in. One 200 ampere main breaker is factory installed, giving you overcurrent protection and the service disconnecting means in the same can, so the panel downstream can be a main-lug or main-breaker load center as you prefer.
6) Is this Milbank meter socket rated for outdoor mounting on an exterior wall?
Yes. It is UL Listed with a Type 3R enclosure, which is the rain-rated construction utilities expect for an exterior service. The shell is G90 galvanized steel with a powder coat finish, and it surface mounts flat to the wall.
7) What wall space do I need for the Milbank U5757-O-200?
Plan for a footprint of 5.75 x 17.375 x 34 inches. It is the wide-shell style, so check your stud layout and any clearance the utility requires around the meter before you set it.
8) Are there any branch breaker spaces or GFCI receptacles in this Milbank unit?
None. It carries zero receptacles and a single main breaker only, so it is a meter-main, not an all-in-one panel. Branch circuits have to be fed from a separate load center.
9) Is 200A continuous the real rating, or is that a momentary number?
It is a 200 continuous ampere rating, so the socket and busing are rated to carry a full 200 amps continuously, which is what you need for a 200 amp service upgrade rather than a derated unit.
