Milbank 200A 1-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$646.41

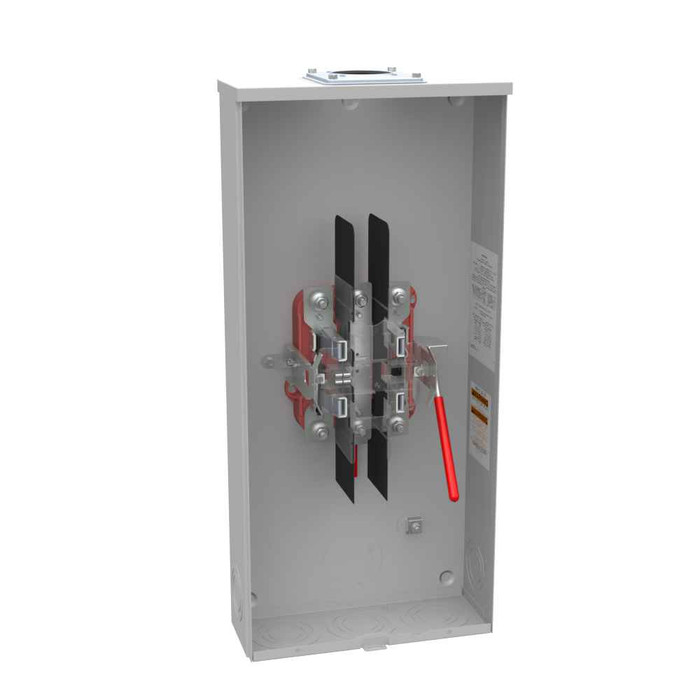

Milbank U9865 4 & 5 Terminal Ringless Meter Socket - Large Hub Open to Small Hub Open, Lever Bypass Stud Type

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - Surface Mount Type 3R Enclosure

(No reviews yet) Write a Review

Model: U9865-RRL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$646.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass - Surface Mount Type 3R Enclosure

Professional electrical metering solution with lever bypass functionality

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass capability. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface mount meter socket provides durable performance for overhead cable entry applications. The unit accommodates large hub opening adapted to small hub opening configuration with glass polyester insulation for enhanced electrical safety.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Lever Bypass Provision: Enables safe meter removal and replacement without interrupting electrical service to the facility.
  • Type 3R Enclosure Rating: Provides weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability with professional powder coat finish.
  • Ringless Design: Simplifies installation and maintenance with modern meter connection technology and reduced connection points.
  • UL Listed Certification: Ensures compliance with electrical safety standards and code requirements for professional installations.
  • Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for safe operation under load conditions.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Hub Opening Adapted to Small Hub Opening
  • Insulation: Glass Polyester
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: HD4T
  • Product Height: 28.25 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x28.25H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: 3/8 Inch Stud
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Residential electrical service installations requiring reliable metering and bypass capability
  • Light commercial facilities needing professional-grade meter socket solutions
  • Multi-unit properties with individual metering requirements and service flexibility
  • Electrical contractor installations demanding UL listed components and code compliance
  • Retrofit applications where lever bypass functionality enhances service continuity
  • Overhead service entrance configurations requiring Type 3R weather protection

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL listed certification and Type 3R enclosure rating, ensuring professional performance in demanding electrical applications. The G90 galvanized steel construction with powder coat finish provides long-term durability and corrosion resistance for sustained electrical service.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Hub Opening Adapted to Small Hub Opening
Insulation:
Glass Polyester
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
HD4T
Product Height:
28.25 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x28.25H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
3/8 Inch Stud
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Large Hub Opening Adapted To Small Hub Opening
Installation Category:
Surface Mount
Terminal Type:
3/8 Inch Stud
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Power Distribution

Milbank U9865-RRL – Frequently Asked Questions

1) Do I need the 4-terminal or the 5-terminal version of the Milbank U9865 meter socket?
That depends on what your utility requires. The Milbank U9865-RRL is the 4-terminal socket, and the U9865-RRL-5T9 adds a 5th terminal in the 9 o'clock position. Utilities that meter network or certain 120/240V configurations call for the 5th jaw; most standard single-phase residential services take the 4-terminal. Call the serving utility before ordering, because the socket has to match their meter and their spec sheet.
2) Will the Milbank U9865 meter socket work for an underground service lateral?
No. The U9865 is built for overhead cable entry, with the hub opening at the top for a service mast or weatherhead drop. For an underground lateral you want a bottom-fed socket with a closing plate instead of a hub. Ordering this one for a URD service means the conduit enters in the wrong place.
3) Does the Milbank U9865 meter socket include a main breaker or disconnect?
No breaker is included. The U9865 is a meter-socket-only device, with no main breaker and no receptacles, so your overcurrent protection and service disconnect have to live in a separate panel or in a meter main combination unit downstream. If you need metering and the disconnect in one enclosure, look at a meter main instead of this socket.
4) What size lugs or terminals does the Milbank U9865 have for landing service conductors?
It uses 3/8 inch stud terminals rather than factory-installed mechanical lugs. That means you select the terminal lug or connector that suits your conductor size and land it on the stud, so 4/0 aluminum or 2/0 copper service entrance conductors are all handled by picking the right stud lug. Budget for those connectors as a separate line on the order.
5) Is the Milbank U9865 rated for a 120/240V single-phase residential service?
Yes. It is a single-phase, one-meter-position socket rated 600 volts AC at 60 hertz and 200 continuous amps, which covers standard 120/240V single-phase residential and light commercial services. For a three-phase service or for a building needing multiple meters in one enclosure, this is the wrong socket.
6) What size hub does the Milbank U9865 ringless meter socket take?
It ships with a large hub opening adapted down to a small hub opening, so the large knockout is fitted with a reducing plate for a smaller hub. If your mast conduit needs the full large opening, that plate comes off; if you are running a smaller conduit size, the adapter is already there. The hub itself is a separate item, sized to your conduit.
7) What does lever bypass do on a meter socket, and do I actually need it?
Lever bypass lets the meter be pulled and swapped without dropping power to the building. You throw the lever, current routes around the meter jaws, and the meter comes out live-free. Many utilities require it on 200A services, and property managers running occupied units want it so a meter change is not an outage. If your utility does not require bypass, a non-bypass socket is the simpler order.
8) Can the Milbank U9865 be mounted outdoors on an exterior wall?
Yes. The enclosure carries a Type 3R rating and is UL Listed, which covers outdoor rain and weather exposure on a surface-mounted exterior wall. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance. Type 3R is not washdown or dust-tight, so it is not the choice for a hose-down or high-dust industrial area.
9) What is the difference between a ringless meter socket and a ring-type one?
A ringless socket uses a cover that slips over the meter and is sealed by the utility, with no separate locking ring clamping the meter to the socket. Ring-type uses that band. The two are not interchangeable at the cover, so your utility specifies one or the other for the territory. The Milbank U9865 is ringless, which is the common spec across much of the country.
10) What keeps the meter jaws isolated inside the Milbank U9865 socket?
The jaw assembly is mounted on glass polyester insulation, which holds its dielectric strength and dimensional stability under sustained 200A load and the heat that comes with it. That matters on a bypass socket, where the lever mechanism and jaws sit close together in the same enclosure.
