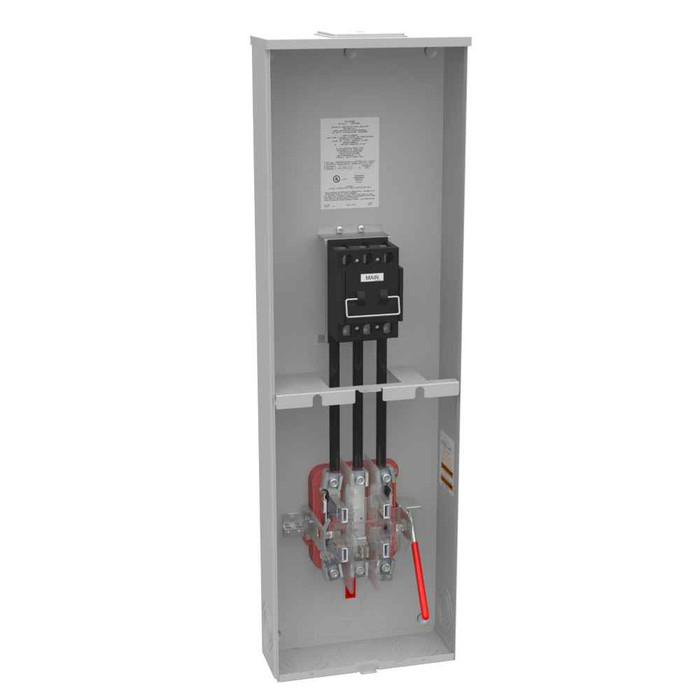

Milbank U5765-X-200 Ringless Meter Main 5 Terminal, 200A, Lever Bypass, 480V Cold Sequence

Milbank Ringless Meter Socket with Main Breaker 200A 5-Terminal Lever Bypass 480V Cold Sequence

(No reviews yet) Write a Review

Model: U5765-X-200-TF

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,771.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Ringless Meter Socket with Main Breaker 200A 5-Terminal Lever Bypass 480V Cold Sequence

Professional electrical metering and main disconnect solution

The Milbank Ringless Meter Socket with Main Breaker delivers reliable 200 continuous ampere service with integrated main disconnect protection. This single-position meter socket features 5-terminal configuration with lever bypass provision for service continuity during maintenance. Built with G90 galvanized steel construction and powder coat finish for durability, this UL Listed Type 3R unit accommodates both overhead and underground cable entry for versatile installation applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides robust electrical service capacity for demanding residential and commercial applications with reliable current handling.
  • 5-Terminal Configuration: Enables flexible wiring arrangements and enhanced electrical connections for complex service requirements.
  • Lever Bypass Provision: Allows safe meter removal and service continuity during maintenance operations without interrupting power to critical loads.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in harsh environmental conditions.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and provides protection against weather conditions for outdoor installations.
  • Overhead/Underground Cable Entry: Accommodates diverse installation requirements with flexible cable entry options for various service configurations.
  • Single 200A Main Breaker: Integrates main disconnect protection with convenient overcurrent protection and service disconnect capability.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: One 200 Ampere Main Breaker
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Product Family Code: COLBD
  • Product Height: 43 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Width: 13 IN

Professional Applications

  • Residential Service Entrance Applications
  • Commercial Building Electrical Service
  • Multi-Unit Residential Properties
  • Small Commercial and Retail Facilities
  • Industrial Facility Electrical Distribution
  • Utility Company Metering Requirements
  • Electrical Contractor Service Installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed safety compliance and Type 3R environmental protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance for dependable electrical service in demanding applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
One 200 Ampere Main Breaker
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Product Family Code:
COLBD
Product Height:
43 IN
Product Type:
Meter Main Combination
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Single Mechanical
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
5
Product Group:
Power Distribution

Milbank U5765-X-200-TF – Frequently Asked Questions

1) Will the Milbank U5765-X-200 meter socket work on a 480V 3-phase service?
The U5765-X-200 is a 5-terminal, cold sequence ringless meter main rated 200 continuous amperes at 60 Hz. The 5-jaw socket is the configuration utilities specify for 480V 3-phase service metering. If your service is single phase 120/240V, that uses a 4-jaw socket instead, so a 5-terminal unit is the wrong part for it.
2) What is the difference between the main breaker and the pullout/T-fuse versions of the Milbank U5765-X-200?
Three builds are offered. U5765-X-200-CB carries one 200 ampere main breaker for disconnect plus overcurrent protection. U5765-X-200-TF uses a pullout with T-fuse disconnect instead, where the fusing provides the overcurrent protection and the pullout is the means of disconnect. U5765-X-200-CB-AMS is the main breaker build in an Ameren approved version. Which one you can install is dictated by the serving utility's requirements, not by preference.
3) Which Milbank 200A meter main do I order for an Ameren service territory job?
Order U5765-X-200-CB-AMS. That is the Ameren approved main breaker build of the 200 amp 5-terminal ringless meter main. The plain U5765-X-200-CB is the same socket and breaker without the Ameren approval designation, so if the utility inspector is checking the approved equipment list, specify the AMS part.
4) Can the meter be pulled for testing without killing power to the building?
Yes. The U5765-X-200 includes a lever bypass, so the socket jaws can be bypassed and the meter removed while the load stays energized. That is what utilities and property managers want on a commercial service where you cannot drop power to pull a meter for change-out or testing.
5) Can this meter socket be fed from an underground lateral, or is it overhead only?
Both. Cable entry is rated overhead or underground, and the unit ships with a large closing plate at the hub opening. For an overhead drop you remove the closing plate and install the appropriate service entrance hub; for an underground feed the closing plate stays in place and you bring conductors in from the bottom. The hub itself is a separate item.
6) How much wall space do I need for the Milbank U5765-X-200, and how does it attach?
The enclosure measures 43 inches high by 13 inches wide and is surface mounted, so you need a flat structural wall or unistrut backing of at least that footprint plus working clearance in front of the disconnect. It is not a flush or semi-flush unit.
7) Is this Milbank meter main rated for outdoor mounting on an exterior wall?
It is UL Listed and Type 3R rated, which is the rainproof enclosure rating for outdoor service equipment. The shell is G90 galvanized steel with a powder coat finish for corrosion resistance. Type 3R is not a washdown or submersion rating, so keep it out of locations subject to direct hose spray or flooding.
8) Does a ringless meter socket need a different cover than a ring-type socket?
Yes, and they are not interchangeable. A ringless socket like the U5765-X-200 uses a hinged or lift-off cover that is secured directly to the enclosure and sealed by the utility, with no separate sealing ring. A ring-type socket uses a locking ring clamped around a smaller cover. Utilities generally specify one style or the other, so confirm your serving utility accepts ringless before ordering.
9) Is the 200 amp rating on this Milbank meter main continuous or a short-time rating?
200 continuous amperes. The socket and the single 200 ampere main breaker are both rated for continuous duty at that current, so it suits a full 200 amp service load rather than being derated for steady-state use.
