Milbank 200A 3-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$6,371.03

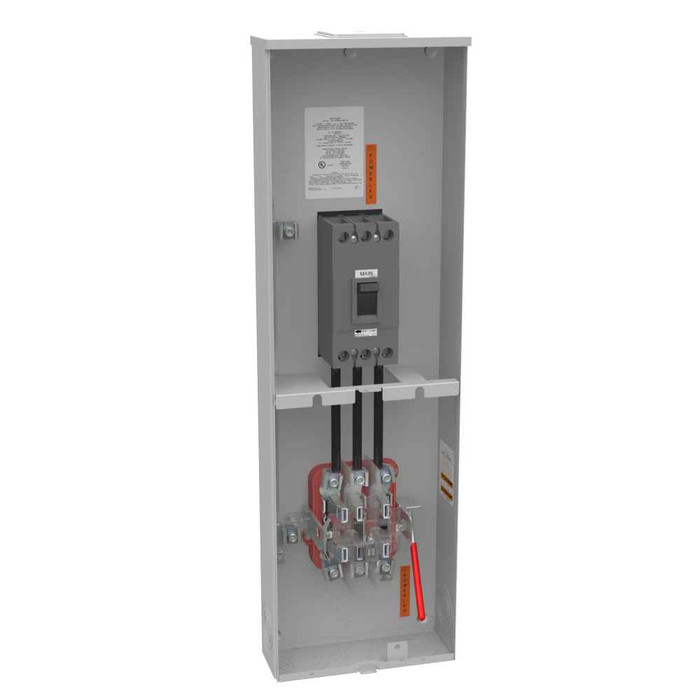

Milbank U5767 7 Terminal Ringless Meter Socket - Large Closing Plate Lever Bypass, 480V Cold Sequence

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 480V Cold Sequence Power Management System

(No reviews yet) Write a Review

Model: U5767-X-200-CB-BL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,371.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass - 480V Cold Sequence Power Management System

Professional 3-Phase Metering & Bypass Control Solution

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering and bypass functionality for commercial and industrial applications. Featuring robust G90 galvanized steel construction with powder coat finish, this UL Listed Type 3R unit provides 200 continuous ampere service rating with lever bypass capability for maintenance operations. The 7-terminal design accommodates overhead or underground cable entry with single mechanical terminals supporting 6 AWG to 350 kcmil wire range.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and light industrial applications with reliable current capacity.
  • 3-Phase 480V Operation: Supports high-voltage three-phase systems for efficient power distribution in commercial facilities.
  • Lever Bypass Provision: Enables safe maintenance operations by allowing meter removal while maintaining power continuity to downstream loads.
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and durability with powder coat finish for extended service life.
  • Type 3R Enclosure Rating: Offers weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: COLBD
  • Product Height: 43 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 480 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Building Electrical Service
  • Industrial Facility Power Distribution
  • Multi-Tenant Properties
  • Retail and Office Buildings
  • Light Manufacturing Facilities
  • Municipal and Institutional Buildings
  • Emergency Services Facilities

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The robust G90 galvanized steel enclosure with powder coat finish ensures long-term durability in demanding commercial environments, while the comprehensive grounding system and professional-grade terminals provide safe, code-compliant electrical connections for critical power distribution applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Load Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
COLBD
Product Height:
43 IN
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 480 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Single Mechanical
Number of Phases:
3
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
7
Product Group:
Power Distribution

Milbank U5767-X-200-CB-BL – Frequently Asked Questions

1) Will a Milbank U5767 meter socket work on a 480V three-phase service?
The U5767 ringless meter socket is built for 3-phase service rated up to 480 volts AC at 60 Hz, with a 7 terminal jaw configuration. Seven jaws is the standard count for a 3-phase 4-wire meter, so this is the socket for a 480/277V wye service, not for single phase. If the building is single phase 120/240, this is the wrong socket and you want a 4 jaw single phase unit instead.
2) What size conductors can I land in a Milbank 200A ringless meter socket?
Load side terminals on the U5767 take 6 AWG through 350 kcmil, single mechanical lugs. That covers the usual 200 amp copper and aluminum feeder sizes, including parallel-free 250 and 350 kcmil aluminum runs. Equipment grounding is handled by two barrel ground lugs in the can. The socket is rated 200 continuous amperes.
3) Can the meter be pulled on a Milbank U5767 without killing power to the building?
Yes, the U5767 carries a lever bypass. Throwing the lever keeps the load energized while the meter is out, which is what a utility or a service electrician needs for a meter swap or test without dropping the tenant. It is a single meter position socket, so the bypass covers the whole service.
4) What is the difference between the U5767-X-200-CB and the U5767-X-200-TF?
Both are 200A 480V cold sequence ringless sockets. The CB version comes with a main breaker as the service disconnect; the TF version uses a main pullout instead. Pick the breaker if you want a resettable disconnect the building staff can operate, the pullout if the utility or local practice calls for a fused pullout style disconnect. Either way there is one main device in the can.
5) Which Milbank U5767 do I order if the utility requires a barrel lock?
Order the U5767-X-200-CB-BL, which ships with the barrel lock bracket. The base socket is already punched for it, with a 9/16 inch knockout and an angle bracket provision for a barrel lock, so the BL version simply comes with the bracket fitted. There is also a U5767-X-200-CB-BL-NE variant built to New England utility requirements, and a U5767-X-200-CB-AMS for Ameren territory.
6) Can a Milbank U5767 meter socket be mounted outdoors on an exterior wall?
Type 3R rated and UL Listed, so the U5767 is built for outdoor wall mounting. The enclosure is G90 galvanized steel with a powder coat finish, and it is surface mount, meaning it hangs on the face of the wall rather than sitting flush in it. Plan for 43 inches of height and 13 inches of width on the wall.
7) Does the Milbank U5767 handle an underground service lateral, or is it overhead only?
Both. The U5767 accepts overhead or underground cable entry. For an overhead drop through the top you use a hub, and the socket ships with a large closing plate covering the hub opening when you are coming in from below on an underground lateral. The hub itself is sized to the raceway and ordered separately.
8) What does ringless mean on a Milbank meter socket, and does my utility allow it?
Ringless means there is no sealing ring around the meter; a hinged or lift-off cover holds the meter in place and the utility seals the cover. Ringed sockets clamp the meter with a separate ring. Utilities specify one or the other and they are not interchangeable in the field, so confirm which style your serving utility requires before ordering. The U5767 is ringless, and specific utility versions exist for Ameren and New England territories.
9) Is the Milbank U5767 a cold sequence socket, and what does that mean for the electrician?
All five U5767-X-200 configurations are 480V cold sequence. Cold sequence puts the disconnect ahead of the meter, so the meter socket jaws are dead once the main is opened. Hot sequence is the reverse and leaves the socket energized with the disconnect off. Some utilities mandate cold sequence for 480V services specifically for that reason, and this socket is built with one main device in the can to do it.
10) Will one Milbank U5767 meter socket serve more than one tenant?
No. The U5767 is a single meter position socket with no receptacles, so it meters one service. For a multi-tenant building where each unit needs its own meter, you need a multi-position meter stack or gang socket, not this can. Where the U5767 fits a multi-tenant property is metering the house or common-area service.
11) What UNSPSC code should I use to requisition a Milbank U5767 meter socket?
UNSPSC 39121102 covers the U5767 ringless meter socket. That is the code to drop into a government, healthcare, or institutional purchasing system so the line item classifies correctly against electrical distribution hardware.
