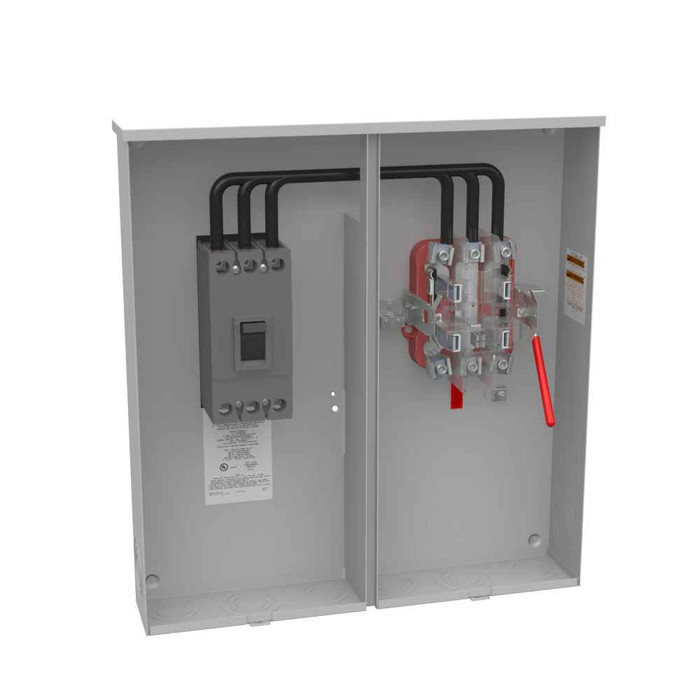

Milbank U5784–U5787 Ringless Meter Socket - Plain Top Lever Bypass, 200A Cold Sequence

Milbank 200A Ringless Meter Socket with Lever Bypass - Underground Entry Surface Mount

(No reviews yet) Write a Review

Model: U5785-O-200-CB-AMS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,584.78
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Ringless Meter Socket with Lever Bypass - Underground Entry Surface Mount

Professional metering solution with integrated bypass capability

The Milbank 200A Ringless Meter Socket delivers reliable electrical metering and service disconnect functionality with integrated lever bypass capability. Engineered with G90 galvanized steel construction and powder coat finish, this UL Listed Type 3R rated unit provides durable performance for underground cable entry applications with single mechanical terminals and glass polyester insulation.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Lever Bypass Provision: Enables safe meter removal and service continuity during maintenance operations without power interruption.
  • UL Listed Type 3R Rating: Meets rigorous safety standards and provides weather-resistant protection for outdoor installations.
  • G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-lasting durability in harsh environmental conditions.
  • Underground Cable Entry: Designed specifically for underground service applications with proper cable management and protection.
  • Single Mechanical Terminals: Provides secure, reliable electrical connections with simplified installation and maintenance access.
  • Glass Polyester Insulation: Ensures excellent electrical isolation and thermal performance for safe, reliable operation.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main
  • Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Product Family Code: COLBD
  • Product Height: 28 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Width: 26 IN

Professional Applications

  • Residential Service Entrance Applications
  • Light Commercial Metering Installations
  • Multi-Unit Residential Properties
  • Underground Service Connections
  • Utility Metering and Disconnect Requirements
  • Professional Electrical Service Upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant rating. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the comprehensive wire range compatibility from 6 AWG to 350 kcmil provides installation flexibility for diverse electrical service requirements.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Underground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Load Side Wire Range:
6 AWG - 350 kcmil
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Product Family Code:
COLBD
Product Height:
28 IN
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
26 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Single Mechanical
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Product Group:
Metering & Service Entrance

Milbank U5785-O-200-CB-AMS – Frequently Asked Questions

1) How do I know whether to order the 4, 5, or 7 terminal version of the Milbank U5784-U5787 meter socket?
Your serving utility decides that, and it comes down to the service type. The Milbank U578 ringless lever bypass sockets are built in 4 terminal (U5784-O-200-CB, U5784-O-200-TF), 5 terminal with the 5th terminal at 9 o'clock (U5784-O-200-5T-CB), 5 terminal with the 5th terminal at 6 o'clock (U5785-O-200-CB, U5785-O-200-TF), and 7 terminal (U5787-O-200-CB, U5787-O-200-TF) configurations. The 5th terminal position matters because the utility's meter and the socket jaw layout have to agree, so pull the terminal count and clock position off the utility's approved meter socket list before you order.
2) What is the difference between the CB and TF versions of the Milbank 200A meter socket?
The suffix tells you the disconnect. CB versions (U5784-O-200-CB, U5785-O-200-CB, U5787-O-200-CB) carry a 200A main circuit breaker, so you get an overcurrent device plus a disconnect in one enclosure. TF versions (U5784-O-200-TF, U5785-O-200-TF, U5787-O-200-TF) use a 200A main pullout instead, which is a fused pullout style disconnect. Either way there is one main device in the can.
3) Can I use this Milbank socket for an overhead service drop?
No. The U578 series here is built for underground cable entry, with the bottom feed arrangement that goes with a lateral. For a weatherhead and overhead drop you need a socket with a hub or top entry provision, not this one.
4) Is this Milbank meter socket rated for outdoor wall mounting?
Yes. It is UL Listed with a Type 3R enclosure rating, so it is suited to outdoor wet locations on an exterior wall, and it surface mounts rather than recessing into the wall. The can is G90 galvanized steel with a powder coat finish for corrosion resistance.
5) Which Milbank U578 version do I order for an Ameren or BGE territory job?
Utility specific versions are built. For Ameren, order U5784-O-200-5T-CB-AMS, U5785-O-200-CB-AMS, or U5787-O-200-CB-AMS depending on terminal count. For Baltimore Gas and Electric, the 7 terminal version is U5787-O-200-CB-BGE. These carry the utility's required modifications, so on a job in those territories the standard version may be rejected at inspection.
6) How much wall space do I need for this Milbank 200A socket with main?
Plan for an enclosure 28 inches in height by 26 inches in width, mounted on the surface of the wall. Leave the usual working clearance in front and enough room below for the underground conductors to sweep up into the bottom of the can.
7) What does ringless with lever bypass mean, and why would the utility require it?
Ringless means the cover holds the meter in place instead of a sealing ring clamping it, which is what most utilities now specify. The lever bypass lets the meter be pulled and reinstalled without dropping power to the customer, so the utility or the meter tech can swap or test a meter with the load still served. If your utility's spec sheet calls for ringless lever bypass, this U578 series matches.
8) Does this Milbank meter socket come with a barrel lock provision?
One version is built for it: U5787-O-200-CB-BL, the 7 terminal breaker model, ships with the barrel lock bracket. The series also provides a 9/16 inch knockout and angle bracket for a barrel lock. If your utility seals with a barrel lock rather than a wire seal, specify the BL version.
9) Can I feed more than one unit or add a receptacle from this Milbank meter socket?
No. It is a single position socket with one meter and one main device, and no receptacle is built into the enclosure. For a duplex or multi unit building where each tenant is metered separately, you need a multi position meter stack rather than this single socket.
10) Is the insulation in this Milbank socket suitable for a hot, humid coastal install?
The jaw insulation is glass polyester, which holds up electrically and thermally in service conditions, and the enclosure is G90 galvanized steel with a powder coat over it for corrosion resistance in a Type 3R outdoor location.
