Milbank 6-Position Ringless Me...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,192.33

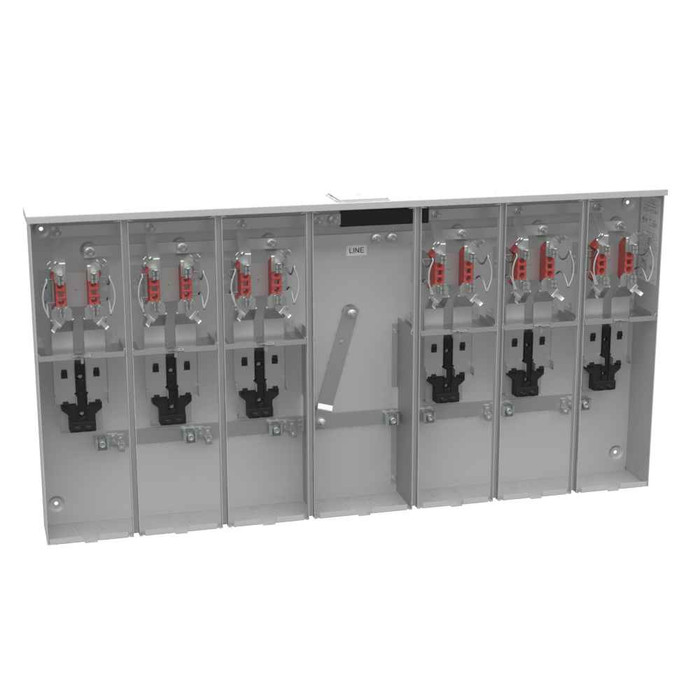

Milbank U5906-X 4 Terminal Ringless Meter Socket Large Closing Plate 6 Position 6-125 Ampere Main Breaker Provision 22K AIC

Milbank 6-Position Ringless Meter Socket with Main Breaker Provision 100A 1-Phase G90 Galvanized Steel

(No reviews yet) Write a Review

Model: U5906-X-KK-PED-CECHA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,192.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 6-Position Ringless Meter Socket with Main Breaker Provision

Professional Multi-Tenant Electrical Metering Solution

The Milbank 6-Position Ringless Meter Socket delivers reliable multi-tenant electrical metering with 100 continuous ampere rating and 1-phase 240V AC capability. Constructed with G90 galvanized steel and powder coat finish for durability, this surface-mount unit features 4-terminal ringless design with large closing plate and ground lug equipment grounding. UL Listed with Type 3R rating for versatile indoor/outdoor applications.

Professional Features & Benefits

  • 100 Continuous Ampere Rating: Provides reliable power capacity for multi-unit residential and light commercial applications
  • 6-Position Configuration: Accommodates multiple meters in a single compact unit for efficient space utilization
  • 4-Terminal Ringless Design: Simplifies installation with secure connections without requiring ring terminals
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in various environments
  • Type 3R Rating: Ensures reliable performance in outdoor applications with protection against weather conditions
  • Main Breaker Provision: Allows for future main breaker installation to enhance electrical protection and control
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations

Technical Specifications

  • Amperage Rating: 100 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: Breaker Provision
  • Number Branch Circuits: 6
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 6 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: CU12
  • Product Height: 30 IN
  • Product Length: 5.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current

Professional Applications

  • Multi-Unit Residential Properties
  • Apartment Buildings and Condominiums
  • Commercial Multi-Tenant Facilities
  • Mixed-Use Developments
  • Light Industrial Multi-Meter Applications
  • Property Management Electrical Systems
  • Municipal Housing Authority Projects

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while the 4-terminal ringless design and large closing plate provide professional installation convenience and secure connections for demanding multi-tenant applications.

Manufacturer Resources

Product Specs

Amperage Rating:
100 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
Breaker Provision
Number Branch Circuits:
6
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
6 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
CU12
Product Height:
30 IN
Product Length:
5.125 IN
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
100
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
4

Milbank U5906-X-KK-PED-CECHA – Frequently Asked Questions

1) Will the Milbank U5906-X 6-position meter socket work for a 6-unit apartment building on 120/240V single phase?
That's exactly the application it's built for. The U5906-X carries six meter positions and six branch circuits, wired 1-phase at up to 240 volts AC, 60 Hertz, with a 100 continuous ampere rating. Each position uses a 4-terminal jaw configuration, which is the standard single-phase residential meter socket arrangement. If your building is three-phase or needs 5-jaw network metering, this is the wrong socket.
2) Does the Milbank U5906-X come with a main breaker installed?
No. The U5906-X ships with a breaker provision only, and the main breaker count is zero. You get the space and mounting to add a main later, but the breaker itself is a separate purchase sized to your service. Order it with the socket if the drawing calls for a main, otherwise the job stops at rough-in.
3) Can a Milbank U5906-X ringless meter socket be mounted outdoors on an exterior wall?
Yes. It's Type 3R rated and UL Listed, so it handles outdoor wall mounting with rain and weather exposure. The enclosure is G90 galvanized steel with a powder coat finish for corrosion resistance, and it's a surface mount unit, so it lands flat on the wall rather than recessing into it. Type 3R does not cover washdown or submersion.
4) What size service conductors will land in a Milbank U5906-X meter socket?
The line side terminals take 6 AWG through 350 kcmil, which covers everything from a small 100A feed up to a full parallel-free 350 copper or aluminum service lateral. Equipment grounding is by ground lug. Barrier insulation is glass polyester.
5) Can the Milbank U5906-X be fed from an underground lateral, or is it overhead only?
Either one. Cable entry is rated overhead or underground, and it ships with a large closing plate over the hub opening. For an overhead drop you knock out the top and fit a hub or weatherhead raceway; for an underground service you leave the closing plate in position and bring the lateral in from below. The hub itself is not included with the socket.
6) What is the difference between the Milbank U5906-X options, like the KK, BL and BLG suffixes?
Six configurations sit under the U5906-X. Plain U5906-X is the base socket. U5906-X-KK adds horn bypass, which lets the utility pull a meter under load without dropping the other tenants. The -KK-BL adds a 9/16 inch barrel lock provision and the -KK-BLG a 7/8 inch barrel lock provision, so the barrel size has to match the lock your utility uses. U5906-X-KK-K1-PED is horn bypass on a pedestal mount with a single connector, and U5906-X-KK-PED-CECHA is the pedestal version approved for Commonwealth Edison and Chicago Housing Authority work. Confirm which one your serving utility accepts before you order, since the bypass and lock provision are not field-added.
7) Which Milbank U5906-X version do I order for a ComEd or Chicago Housing Authority job?
The U5906-X-KK-PED-CECHA is the one built to that approval: horn bypass, pedestal mount, and Commonwealth Edison / Chicago Housing Authority acceptance. On CHA and ComEd-served multifamily work the utility will reject a socket that isn't on their approved list, so the CECHA variant is the one that passes inspection and gets energized. The other five U5906-X configurations do not carry that designation.
8) Can I put a 200 amp service on the Milbank U5906-X?
No. The U5906-X is rated 100 continuous amperes, and that's the ceiling for the socket regardless of what the tenant panels draw. A 200A service needs a socket rated for it. Also note there are no receptacles built into this unit, so if the spec calls for a house receptacle at the meter bank, that's a separate device.
9) Do I need a pedestal or can the Milbank 6-position socket go on a building wall?
Both paths exist. The standard U5906-X is a surface mount unit that fastens to a wall or backboard. If there's no wall to mount to, as on a mobile home park, a detached garage feed, or a lot where the service lands away from the structure, the pedestal versions (U5906-X-KK-K1-PED and U5906-X-KK-PED-CECHA) are the free-standing arrangement. Pick the mounting before you set the service conduit, not after.
10) How much wall space does a Milbank U5906-X 6-gang meter socket need?
Plan on 30 inches for the product height and 5.125 inches for the product length. Working clearance in front of the socket is set by code, not by the enclosure, so lay it out with that clearance in mind and leave room below for the service raceway or lateral.
11) What does ringless mean on a meter socket, and why would I choose it over a ring-type?
Ringless means the meter is retained by a hinged or bolted cover rather than a separate sealing ring clamped around the meter rim. Utilities that specify ringless want the cover sealed rather than the ring, and the U5906-X's large closing plate is part of that arrangement. It's not an upgrade over ring-type, it's a utility preference: the serving utility decides which one they will accept, and installing the wrong style means pulling it back off the wall. Check the utility's service requirements before ordering either one.
12) Is horn bypass worth adding on a multi-tenant meter bank?
On a six-unit bank it usually is. Horn bypass lets the utility or a qualified tech pull one meter while the socket stays energized, so you aren't dropping the other five tenants to change a meter or test a position. That matters on occupied apartments and on any property where a scheduled outage means notices and complaints. The U5906-X-KK and all the pedestal and barrel lock variants carry the bypass; the plain U5906-X does not. It isn't a field retrofit, so decide at order time.
13) Which barrel lock size do I need on a Milbank meter socket, 9/16 or 7/8?
That's set by the utility's lock, not by preference. The U5906-X-KK-BL is drilled for a 9/16 inch barrel lock and the U5906-X-KK-BLG for a 7/8 inch barrel lock. Order the one matching the barrel locks your serving utility carries; the provision is punched at the factory, so the wrong size means the utility can't secure the socket at turn-on.
14) Will a Milbank U5906-X hold up on a coastal or exposed outdoor installation?
The enclosure is G90 galvanized steel with a powder coat finish, which is the standard corrosion package for outdoor utility gear, and it carries a Type 3R rating for weather exposure. Glass polyester insulation handles the barrier duty. Type 3R is rain, sleet and ice protection, not a marine or corrosive-atmosphere rating, so a heavy salt or chemical environment calls for a stainless or 4X enclosure instead.
