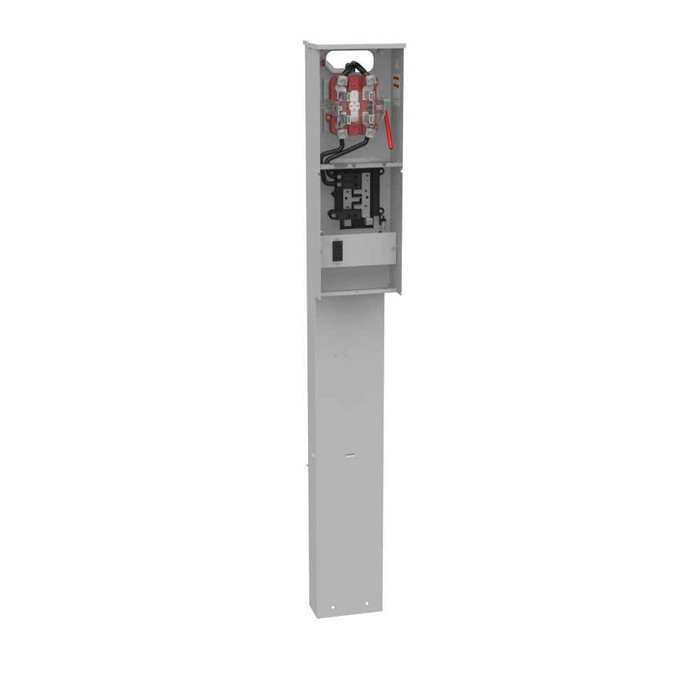

Milbank 200 Amp Single Phase Ringless Meter Socket with Lever Bypass and Main Breaker Pedestal

Milbank 200 Amp Single Phase Ringless Meter Socket with Lever Bypass and Main Breaker Pedestal

Professional electrical metering solution with integrated main breaker protection

The Milbank 200 Amp Single Phase Ringless Meter Socket delivers reliable electrical metering and distribution with integrated lever bypass functionality and main breaker protection. This pedestal-mounted unit features aluminum construction with powder coat finish, Type 3R enclosure rating for outdoor applications, and UL Listed certification for professional installations requiring up to 240 volts alternating current service.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial electrical capacity for residential and light commercial applications with reliable current handling.
• Lever Bypass Provision: Enables safe meter removal and replacement without service interruption for maintenance flexibility.
• Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and outdoor environmental conditions.
• Aluminum with Powder Coat Finish: Corrosion-resistant material and finish ensure long-term durability in outdoor installations.
• 4 Terminal Ringless Design: Simplifies installation with lay-in terminals accommodating 6 AWG to 350 kcmil wire range.
• UL Listed Certification: Meets rigorous safety standards for code compliance and professional installation confidence.
• Integrated Main Breaker Protection: Dual main breakers provide overcurrent protection and service disconnect capability.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Underground
• Departent: Electrical
• Equipment Ground: 4 Barrel Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Number Branch Circuits: 6
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 2
• Number Of Meter Positions: Single Power Head
• Number Of Receptacles: 1
• Phase: 1 Phase
• Product Family Code: PHDO
• Product Height: 80 IN
• Product Length: 10 IN
• Product Material: Aluminum with Powder Coat Finish
• Product Mounting: Pedestal
• Product Size: 10L x 11W x80H
• Product Type: Ringless Meter Socket
• Receptacle Configuration: One NEMA 5-20 Ground Fault
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 11 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service entrance installations
• Small commercial and retail facility metering
• Multi-unit residential properties
• Professional office buildings
• Light industrial facilities
• Outdoor electrical distribution systems
• Underground service applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The aluminum construction with powder coat finish ensures long-term performance in demanding outdoor environments, while the comprehensive grounding system and glass polyester insulation provide enhanced safety and durability for professional electrical installations.
