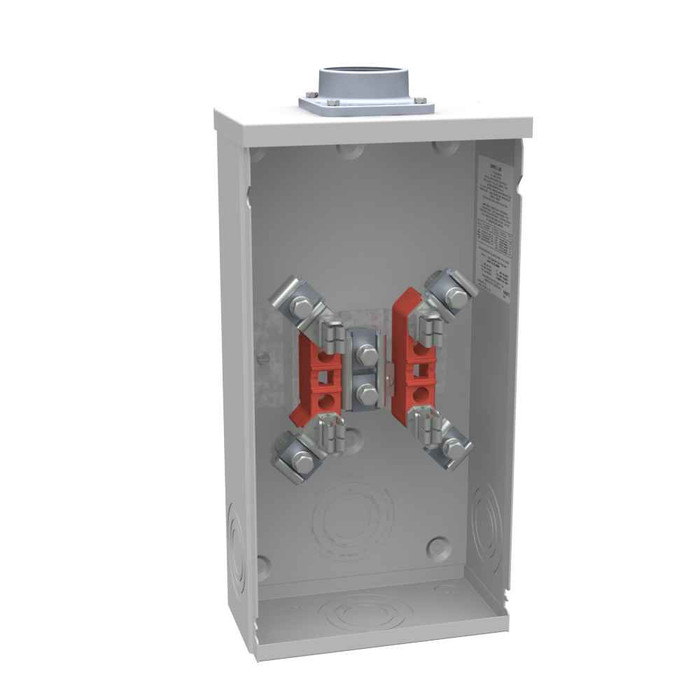

Milbank U7017 4 Terminal Ring Type Meter Socket - Triplex Ground Hub Configurations

Milbank 200A 1-Phase Ring Type Meter Socket with Triplex Ground Hub Configuration

(No reviews yet) Write a Review

Model: U7017-DL-TG-LR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$222.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ring Type Meter Socket with Triplex Ground Hub Configuration

Professional electrical metering solution with overhead cable entry and surface mount design

The Milbank 200A 1-Phase Ring Type Meter Socket delivers reliable electrical metering performance with 200 continuous ampere capacity and 600V AC rating. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this surface mount meter socket provides durable overhead cable entry with triplex ground hub configuration for professional electrical installations.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in outdoor environments.
  • Type 3R Enclosure Rating: Ensures protection against rain, sleet, and ice formation for reliable outdoor performance.
  • 4 Terminal Ring Type Design: Offers secure electrical connections with lay-in terminals accommodating 6 AWG to 350 kcmil wire range.
  • Triplex Ground Hub Configuration: Provides proper grounding connection for overhead service applications with enhanced safety.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
  • Glass Polyester Insulation: Delivers excellent electrical insulation properties and thermal stability for consistent performance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead
  • Departent: Electrical
  • Equipment Ground: Triplex Ground
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 15.5 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 8W x15.5H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Residential Service Entrance Metering
  • Small Commercial Building Electrical Service
  • Multi-Unit Residential Properties
  • Professional Office Buildings
  • Retail Establishments
  • Light Industrial Facilities
  • Overhead Service Drop Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R enclosure protection, ensuring dependable performance in demanding electrical metering applications. The G90 galvanized steel construction with powder coat finish provides long-term durability and corrosion resistance for professional installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead
Equipment Ground:
Triplex Ground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
15.5 IN
Product Length:
4.125 IN
Product Size:
4.125L x 8W x15.5H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ring Type Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U7017-DL-TG-LR – Frequently Asked Questions

1) Will the Milbank U7017 meter socket work for an overhead service drop, or do I need an underground-entry socket?
The U7017 is built for overhead service. Cable entry is overhead through a hub at the top, and each version carries a triplex ground for the overhead service drop. If your service lateral comes up from underground, this is the wrong socket for you; you want an underground/lug-entry meter socket instead.
2) What is the difference between the U7017-DL-TG, U7017-DL-TG-LR, and U7017-RL-TG?
All three are the same 200A single-phase 4-terminal ring type socket, differing in the hub and sealing. The U7017-DL-TG has a 2 inch hub with triplex ground. The U7017-DL-TG-LR is the same 2 inch hub configuration supplied less the seal ring. The U7017-RL-TG has a small hub opening with triplex ground and an external hex. Pick the hub size that matches your service raceway, and confirm with the utility whether they want the socket supplied with or without the seal ring.
3) Does the Milbank U7017 meter socket include a main breaker or bypass?
No. It is a no-bypass socket with no main breaker and zero breaker positions, so overcurrent protection has to live downstream in your panel. If your utility requires a lever bypass for hot meter pulls, this socket will not satisfy that requirement.
4) What size conductors can I land in the Milbank 200A ring type meter socket?
Line and load terminals both take 6 AWG through 350 kcmil, and they are lay-in type, so you drop the conductor in rather than threading it through a hole. That range covers typical 200A copper and aluminum service entrance conductors on both sides.
5) Is this a 4-jaw or 5-jaw meter socket, and will my utility accept it?
The U7017 is a 4-terminal (4-jaw) single-phase socket rated 200A continuous at 600V AC, 60 Hz, with one meter position. Utilities that require a 5-jaw socket for a 120/208V network service will not accept a 4-jaw. Check the meter form your utility specifies before ordering.
6) Can the Milbank U7017 meter socket be mounted outdoors on an exterior wall?
Yes. It is a surface mount enclosure with a Type 3R rating for outdoor use against rain, sleet and ice, built from G90 galvanized steel with a powder coat finish, and it is UL Listed. It bolts flat to the wall surface; there is no flush/recessed trim for this one.
7) How much wall space does the Milbank U7017 meter socket need?
The enclosure measures 4.125 inches long by 8 inches wide by 15.5 inches high. Allow clearance above it for the hub and overhead service conductors, and keep the meter face within the working-height window your utility specifies.
8) Why does the Milbank U7017 come in a ring type version, and what does that mean for the meter?
Ring type means the meter is retained by a sealing ring clamped around the socket rim, which is what most utilities in ring-type territories require. The U7017-DL-TG-LR ships less that ring, so order it only if your utility supplies its own ring. In ringless territory a ring type socket will be rejected.
9) Can I use this Milbank socket on a three-phase service?
No. The U7017 is single phase only, with four terminations in one meter position. A three-phase service needs a 7-jaw (or utility-specified) three-phase socket instead.
10) What insulates the jaws in the Milbank U7017 socket?
Glass polyester carries the meter jaws. It holds up thermally and electrically under continuous 200A loading, which matters on a socket feeding a full residential or light commercial service with no bypass to relieve it.
