Milbank 200A 1-Phase Ring Type...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$241.18

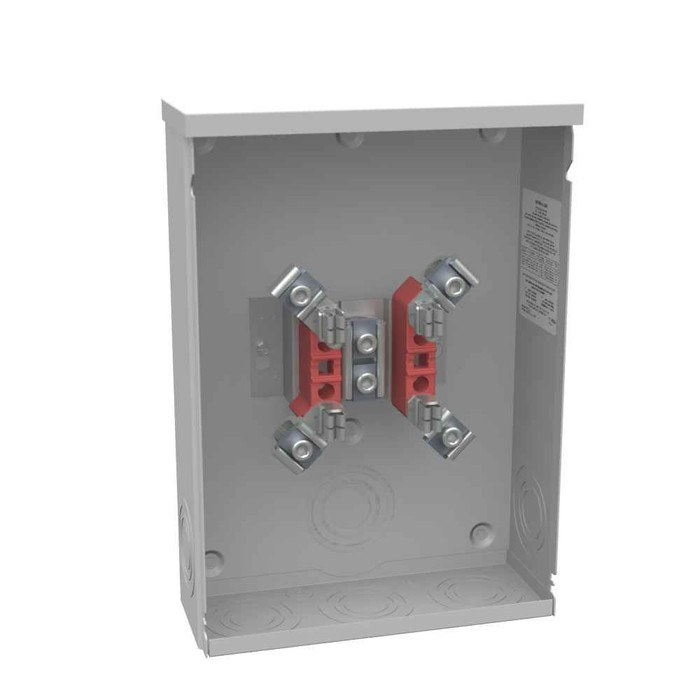

Milbank U8878 4 Terminal Ring Type Meter Socket - Less Seal Ring Configurations

Milbank 200A 1-Phase Ring Type Meter Socket with 4 Terminal Configuration

(No reviews yet) Write a Review

Model: U8878-RL-LR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$241.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ring Type Meter Socket with 4 Terminal Configuration

Professional electrical metering solution for residential and commercial applications

The Milbank 200A 1-Phase Ring Type Meter Socket delivers reliable electrical metering with professional-grade construction. Featuring a 4 terminal configuration with 200 continuous ampere rating, this UL Listed meter socket provides secure surface mounting with G90 galvanized steel construction and powder coat finish for long-lasting durability in Type 3R rated environments.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • 4 Terminal Ring Type Design: Provides secure meter connections with lay-in terminal configuration for professional installation flexibility.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life.
  • Type 3R Weather Rating: Ensures reliable outdoor performance with protection against rain, sleet, and ice formation.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
  • 600V AC Voltage Rating: Accommodates standard electrical service voltages with 60 Hz frequency compatibility.
  • Surface Mount Design: Simplifies installation with versatile mounting options for various application requirements.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Departent: Electrical
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 15.5 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 11W x15.5H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 11 IN

Professional Applications

  • Residential electrical service metering installations
  • Small commercial and retail facility power monitoring
  • Multi-unit residential properties requiring individual metering
  • Professional office buildings and service centers
  • Light industrial facilities with single-phase power requirements
  • Electrical contractor and utility company installations

Why Choose Milbank Quality?

Milbank meter sockets provide dependable electrical metering solutions with UL Listed safety certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term reliability in demanding electrical service applications, delivering the professional performance contractors and utilities trust.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
15.5 IN
Product Length:
4.125 IN
Product Size:
4.125L x 11W x15.5H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
11 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Product Details:
Ring Type Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U8878-RL-LR – Frequently Asked Questions

1) Will the Milbank U8878 meter socket work on a 200A single-phase residential service?
Yes. The Milbank U8878 is a 4 terminal ring type socket rated 200 continuous amperes, single phase, 600V AC at 60 Hz, with one meter position. That covers a standard 120/240V single-phase residential or light commercial service at 200A. Note there is no main breaker and no bypass built in, so overcurrent protection has to live elsewhere in the service.
2) Does the U8878 meter socket have a lever bypass or a main breaker?
No to both. The U8878 is a straight meter socket only: no bypass provision and zero main breakers. If your utility requires a horn or lever bypass for hot meter pulls, or if the jurisdiction wants a meter-main combination with the disconnect in the same enclosure, this is the wrong can and you need a bypass or meter-main version instead.
3) What size conductors can I land in the Milbank U8878 meter socket?
Both line and load terminals take 6 AWG through 350 kcmil, and they are lay-in style terminals, so you drop the conductor in rather than threading it through a lug barrel. That range covers typical 200A service conductors in copper or aluminum. Four terminations total.
4) Difference between the U8878-O-LR plain top and the U8878-RL-LR small hub open wide shell?
Two build options on the same 4 terminal 200A socket. The U8878-O-LR has a plain top, so you make your own conduit entry or bring service up from below. The U8878-RL-LR comes with a small hub opening and wide shell, which suits an overhead drop where you need a hub fitting in the top. Electrical guts are identical; pick based on how the service conductors arrive.
5) Can this Milbank meter socket be mounted outdoors on an exterior wall?
Yes. It is surface mount and carries a Type 3R rating, which is the outdoor rating for rain, sleet and ice. The enclosure is G90 galvanized steel with a powder coat finish, and it is UL Listed. Mount it flat to the wall or a meter board; it is not a flush or recessed can.
6) Is the U8878 a ring type or ringless meter socket, and does it ship with the seal ring?
It is a ring type socket, meaning the meter is retained by a sealing ring around the cover rather than a ringless cover that clamps the meter. The U8878 configurations are less seal ring, so the ring itself is a separate item, typically supplied by the serving utility. Confirm your utility accepts ring type before ordering, since many specify one style or the other.
7) Why is it a 4 terminal socket and what service does that match?
Four jaws is the standard arrangement for a single-phase 3-wire 120/240V service: two line jaws and two load jaws, with the neutral bonded separately. A 5 jaw socket is used for network or three-phase applications, so if your utility spec calls for 5 or 7 jaws, this 4 terminal unit will not satisfy it.
8) What is the insulating material behind the meter jaws on this Milbank socket?
Glass polyester. That is the molded insulating base the jaws are mounted to, chosen for dielectric strength and heat resistance in an outdoor 600V, 200A socket.
9) Does this socket include any receptacles for a generator or accessory?
No. The U8878 has zero receptacles. It is a bare metering can with one meter position and four terminals, nothing else. Generator interlock or transfer needs a separate device.
10) What UNSPSC code should I use for the Milbank U8878 on a purchase order?
UNSPSC 39121102 covers this meter socket, and the Milbank family code is 4T20. Those two plus the MPN (U8878-O-LR or U8878-RL-LR) are what procurement systems usually want.
