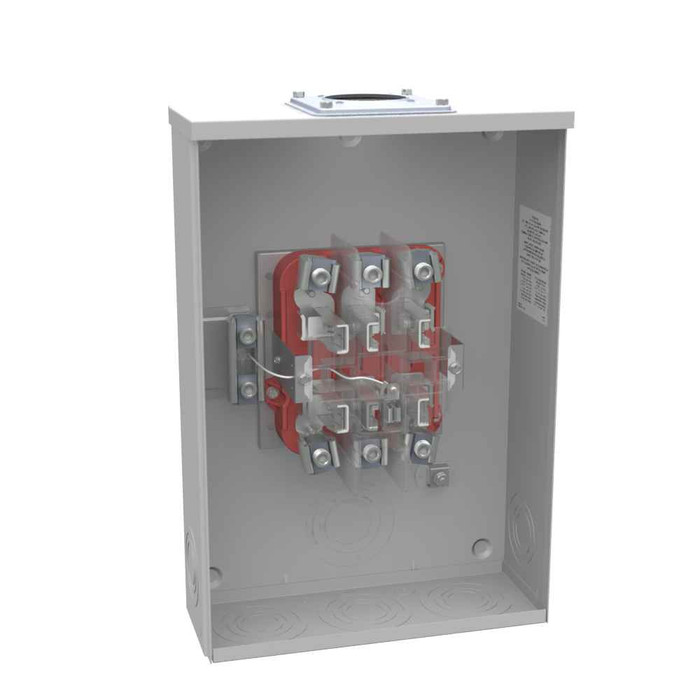

Milbank U3328-RXL 7 Terminal Ring Type Large Hub Open Adapt To Small Closing Plate

Milbank 200A 3-Phase Ring Type Meter Socket with 7 Terminal Configuration

(No reviews yet) Write a Review

Model: U3328-RXL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$745.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ring Type Meter Socket with 7 Terminal Configuration

Professional metering solution for commercial and industrial applications

The Milbank 200A 3-Phase Ring Type Meter Socket delivers reliable electrical metering for commercial and industrial installations. Featuring a robust 7 terminal configuration with 200 continuous ampere rating, this UL Listed Type 3R meter socket accommodates both overhead and underground cable entry. Constructed with G90 galvanized steel and powder coat finish for superior durability and corrosion resistance.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for commercial and industrial metering applications with reliable performance.
  • 3-Phase Configuration: Supports three-phase power systems commonly required in commercial facilities and industrial operations.
  • 7 Terminal Design: Provides comprehensive connection points for complex metering configurations and multiple circuit requirements.
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and ice formation.
  • G90 Galvanized Steel Construction: Superior corrosion resistance and structural integrity with powder coat finish for extended service life.
  • UL Listed Certification: Meets rigorous safety standards ensuring code compliance and reliable operation in professional installations.
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Grounding Stud
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Hub Opening Adapted to Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: HD7T
  • Product Height: 19 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x19H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Building Electrical Service
  • Industrial Facility Power Distribution
  • Multi-Tenant Properties
  • Retail and Office Buildings
  • Manufacturing Facilities
  • Warehouse and Distribution Centers
  • Municipal and Government Buildings

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability in demanding commercial and industrial environments, while the comprehensive 7 terminal configuration provides flexibility for complex metering requirements.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Grounding Stud
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Hub Opening Adapted to Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
HD7T
Product Height:
19 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x19H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Large Hub Opening Adapted To Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
3
Product Details:
Ring Type Meter Socket
Frequency:
60 hertz
Number of Terminations:
7
Product Group:
Power Distribution

Milbank U3328-RXL – Frequently Asked Questions

1) Is the Milbank U3328-RXL meter socket the right one for a 3-phase 4-wire service?
The U3328-RXL is a 7 terminal, 3 phase socket rated 200 continuous amps at 600 VAC, 60 Hz, with a single meter position. Seven jaws is the standard count for 3-phase 4-wire network metering. If your utility calls for a 6 jaw or 5 jaw socket, this is not the one to order, since the jaw count has to match the meter form the utility sets.
2) Does this Milbank 200A socket have a main breaker or bypass built in?
No on both counts. The U3328-RXL is a straight meter socket: no main breaker, no bypass provision, and no receptacles. Overcurrent protection has to come from a separate disconnect or panel downstream. If your utility requires a lever bypass for hot meter changes, you need a different socket.
3) Can this meter socket be mounted outdoors, and can I feed it from underground?
Type 3R rated and UL Listed, so it is built for outdoor wall mounting with protection against rain and ice. It surface mounts, and it accepts either overhead or underground service entry, so the same can works for a mast drop or a lateral coming up from below.
4) Is this a ringless socket or does it use a sealing ring?
Ring type. The U3328-RXL uses a seal ring around the meter, not a ringless cover. Utilities specify one or the other and they are not interchangeable in the field, so if your local utility standard calls for ringless, this socket will be rejected at inspection.
5) What hub does this Milbank socket come with for the service raceway?
It has a large hub opening adapted to a small closing plate. In practice that means the top opening is sized large but comes covered down to a smaller plate, so you select the hub that matches your conduit size when you open it up. Ordering the correct hub separately is part of the job.
6) How is this meter socket grounded, and what is it built out of?
There is a grounding stud in the enclosure for the equipment ground connection. The can itself is G90 galvanized steel with a powder coat finish, and the jaw insulation is glass polyester, which is what holds up to heat and tracking at the meter jaws over years outdoors.
7) Can I use this Milbank socket on a 480V 3-phase commercial service?
The voltage rating is 600 volts AC, so 480Y/277 and 208Y/120 three phase systems both fall within it at up to 200 continuous amps, 60 Hz. The meter form your utility assigns still has to be a 7 jaw form for the socket to accept it.
