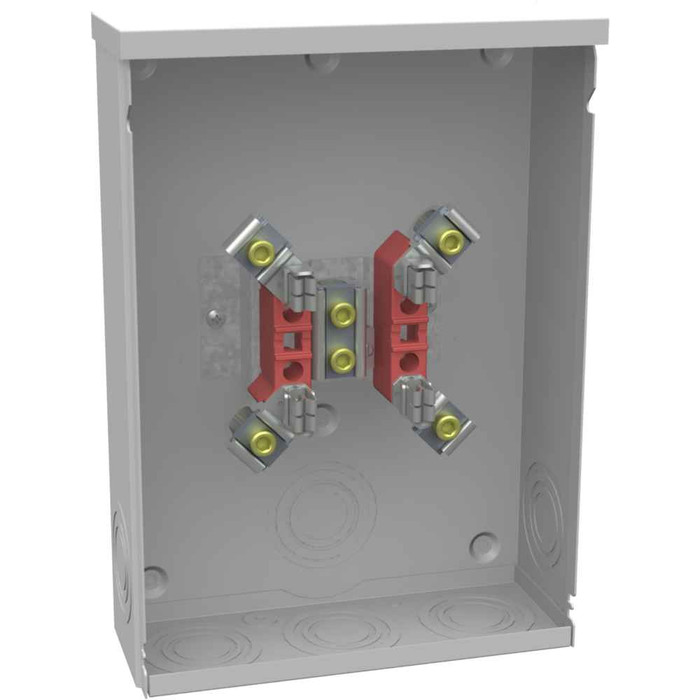

Milbank U4518 200A Ring Type Meter Sockets | 4 & 5 Terminal | 1-Phase 600V

Milbank 200A Ring Type Meter Socket 1-Phase 600V with 4 & 5 Terminal Configuration

(No reviews yet) Write a Review

Model: U4518-XL-TG-5TW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$357.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Ring Type Meter Socket 1-Phase 600V with 4 & 5 Terminal Configuration

Professional electrical metering solution for residential and commercial applications

The Milbank 200A Ring Type Meter Socket delivers reliable single-phase electrical metering with 600V rating and flexible 4 & 5 terminal configuration. Constructed with G90 galvanized steel and powder coat finish in a Type 3R enclosure, this surface-mount meter socket provides durable performance for outdoor installations. Features glass polyester insulation and accommodates wire ranges from 6 AWG to 350 kcmil on both line and load sides with lay-in terminal design for professional installation.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • 600V AC Rating: Provides voltage flexibility for various electrical system configurations and future expansion needs.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-term durability in outdoor environments.
  • Type 3R Enclosure Rating: Ensures protection against rain, sleet, and ice formation for reliable outdoor performance.
  • Flexible Wire Range (6 AWG - 350 kcmil): Accommodates various conductor sizes for versatile installation requirements.
  • Glass Polyester Insulation: Provides excellent electrical insulation properties and thermal stability for safe operation.
  • UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Departent: Electrical
  • Equipment Ground: Triplex Ground
  • Frequency Rating: 60 Hertz
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T20
  • Product Height: 15.5 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 11W x15.5H
  • Product Type: Ring Type Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 11 IN

Professional Applications

  • Residential electrical service installations
  • Small commercial and retail facilities
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial applications
  • Electrical service upgrades and replacements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The robust G90 galvanized steel construction with powder coat finish ensures long-term performance in demanding outdoor environments, while the professional lay-in terminal design facilitates efficient installation and maintenance.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Equipment Ground:
Triplex Ground
Frequency Rating:
60 Hertz
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T20
Product Height:
15.5 IN
Product Length:
4.125 IN
Product Size:
4.125L x 11W x15.5H
Product Type:
Ring Type Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
11 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ring Type Meter Socket
Product Group:
Power Distribution

Milbank U4518-XL-TG-5TW – Frequently Asked Questions

1) Do I need the 4-terminal or 5-terminal version of the Milbank U4518 meter socket?
That depends on what your utility requires. The Milbank U4518 is offered as a 4-terminal plain top (U4518-O-W), a 4-terminal with small closing plate (U4518-XL-TG-5TW), and a 5-terminal triplex ground configuration (U4518-XL-W). Four-terminal sockets are the common single-phase 3-wire arrangement; the fifth terminal is used where the utility meters a network or requires the extra terminal. Call the serving utility first, because the socket has to match their meter and their approved list.
2) What size conductors will fit the Milbank U4518 200A meter socket terminals?
Both line and load terminals take 6 AWG through 350 kcmil, and they are lay-in type, so you drop the conductor in rather than threading it through a lug barrel. That range covers typical 200A service conductors in copper or aluminum. The socket is rated 200 continuous amperes at 600V AC, 60 Hz.
3) Is a main breaker or bypass included in the Milbank U4518?
No. The U4518 is a socket only, with no bypass provision and no main breaker, and it has zero receptacles. Overcurrent protection has to come from a separate main breaker panel or service disconnect downstream. If the utility or local inspector requires a lever bypass for hot meter pulls, this is the wrong socket and you need a bypass-equipped model instead.
4) Can the Milbank U4518 meter socket be installed outdoors on an exterior wall?
Yes. It is a Type 3R enclosure, which is rated for rain, sleet and ice, and it is UL Listed. The shell is G90 galvanized steel with a powder coat finish, and it mounts to the surface of the wall. No flush or recessed trim is involved.
5) Will a Milbank U4518 work on a 3-phase service?
No. It is a single-phase socket with one meter position, rated 600V AC at 60 Hz. For a three-phase service you need a 3-phase socket with the correct terminal count for that metering arrangement.
6) How much wall space does the Milbank U4518 meter socket take up?
The enclosure measures 4.125 L x 11 W x 15.5 H inches, so figure roughly an 11 by 15-1/2 inch footprint on the wall with about 4-1/8 inches of standoff from the surface. Leave your normal working clearance in front of the meter per local code.
7) Does the Milbank U4518 come with the seal ring, or do I buy that separately?
The seal ring is included. Both 4-terminal options, U4518-O-W and U4518-XL-TG-5TW, are listed as including the seal ring. It is a ring type socket, so the utility's meter is retained by that ring and sealed, as opposed to a ringless socket where a cover does the job.
8) Is the Milbank U4518 suitable for a 200 amp residential service upgrade?
It fits that job, yes, provided your utility accepts a ring type socket. It is rated 200 continuous amperes, single phase, with 6 AWG to 350 kcmil terminals that cover standard 200A service conductors, and a Type 3R outdoor enclosure. You still need a separate service disconnect or main breaker panel, since there is no main breaker in the socket.
9) What is the difference between the plain top and the small closing plate version of the U4518?
Both are 4-terminal sockets with a seal ring. U4518-O-W has a plain top, meaning no factory opening for a hub. U4518-XL-TG-5TW comes with a small closing plate, which covers the top opening until you need to fit a hub or raceway entry there. Pick based on whether your service entrance comes in through the top of the enclosure.
10) How is the grounding handled in the Milbank U4518 socket?
The socket is built with a triplex ground, and the U4518-XL-W is specifically the 5-terminal triplex ground configuration. Insulation inside the enclosure is glass polyester, which carries the terminal assemblies.
