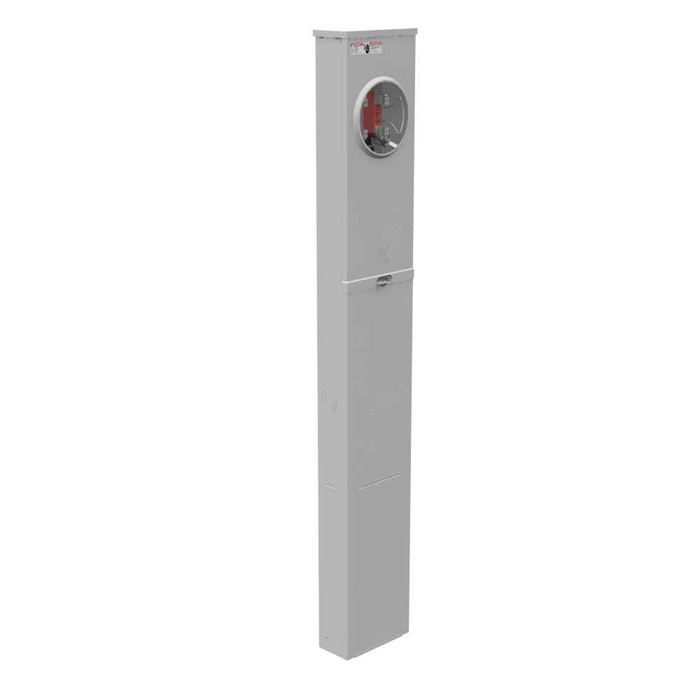

Milbank U8436-O-CECHA 4 Terminal Ringless Plain Top Horn Bypass Single Pedestal Direct Bury CECHA Approved

Milbank 200A Single Phase Ringless Meter Socket with Horn Bypass - Direct Bury Pedestal Mount CECHA Approved

(No reviews yet) Write a Review

Model: U8436-O-CECHA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$779.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Single Phase Ringless Meter Socket with Horn Bypass - Direct Bury Pedestal Mount CECHA Approved

Professional utility metering solution for underground service applications

The Milbank 200A Single Phase Ringless Meter Socket delivers reliable utility metering with horn bypass capability for direct bury pedestal installations. Featuring G90 galvanized steel construction with powder coat finish and Type 3R weatherproof rating, this CECHA approved meter socket provides durable performance for single position metering applications with 600V AC service capability and glass polyester insulation.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Horn Bypass Design: Enables meter removal and replacement without service interruption, reducing downtime and maintenance complexity.
  • Type 3R Weatherproof Rating: Provides protection against rain, sleet, and ice formation for dependable outdoor installation performance.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for extended service life.
  • Direct Bury Pedestal Mount: Simplifies underground installation with integrated pedestal design eliminating need for separate mounting hardware.
  • UL Listed Certification: Ensures compliance with safety standards and code requirements for professional electrical installations.
  • CECHA Approval: Meets Commonwealth Edison Chicago Housing Authority specifications for approved utility applications.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: UPED
  • Product Height: 62 IN
  • Product Length: 4.12 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 4.12L x 9W x62H
  • Product Type: Ringless Meter Socket
  • Special Features: Commonwealth Edison Chicago Housing Authority
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 9 IN

Professional Applications

  • Residential Underground Service Connections
  • Multi-Unit Housing Developments
  • Commercial Building Utility Metering
  • Municipal Housing Authority Projects
  • Underground Distribution Systems
  • Utility Company Approved Installations

Why Choose Milbank Quality?

Milbank meter sockets provide proven reliability with UL Listed certification and Type 3R weatherproof protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability, while CECHA approval demonstrates compliance with utility authority standards for professional electrical installations.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Underground
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
UPED
Product Height:
62 IN
Product Length:
4.12 IN
Product Size:
4.12L x 9W x62H
Product Type:
Ringless Meter Socket
Special Features:
Commonwealth Edison Chicago Housing Authority
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
9 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank U8436-O-CECHA – Frequently Asked Questions

1) Will the Milbank U8436-O-CECHA meter socket work for an underground service lateral?
Underground is exactly what the U8436-O-CECHA is built for. Cable entry is underground, and the socket sits on a direct-bury pedestal, so the service conductors come up through the pedestal rather than through a weatherhead. The top is a plain top with no hub opening, so there is no provision for overhead conduit entry. For an overhead drop you want a socket with a hub closing plate opening instead.
2) What size service conductors can I land in a Milbank 200A pedestal meter socket?
Line side terminals take 6 AWG through 350 kcmil, and they are lay-in type, so you drop the conductor into the terminal rather than threading it through a hole. That range covers the usual 4/0 aluminum and 2/0 copper 200 amp service runs with room on either side. Grounding is handled by a 2 barrel ground lug.
3) Does this Milbank meter socket have a main breaker or do I need a separate disconnect?
No main breaker, and no provision for one. The U8436-O-CECHA is a socket only, one meter position, four jaws, so overcurrent protection and the service disconnect have to live downstream in the panel or in a separate disconnect enclosure. There are also no receptacles built into the pedestal. If you need the disconnect integral to the pedestal, you are looking at a meter-main pedestal instead, not this one.
4) What is horn bypass and do I need it on a meter socket?
Horn bypass lets the utility keep the load energized while the meter is pulled, so service is not interrupted for a meter change or test. Many utilities require bypass on 200 amp sockets and will not set a meter without it. The U8436-O-CECHA is supplied with horn bypass as built, not as an add-on. If your utility specifically calls for lever bypass, horn bypass is not an accepted substitute, so check the utility's approved equipment list.
5) How tall is the Milbank U8436 pedestal and how much of it is above grade?
Overall the pedestal measures 4.12 x 9 x 62 inches. That 62 inch figure is the full height of the unit including the buried portion, so the meter face ends up considerably lower than 62 inches once the pedestal is set to the utility's burial depth. Plan trench depth and meter height off your utility's setting requirement, not off the overall height.
6) Will a direct bury meter pedestal hold up in the ground and outdoors year round?
The enclosure is G90 galvanized steel with a powder coat finish and carries a Type 3R rating, which covers rain, sleet and ice formation. Internal insulation is glass polyester. That combination is the standard spec for an outdoor, direct bury utility pedestal. Type 3R is not a submersible or watertight rating, so the pedestal is meant for a properly drained excavation, not standing water.
7) Is the Milbank U8436-O-CECHA UL Listed, and what does the CECHA suffix mean?
UL Listed, with a Type 3R enclosure rating. The CECHA suffix identifies the unit as built to the Commonwealth Edison and Chicago Housing Authority specification, which is why it shows in the model number as U8436-O-CECHA. If you are working an authority-approved job in that territory, the suffix is the part that matters at inspection. Outside that territory the base socket ratings still apply, but verify it appears on your own utility's approved list.
8) Do I need to buy separate mounting hardware or a rack for this meter socket?
The pedestal is integral to the socket, so there is no wall rack, unistrut or backboard to buy. It sets directly in the ground. What is not included is anything downstream: with no main breaker and no receptacles in the unit, you still need the service disconnect, overcurrent protection, and whatever conduit and fittings the underground run requires.
9) Can I use one of these pedestals to meter more than one unit in a multi-family building?
One meter position only. For a duplex, fourplex or any multi-unit development you need one pedestal per meter, or a ganged multi-position pedestal built for the count. Property managers standardizing a small development often set several single-position pedestals because each one keeps its own 6 AWG to 350 kcmil lay-in line terminals and its own ground lug, which keeps each service separate.
