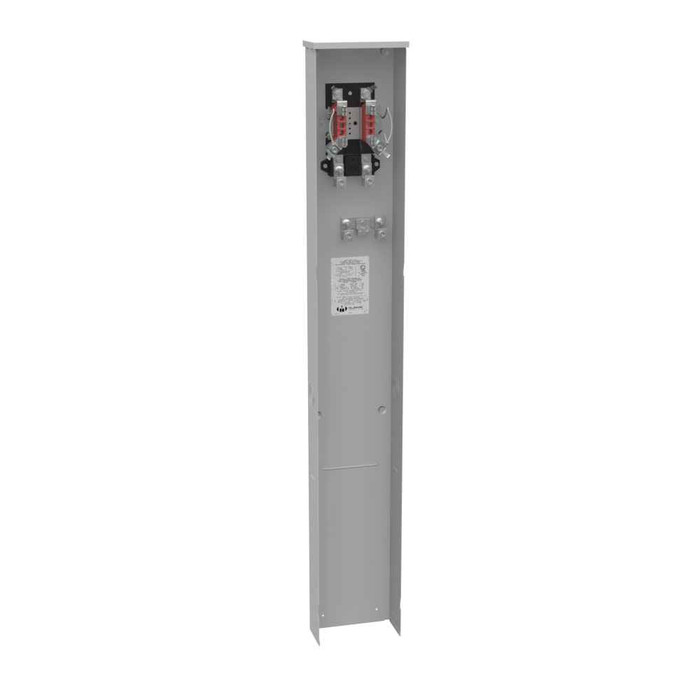

Milbank U3358-O-KK 4 Terminal Ringless Plain Top Horn Bypass Single Pedestal Direct Bury

Milbank 200A Single Phase Ringless Meter Socket with Horn Bypass - Direct Bury Pedestal Mount

(No reviews yet) Write a Review

Model: U3358-O-KK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$858.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Single Phase Ringless Meter Socket with Horn Bypass - Direct Bury Pedestal Mount

Professional electrical metering solution for underground service applications

The Milbank 200A Single Phase Ringless Meter Socket delivers reliable electrical metering with horn bypass capability for direct bury pedestal installations. Constructed with G90 galvanized steel and powder coat finish, this UL Listed Type 3R enclosure provides durable outdoor performance. The 4-terminal design accommodates 6 AWG to 350 kcmil wire ranges on both line and load sides, with single mechanical terminals and 2 barrel ground lugs for secure connections.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
  • Horn Bypass Provision: Enables temporary power continuity during meter maintenance or replacement without service interruption.
  • G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in outdoor environments.
  • Type 3R UL Listed Enclosure: Meets stringent safety standards for outdoor use with protection against rain, sleet, and ice formation.
  • Direct Bury Pedestal Design: Simplifies underground installation with 62-inch height for proper meter accessibility and code compliance.
  • Flexible Wire Range Capacity: Accommodates 6 AWG to 350 kcmil conductors on both line and load sides for versatile connection options.
  • Glass Polyester Insulation: Ensures reliable electrical isolation and performance in varying environmental conditions.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Horn Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 2 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: UPED
  • Product Height: 62 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 4.125L x 9W x62H
  • Product Type: Ringless Meter Socket
  • Special Features: Alliant Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Width: 9 IN

Professional Applications

  • Residential electrical service metering for single-family homes and small multi-unit properties
  • Light commercial facilities requiring reliable outdoor metering solutions
  • Underground electrical service installations in residential developments
  • Utility company metering applications with horn bypass requirements
  • Replacement installations for existing pedestal-mounted meter sockets
  • New construction projects requiring Type 3R outdoor electrical equipment

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and robust G90 galvanized steel construction with powder coat finish. The professional-grade materials and 60 Hertz frequency rating ensure dependable performance in demanding outdoor environments, backed by comprehensive technical specifications for confident installation and long-term service.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Horn Bypass
Cable Entry:
Underground
Equipment Ground:
2 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
UPED
Product Height:
62 IN
Product Length:
4.125 IN
Product Size:
4.125L x 9W x62H
Product Type:
Ringless Meter Socket
Special Features:
Alliant Energy
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
9 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Pedestal
Terminal Type:
Single Mechanical
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
4
Product Group:
Power Distribution

Milbank U3358-O-KK – Frequently Asked Questions

1) Will the Milbank U3358-O-KK meter pedestal work for a 200A underground residential service?
That is exactly what it is built for. The U3358-O-KK is a 200 continuous amp, single phase, 4 terminal ringless meter socket on a direct bury pedestal, with underground cable entry and one meter position. Line and load lugs both take 6 AWG through 350 kcmil, so typical 4/0 aluminum or 2/0 copper 200A service conductors land without adapters. Note there is no main breaker in it, so the disconnect has to come from elsewhere in the installation.
2) Does this Milbank pedestal meter socket include a main breaker or disconnect?
No. The U3358-O-KK is a meter socket only, with zero main breakers and no receptacles. It meters the service and nothing else. If you need overcurrent protection or a service disconnect at the pedestal, you are looking at the wrong unit, you want a metered pedestal with an integral breaker section instead.
3) Is this Milbank socket ringless, and will my utility accept that?
It is a ringless socket, which means the cover itself is sealed to the enclosure rather than clamped by a separate sealing ring. Utilities specify one or the other in their service handbook and the two covers are not interchangeable. If your serving utility's spec sheet calls for a ring type socket, this one will fail inspection and you need a ring type equivalent of the same 200A, 4 terminal, single phase configuration.
4) What is the difference between the standard U3358-O-KK and the Alliant Energy version?
Two versions are offered: the standard U3358-O-KK and the U3358-O-KK-ALT built to Alliant Energy's requirements. Electrically they are the same 200A single phase 4 terminal ringless horn bypass pedestal. If you are installing in Alliant Energy territory, order the ALT part so the unit matches the utility's approved list; anywhere else, the standard version is the one to take.
5) How tall does the Milbank U3358 pedestal stand and how much of it gets buried?
Overall the enclosure and pedestal measure 4.125 in deep by 9 in wide by 62 in high. It is a direct bury design, meaning the lower portion of the pedestal goes into the trench or concrete and the remaining height carries the meter up to reading level. Set your burial depth so the meter center lands at the height your serving utility requires, since that dimension is set by the utility, not by the socket.
6) What is horn bypass on a meter socket and do I need it?
Horn bypass gives the meter tech a way to keep power flowing to the load while the meter itself is pulled, so the customer does not go dark during a meter change or test. Many utilities mandate it on 200A services. The U3358-O-KK includes horn bypass as built. If your utility does not require bypass, a non bypass socket of the same amperage is the simpler order, but a bypass socket is never rejected for having it.
7) Can this Milbank pedestal be installed outdoors in rain and snow?
Yes. It is UL Listed with a Type 3R enclosure rating, the outdoor rating for protection against rain, sleet and ice. The body is G90 galvanized steel with a powder coat finish, which is what holds up at grade level where a direct bury pedestal sits in splash, snow melt and lawn chemicals.
8) Can I bring conduit in through the top of this meter pedestal?
No. The top is a plain top with no hub opening, and cable entry is underground. Conductors come up through the base of the pedestal from the trench. If your installation needs an overhead or side conduit entry, a plain top pedestal socket is the wrong choice and you want a hub style unit.
9) Is a 4 terminal socket right for a standard 120/240V residential service?
Yes. A 4 terminal (4 jaw) single phase socket at 60 Hz is the normal configuration for a 120/240V, 3 wire residential or light commercial service. If your service is three phase or the utility calls for a 5 jaw or 7 jaw socket, this unit will not accept that meter and you need the matching jaw count.
10) How do I land the grounding electrode conductor in this Milbank socket?
Two barrel ground lugs are provided in the enclosure for equipment grounding and bonding connections. Line and load terminals are single mechanical lugs rated 6 AWG to 350 kcmil each. The internal barriers are glass polyester, which is what keeps the phase terminals isolated inside the can.
11) I need the UNSPSC code for this meter socket for our procurement system.
The Milbank U3358-O-KK carries UNSPSC 39121102. Product family code is UPED, Milbank's underground pedestal line.
