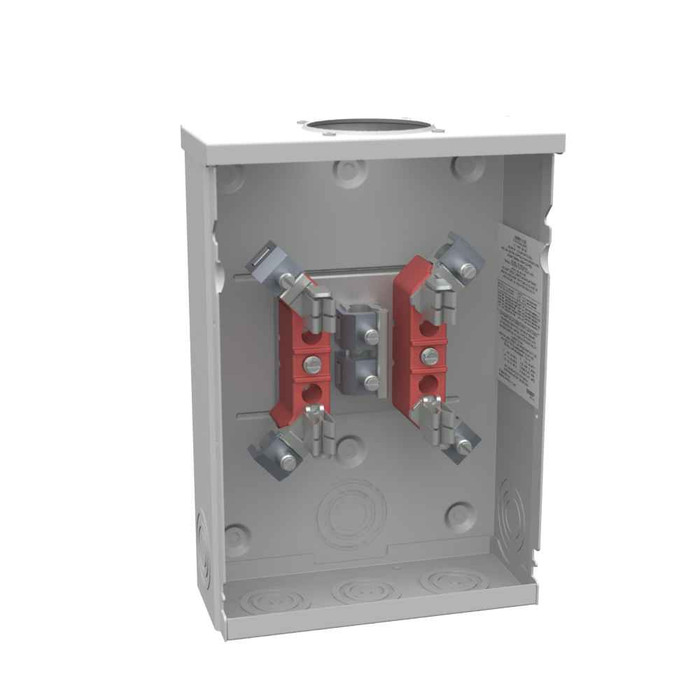

Milbank 125 Amp 1-Phase Ring Type Meter Socket with Small Hub Opening

Milbank 125 Amp 1-Phase Ring Type Meter Socket with Small Hub Opening

Professional electrical metering solution for residential and commercial applications

The Milbank 125 Amp 1-Phase Ring Type Meter Socket delivers reliable electrical metering with professional-grade construction. Featuring G90 galvanized steel with powder coat finish and Type 3R rating, this surface-mount meter socket accommodates overhead or underground cable entry with 4 terminal lay-in connections. The small hub opening design provides versatile installation options while maintaining UL Listed safety standards for 600V AC applications.

Professional Features & Benefits

• 125 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability in outdoor environments.
• Type 3R Weather Rating: Ensures reliable operation in rain, sleet, and snow conditions for outdoor installations.
• 4 Terminal Ring Type Design: Simplifies wiring connections with lay-in terminals accommodating 6-2/0 AWG wire range.
• Overhead/Underground Cable Entry: Offers installation flexibility for various service entrance configurations.
• UL Listed Safety Certification: Meets rigorous safety standards for professional electrical installations.
• Single Position Meter Socket: Provides dedicated metering point for accurate electrical consumption monitoring.

Technical Specifications

• Amperage Rating: 125 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Triplex Ground
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Hub Opening
• Insulation: Glass Polyester
• Line Side Wire Range: 6 - 2/0 AWG
• Load Side Wire Range: 6 - 2/0 AWG
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T12
• Product Height: 11.5 IN
• Product Length: 3.313 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 3.313L x 8W x11.5H
• Product Type: Ring Type Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 8 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Small Commercial Building Electrical Service
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail Establishments
• Light Industrial Facilities
• Utility Company Metering Requirements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed safety certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor environments, while the professional-grade glass polyester insulation provides dependable electrical performance for years of service.
