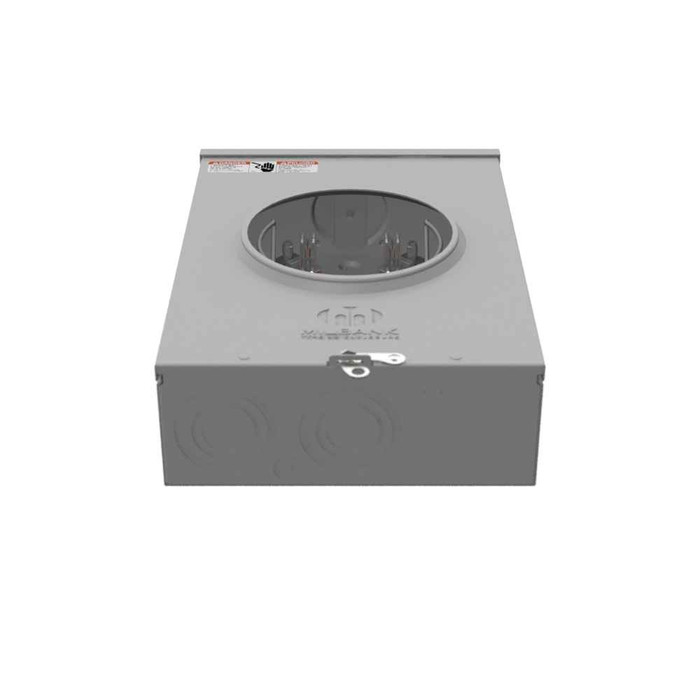

Milbank U7588-XL 4 Terminal Ringless Small Closing Plate 125 Ampere

Milbank 125 Amp 1 Phase Ringless Meter Socket with Small Closing Plate

(No reviews yet) Write a Review

Model: U7588-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$233.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 125 Amp 1 Phase Ringless Meter Socket with Small Closing Plate

Professional electrical metering solution with durable construction

The Milbank 125 Amp 1 Phase Ringless Meter Socket delivers reliable electrical metering performance with G90 galvanized steel construction and powder coat finish. This UL Listed Type 3R rated unit features 4 terminal lay-in connections, accommodating 6-2/0 AWG wire ranges for both line and load sides. The surface mount design with small closing plate provides versatile installation options for overhead or underground cable entry applications.

Professional Features & Benefits

  • 125 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service applications
  • 1 Phase 600V AC Operation: Compatible with standard single-phase electrical systems for reliable power distribution
  • G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-lasting durability in outdoor environments
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and protection against weather conditions
  • 4 Terminal Lay-in Design: Simplifies installation with secure wire connections for 6-2/0 AWG conductors
  • Overhead or Underground Entry: Accommodates flexible cable routing options for diverse installation requirements
  • Ringless Configuration: Eliminates the need for meter rings while maintaining secure meter retention

Technical Specifications

  • Amperage Rating: 125 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Triplex Ground
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 - 2/0 AWG
  • Load Side Wire Range: 6 - 2/0 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: 4T12
  • Product Height: 15.5 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 11W x15.5H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 11 IN

Professional Applications

  • Residential electrical service installations
  • Small commercial and retail facilities
  • Multi-unit residential properties
  • Professional office buildings
  • Light industrial applications
  • Utility company metering requirements
  • Electrical contractor installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed Type 3R certification and durable G90 galvanized steel construction with powder coat finish. The glass polyester insulation and triplex ground equipment ensure long-term performance in demanding electrical service applications.

Manufacturer Resources

Product Specs

Amperage Rating:
125 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Triplex Ground
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 - 2/0 AWG
Load Side Wire Range:
6 - 2/0 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
4T12
Product Height:
15.5 IN
Product Length:
4.125 IN
Product Size:
4.125L x 11W x15.5H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
125
Product Width:
11 IN
Department:
Electrical
Product Subgroup:
Electrical

Milbank U7588-XL – Frequently Asked Questions

1) Will the Milbank U7588-XL 125A meter socket work on a 200 amp residential service?
No. The U7588-XL is rated 125 continuous amperes, so it can only serve an installation where the utility and the service equipment are sized at 125A or less. A 200A service needs a 200A-rated socket. It is also a 4 terminal, single position, 1 phase socket rated 600V AC at 60 Hz, which covers standard residential and light commercial single-phase service only.
2) What size service entrance conductors can I land in the Milbank U7588-XL meter socket?
Both line and load terminals take 6 AWG through 2/0 AWG, and they are lay-in type terminals, so you drop the conductor into the jaw rather than threading it through a lug barrel. That range covers the usual copper and aluminum SE cable sizes used on a 125A single-phase service. Anything larger than 2/0 will not land.
3) Ringless versus ring-type meter socket, which one does my utility require?
That is a utility call, not a product preference. Ringless sockets like the Milbank U7588-XL use a cover that retains the meter directly, with no separate sealing ring, and many utilities specify ringless exclusively while others require ring-type. Check the serving utility's meter equipment spec before ordering, because a ringless can cannot be converted to ring-type in the field.
4) Can I use the U7588-XL for an underground service lateral, or is it overhead only?
Either. The U7588-XL is built for overhead or underground cable entry. It ships with a small closing plate over the hub opening, so for an overhead drop you pull that plate and fit the appropriate hub; for an underground feed you leave the top closed and bring conduit in through the bottom.
5) Does the Milbank 125A ringless socket include a main breaker or a bypass lever?
Neither. It is a meter socket only, with no main breaker and no bypass provision, so overcurrent protection has to come from a separate main breaker or disconnect downstream. If the utility requires a horn bypass or lever bypass for hot meter pulls, this is not the right can.
6) Is this Milbank meter socket rated for outdoor mounting on an exterior wall?
Yes. The U7588-XL carries a Type 3R rating and is UL Listed, which covers outdoor wall mounting with protection against rain and falling weather. The can is G90 galvanized steel with a powder coat finish for corrosion resistance, and the internal insulation is glass polyester.
7) What are the dimensions of the Milbank U7588-XL meter socket for planning wall space?
It measures 4.125 inches deep by 11 inches wide by 15.5 inches high, and it is a surface mount enclosure, so it bolts flat to the wall rather than setting into it. Allow working clearance in front and enough room below for the conduit bend if you are coming up from grade.
8) Is a 4 jaw socket right for a standard 120/240V residential meter?
Yes. Four terminals is the normal configuration for single-phase 120/240V self-contained residential and light commercial metering, which is what the U7588-XL is built for. Five jaw sockets are used for network or certain three-wire network services, and seven jaw for three-phase, so if your utility spec calls for 5 or 7 jaws this one will not take the meter.
9) Does the Milbank U7588-XL have a grounding provision for a triplex service?
It comes with a triplex ground connection, so the bare messenger of a triplex overhead drop lands in the can. There are no receptacles in this enclosure, it is a single meter position with nothing else built in.
