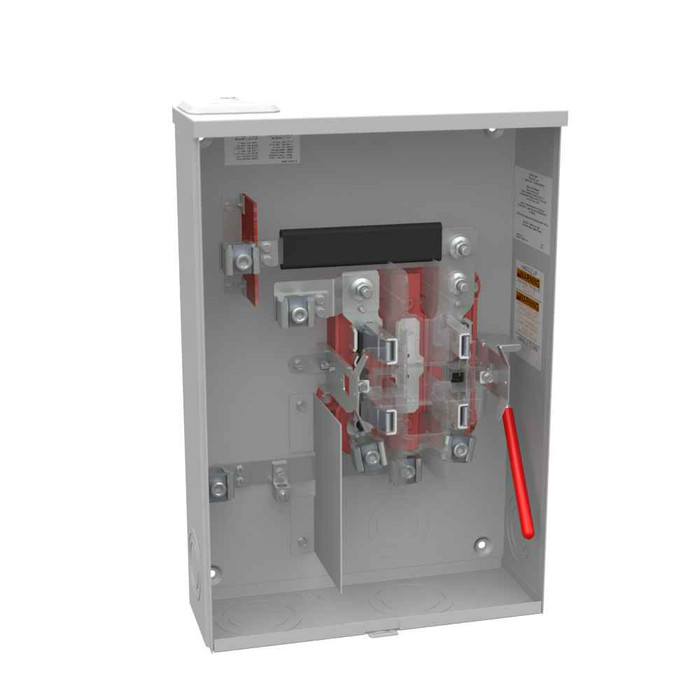

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Small Closing Plate

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Small Closing Plate

Professional metering solution with integrated bypass functionality

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass capability for professional installations. Featuring a durable G90 galvanized steel construction with powder coat finish and Type 3R rating, this single-position meter socket accommodates 6 AWG to 350 kcmil conductors on both line and load sides. The 4-terminal design with lay-in terminals and glass polyester insulation ensures secure connections, while the small closing plate and multiple cable entry options provide installation flexibility for overhead, underground, and side wireway applications.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and light commercial applications with reliable current capacity.
• Lever Bypass Provision: Enables safe meter maintenance and replacement without interrupting power service to the load.
• Type 3R Enclosure Rating: Provides weather-resistant protection for outdoor installations with resistance to rain, sleet, and ice formation.
• G90 Galvanized Steel Construction: Delivers long-lasting durability with corrosion resistance and professional powder coat finish.
• Flexible Cable Entry Options: Accommodates overhead, underground, and side wireway connections for versatile installation configurations.
• UL Listed Certification: Meets rigorous safety standards for code compliance and professional installation confidence.
• Wide Wire Range Compatibility: Accepts 6 AWG to 350 kcmil conductors on both line and load sides for diverse application requirements.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead and Underground and Side Wireway
• Departent: Electrical
• Equipment Ground: Ground Lug
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: HD4T
• Product Height: 20.5 IN
• Product Length: 4.875 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.875L x 14W x20.5H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 14 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Small Commercial Building Electrical Service
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Light Commercial Establishments
• Utility Company Metering Installations
• Electrical Contractor Service Upgrades

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The durable G90 galvanized steel with powder coat finish ensures long-term performance in demanding outdoor environments, while the professional 4-terminal design with lay-in connections provides secure, code-compliant installations for electrical professionals.
