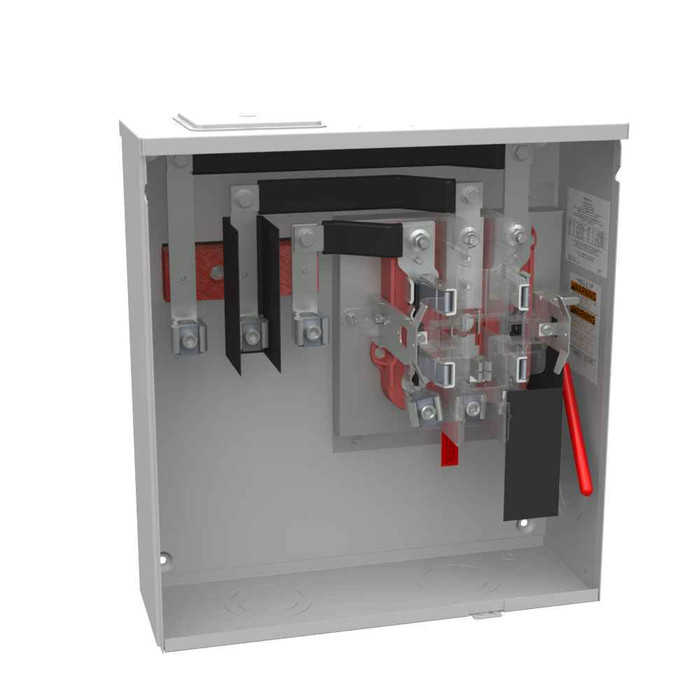

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional Electrical Metering Solution with Integrated Bypass Capability

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality for professional installations. Featuring a robust G90 galvanized steel construction with powder coat finish and Type 3R rating, this single-position meter socket accommodates 6 AWG to 350 kcmil conductors with versatile overhead, underground, and side wireway cable entry options.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides substantial capacity for residential and light commercial electrical service applications.
• Lever Bypass Provision: Enables safe meter removal and replacement without service interruption for maintenance operations.
• 5 Terminal Ringless Design: Simplifies installation with lay-in terminals eliminating the need for ring lugs on service conductors.
• Type 3R Enclosure Rating: Ensures reliable outdoor performance with protection against rain, sleet, and ice formation.
• G90 Galvanized Steel Construction: Delivers long-term durability with corrosion-resistant galvanized steel and protective powder coat finish.
• Flexible Cable Entry Options: Accommodates overhead, underground, and side wireway connections for versatile installation configurations.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead and Underground and Side Wireway
• Departent: Electrical
• Equipment Ground: Bonded Ground Strap
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Large Closing Plate
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: HD5T
• Product Height: 19.25 IN
• Product Length: 6 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 6L x 18W x19.25H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 18 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Service Metering
• Small Commercial Building Installations
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Service Establishments
• Light Industrial Facilities
• Utility Service Upgrades and Replacements

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection for dependable outdoor performance. The robust G90 galvanized steel construction with powder coat finish ensures long-term durability, while the professional-grade glass polyester insulation and bonded ground strap provide safe, code-compliant electrical service metering solutions.
