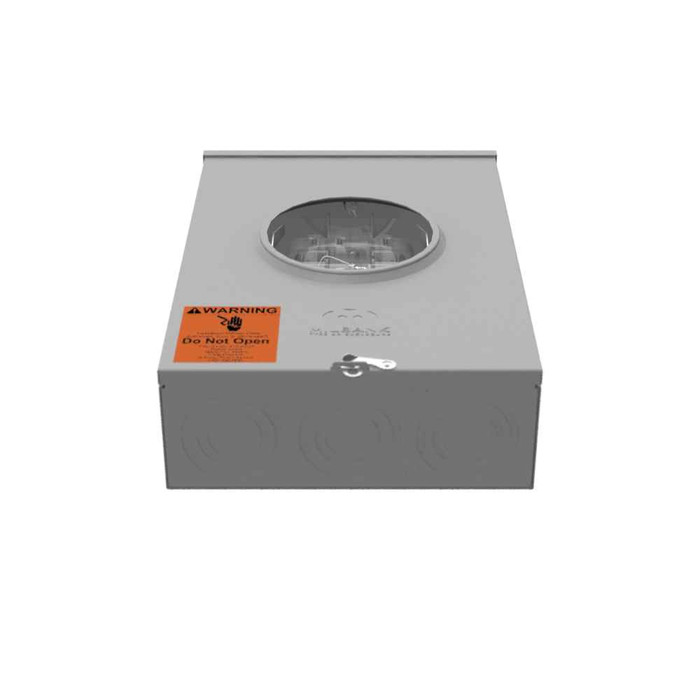

Milbank U4029-X-DPL 200A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate (2)

(No reviews yet) Write a Review

Model: U4029-X-DPL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$557.97
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional electrical metering solution with integrated bypass functionality

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass functionality for professional installations. Featuring G90 galvanized steel construction with powder coat finish and Type 3R rating, this surface-mount meter socket accommodates 6 AWG to 350 kcmil wire ranges on both line and load sides. The 7-terminal configuration with glass polyester insulation and bonded neutral equipment ground ensures dependable 600V AC service at 60 Hz frequency rating.

Professional Features & Benefits

  • 200A Continuous Rating: Handles substantial electrical loads for commercial and industrial applications with reliable amperage capacity.
  • 3-Phase Configuration: Supports balanced power distribution for efficient operation of three-phase equipment and systems.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without service interruption for operational continuity.
  • Type 3R Enclosure: Weather-resistant construction protects internal components from outdoor environmental conditions.
  • G90 Galvanized Steel: Corrosion-resistant material with powder coat finish ensures long-term durability and professional appearance.
  • Flexible Wire Range: Accommodates 6 AWG to 350 kcmil conductors on both line and load sides for versatile installation options.
  • UL Listed: Meets rigorous safety standards for code compliance and professional installation confidence.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Bonded Neutral
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: MD7T
  • Product Height: 19 IN
  • Product Length: 4.844 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.844L x 13W x19H
  • Product Type: Ringless Meter Socket
  • Special Features: Delmarva Power and Light
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 13 IN

Professional Applications

  • Commercial Buildings
  • Industrial Facilities
  • Multi-Unit Residential Properties
  • Retail Establishments
  • Professional Offices
  • Light Industrial Operations
  • Municipal and Government Buildings

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive wire range compatibility and professional-grade insulation provide dependable service for demanding electrical applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Bonded Neutral
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
MD7T
Product Height:
19 IN
Product Length:
4.844 IN
Product Size:
4.844L x 13W x19H
Product Type:
Ringless Meter Socket
Special Features:
Delmarva Power and Light
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
13 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U4029-X-DPL – Frequently Asked Questions

1) Is the Milbank U4029-X-DPL meter socket a 7-jaw 3-phase socket?
Yes. The U4029-X-DPL is a 7-terminal (7-jaw) socket wired for 3-phase service, one meter position, rated 200 continuous amps at 600V AC, 60 Hz. If your utility is calling for a 4-jaw single-phase socket, this is the wrong unit.
2) Will 4/0 aluminum service conductors land in this 200A Milbank socket?
They will. Both line and load terminals take 6 AWG through 350 kcmil, so 4/0 sits comfortably in range on either side. The terminals are lay-in type, which means you drop the conductor in rather than threading it through a closed lug.
3) Does this Milbank socket have a main breaker or disconnect in it?
No. It is a meter socket only, with no main breaker and no receptacles. The service disconnect has to be provided separately downstream, so budget for a separate 200A disconnect or panel to complete the installation.
4) Is the Milbank U4029-X-DPL approved for Delmarva Power territory?
The -DPL suffix marks it as the Delmarva Power and Light configuration, which is why it ships with lever bypass and the large hub closing plate. Utilities publish their own approved socket lists, so if you are working outside Delmarva territory you should be ordering the socket your serving utility spec calls out instead.
5) Can this Milbank socket be installed outdoors on an exterior wall?
Yes, it carries a Type 3R rating for outdoor rain and sleet exposure and is UL Listed. The enclosure is G90 galvanized steel with a powder coat finish, which is the normal build for exterior service equipment in coastal or humid areas.
6) Can the meter be pulled without dropping power to the building?
That is what the lever bypass is for. Throwing the bypass lever carries the load around the meter jaws so the meter can be pulled or swapped while the service stays energized. Only the utility or an authorized party should be operating it.
7) Can this meter socket be fed from an overhead drop, or does it need underground service?
Either works. The socket accepts overhead or underground cable entry, and it ships with a large hub closing plate covering the top hub opening, so you knock out and fit a hub for an overhead riser or leave it plated and come in from below.
8) Does this socket need a separate grounding bond, or is the neutral already bonded?
The neutral is factory bonded to the equipment ground in this socket. On a service-entrance meter installation that is what you want, but if you are installing it downstream of the service disconnect where neutral and ground must stay separated, this bonded-neutral unit is not the correct choice.
9) What does ringless mean on this Milbank meter socket, and does it change how the meter is secured?
Ringless means there is no separate sealing ring clamping the meter to the socket. Instead a hinged or lift-off cover goes over the meter and the utility seals the cover. Utilities specify ringless or ring-type by territory, so match whichever your serving utility requires. The Milbank U4029-X-DPL is the ringless style.
10) Will this handle a 480V 3-phase service?
The voltage rating is 600V AC, so a 480Y/277V or 480V delta 3-phase service is within rating, as is 208Y/120V. Current is the limit to watch: 200 amps continuous, 60 Hz. The 7-jaw configuration is what pairs it to 3-phase 4-wire metering.
