Milbank 200A 3-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,344.41

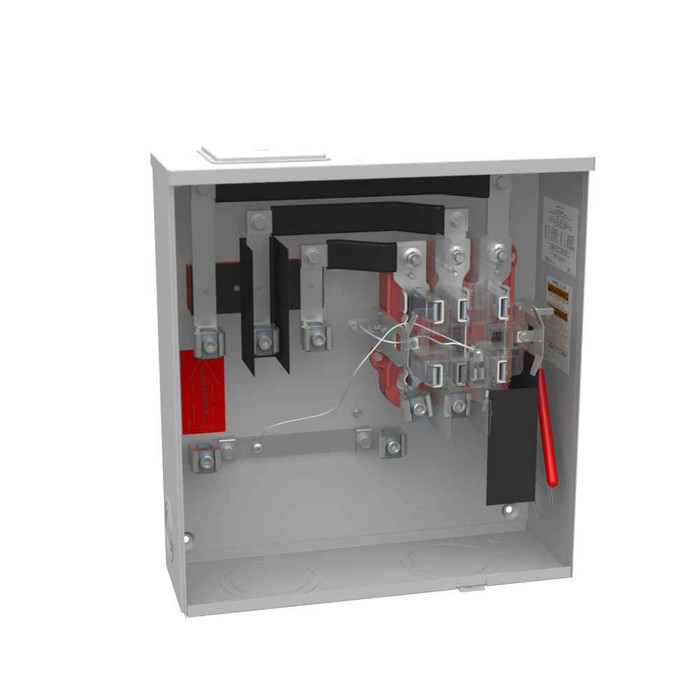

Milbank 7 Terminal Ringless Meter Socket Socket Meter Large Closing Plate Lever Bypass Side Bussed Wide Shell

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

(No reviews yet) Write a Review

Model: U1493-X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,344.41
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 3-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional 7-Terminal Meter Socket with Advanced Bypass Capability

The Milbank 200A 3-Phase Ringless Meter Socket delivers reliable electrical metering for commercial and industrial applications. This professional-grade meter socket features a robust G90 galvanized steel construction with powder coat finish, 7-terminal configuration, and integrated lever bypass provision for enhanced operational flexibility. Designed for surface mounting with Type 3R enclosure rating, this UL Listed meter socket accommodates overhead, underground, and side wireway cable entry options.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial current capacity for demanding commercial and industrial electrical systems.
  • 3-Phase Configuration: Supports three-phase power distribution for balanced loads and efficient power delivery in commercial applications.
  • Lever Bypass Provision: Enables safe meter maintenance and replacement without interrupting power service to critical loads.
  • 7-Terminal Design: Offers comprehensive connection points for complex metering configurations and enhanced electrical distribution.
  • Type 3R Enclosure Rating: Delivers weather-resistant protection suitable for outdoor installations and harsh environmental conditions.
  • G90 Galvanized Steel Construction: Ensures long-term durability and corrosion resistance with professional powder coat finish.
  • UL Listed Certification: Meets rigorous safety standards for reliable performance in commercial electrical installations.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Overhead and Underground and Side Wireway
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 7 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: HD7T
  • Product Height: 19.25 IN
  • Product Length: 6 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 6L x 18W x19.25H
  • Product Type: Ringless Meter Socket
  • Special Features: Alliant Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 18 IN

Professional Applications

  • Commercial Building Electrical Systems
  • Industrial Facility Power Distribution
  • Multi-Tenant Properties
  • Manufacturing Operations
  • Retail and Office Buildings
  • Municipal and Government Facilities
  • Educational Institutions

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability in demanding environments, while the comprehensive 7-terminal configuration and lever bypass provision provide the professional-grade functionality required for critical electrical metering applications.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Overhead and Underground and Side Wireway
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Jaws:
7 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
HD7T
Product Height:
19.25 IN
Product Length:
6 IN
Product Size:
6L x 18W x19.25H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
200
Product Width:
18 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
3
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
7
Product Group:
Power Distribution

Milbank U1493-X – Frequently Asked Questions

1) Will a Milbank U1493-X 7-terminal socket work for a 3-phase 4-wire 208/120V service?
The U1493-X is a 7-jaw, 3-phase socket rated 600 VAC at 60 Hz, which covers 208/120V and 480/277V 3-phase 4-wire services. Seven terminals is the standard jaw count a utility specifies for 3-phase 4-wire self-contained metering. For a 3-wire delta service the utility typically calls for a 5-jaw socket instead, so confirm the jaw count on the utility's meter spec before ordering.
2) What size service conductors will fit the lugs on this 200A Milbank meter socket?
Both line and load terminals accept 6 AWG through 350 kcmil, and they are lay-in style lugs, so you drop the conductor in rather than threading it through a barrel. At 200 amps that range comfortably covers 3/0 copper or 250 kcmil aluminum feeders, and it also lets you parallel down to smaller taps on a lighter load. A ground lug is provided for the equipment grounding conductor.
3) Does this Milbank ringless socket include a main breaker or disconnect?
No. The U1493-X is a meter socket only, with no main breaker and zero breaker positions. You will need a separate service disconnect or panelboard downstream to satisfy the service-entrance disconnect requirement. The lever bypass is for meter work, not a load disconnect.
4) Does the U1493-X come with a hub for overhead service, or do I need to add one?
It ships with a large closing plate, not a hub. That plate covers the opening for underground or side wireway feeds. If you are coming in overhead with conduit, pull the closing plate and fit a hub sized to your raceway, since the socket itself supports overhead, underground, and side wireway cable entry.
5) What is the difference between the standard U1493-X and the U1493-X-ALT version?
Two versions of this Milbank 7-terminal socket are built: the standard U1493-X and the U1493-X-ALT, which is the Alliant Energy utility-approved configuration. If your service territory is Alliant Energy, order the ALT so the socket matches their approved equipment list. Everywhere else the standard U1493-X is the one to specify.
6) What does the lever bypass on a meter socket actually do for me on the job?
The lever bypass shunts current around the meter jaws so the meter can be pulled, tested, or swapped without dropping the load. For a property manager with tenants on the service, that means meter changes don't become an outage. Many utilities now require bypass on commercial 3-phase sockets, so if your utility spec calls for it, this one has it built in.
7) Can a ringless Milbank U1493-X be installed outdoors on an exterior wall?
Yes. The enclosure is Type 3R rated and UL Listed, built from G90 galvanized steel with a powder coat finish, so rain and sleet exposure on an exterior wall is within its rating. It is a surface-mount unit, not flush or semi-flush, so plan for a flat mounting surface and backing capable of carrying it.
8) Is a ringless meter socket the right choice, or do I need a ring-type socket?
Ringless versus ring-type is dictated by the utility, not by preference. A ringless socket like this one uses a sealable cover over the meter rather than a separate retaining ring, and the utility seals the cover. Many utilities now standardize on ringless for commercial self-contained metering. If the utility's meter spec calls for ring-type, a ringless socket will be rejected at inspection, so match the spec sheet.
9) Is this socket self-contained metering or does it need current transformers?
It is a self-contained socket: one meter position, 7 jaws, rated 200 continuous amperes, with the service conductors landing directly on the lugs. No CTs involved. Above 200 amps the utility generally moves you to CT-rated metering with a separate cabinet, so for services larger than this you want a CT cabinet and transformer-rated socket instead.
10) Can this Milbank socket be used for multiple tenants or separate metering?
No, it is a single-position socket with one set of 7 jaws and no receptacles for additional meters. For multi-tenant metering you need a multi-position meter stack or a meter main pack. Use this one where a single 3-phase service is being metered.
11) What insulates the meter jaws in this Milbank socket?
The jaw block is glass polyester, a thermoset insulating material that holds up to heat and tracking better than a general-purpose plastic. That matters on a 200A 600V socket where the jaw assembly carries continuous current and sees outdoor temperature swings inside a Type 3R shell.
