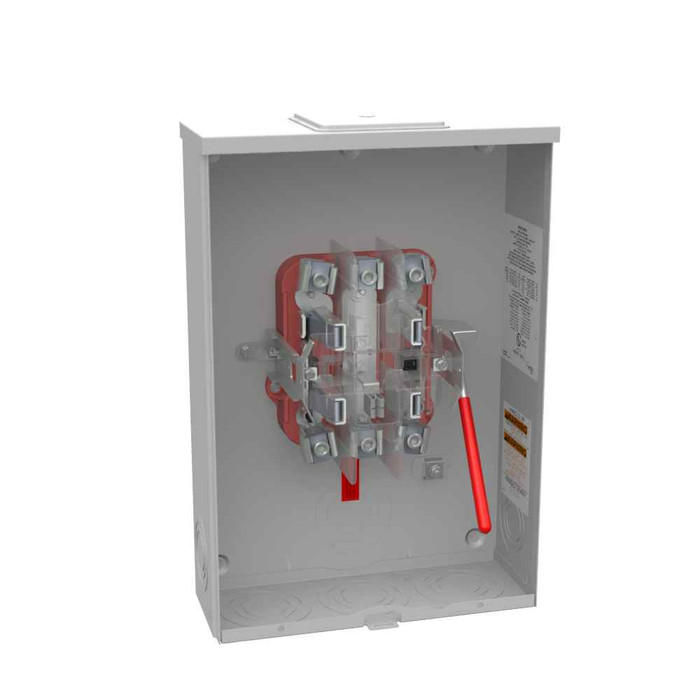

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate (2)

Milbank 200A 1-Phase Ringless Meter Socket with Lever Bypass and Large Closing Plate

Professional meter socket solution with integrated bypass functionality

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with integrated lever bypass capability for professional installations. Featuring a durable G90 galvanized steel construction with powder coat finish and Type 3R rating, this surface-mount meter socket accommodates both overhead and underground cable entry with 5-terminal configuration for versatile connection options.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Provides robust capacity for residential and light commercial electrical service applications
• Lever Bypass Provision: Enables safe meter removal and replacement without interrupting electrical service to the load
• Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations with protection against rain and sleet
• 5-Terminal Ringless Design: Accommodates flexible wiring configurations with lay-in terminals for 6 AWG to 350 kcmil conductors
• G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability in outdoor environments
• UL Listed Certification: Meets rigorous safety standards for reliable performance in electrical distribution applications
• Glass Polyester Insulation: Provides excellent electrical isolation and thermal stability for safe operation

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: Lever Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Frequency Rating: 60 Hertz
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 5 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: HD5T
• Product Height: 19 IN
• Product Length: 4.844 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.844L x 13W x19H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service installations requiring meter bypass capability
• Light commercial facilities with single-phase electrical distribution
• Utility meter installations with overhead or underground service entry
• Electrical service upgrades requiring reliable metering solutions
• Professional electrical contractor installations requiring UL Listed components
• Outdoor electrical installations requiring weather-resistant enclosures

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the comprehensive 5-terminal design and lever bypass provision provide professional-grade functionality for demanding electrical service applications.
