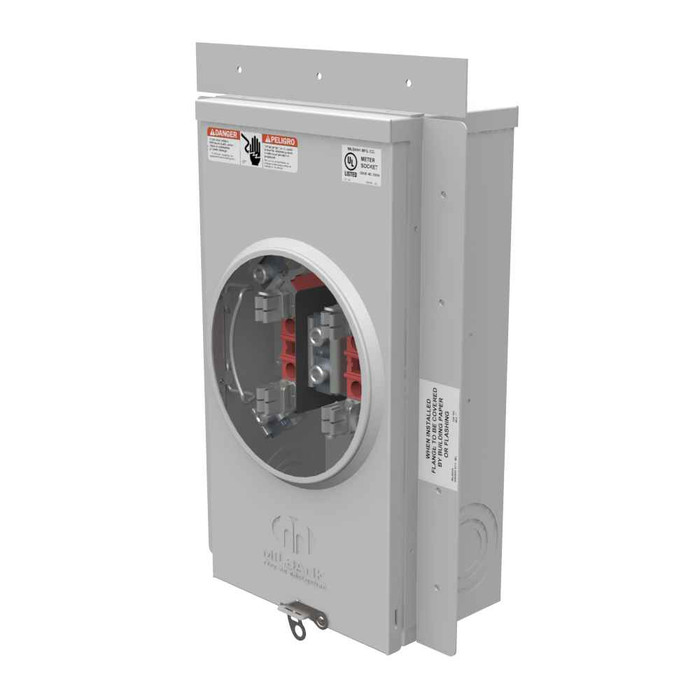

Milbank 200A 1-Phase Ringless Meter Socket 4 Terminal Flush Mount with Flange Knockouts

Milbank 200A 1-Phase Ringless Meter Socket 4 Terminal Flush Mount with Flange Knockouts

Professional electrical metering solution for residential and commercial applications

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering with 4 terminal configuration and flush mount design. Constructed with G90 galvanized steel and powder coat finish for durability, this UL Listed Type 3R enclosure provides professional-grade performance for overhead cable entry applications with bonded neutral equipment ground.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads for residential and commercial metering applications with reliable capacity.
• 4 Terminal Ringless Design: Simplifies installation and maintenance with lay-in terminal configuration for efficient wire connections.
• G90 Galvanized Steel Construction: Provides superior corrosion resistance and long-term durability with powder coat finish protection.
• Type 3R UL Listed Enclosure: Ensures safety compliance and weather resistance for outdoor installations and harsh environments.
• Flush Mount Configuration: Offers clean, professional appearance with space-efficient installation profile.
• 600V AC Voltage Rating: Accommodates standard electrical service voltages with 60 Hz frequency compatibility.
• Wide Wire Range Compatibility: Accepts 6 AWG to 350 kcmil conductors on both line and load sides for versatile connections.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead
• Departent: Electrical
• Equipment Ground: Bonded Neutral
• Frequency Rating: 60 Hertz
• Hub Closing Plate: No Hub Opening
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 17.156 IN
• Product Length: 5.125 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Flush Mount
• Product Size: 5.125L x 11.188W x17.156H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 11.188 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service metering
• Commercial building electrical distribution
• Multi-unit residential properties
• Small commercial facilities
• Electrical contractor installations
• Utility company metering applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed safety certification and Type 3R weather-resistant enclosure rating. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance for professional electrical installations.
