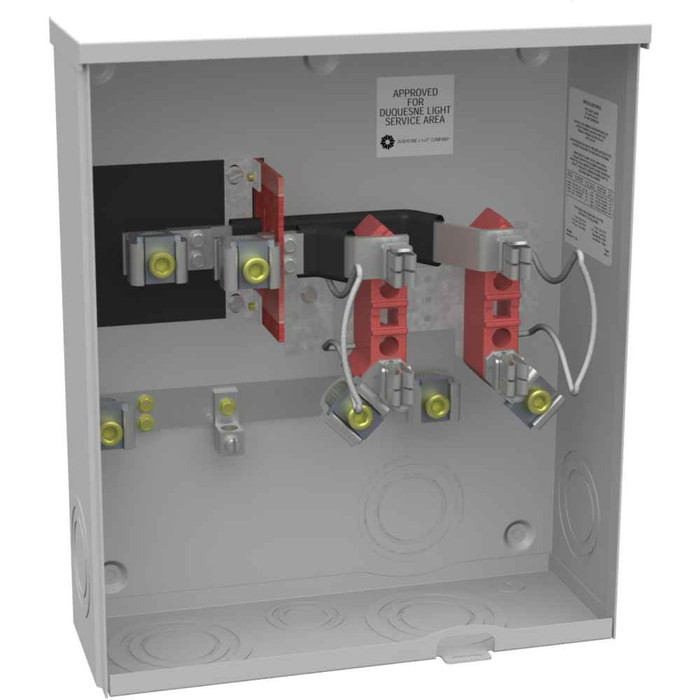

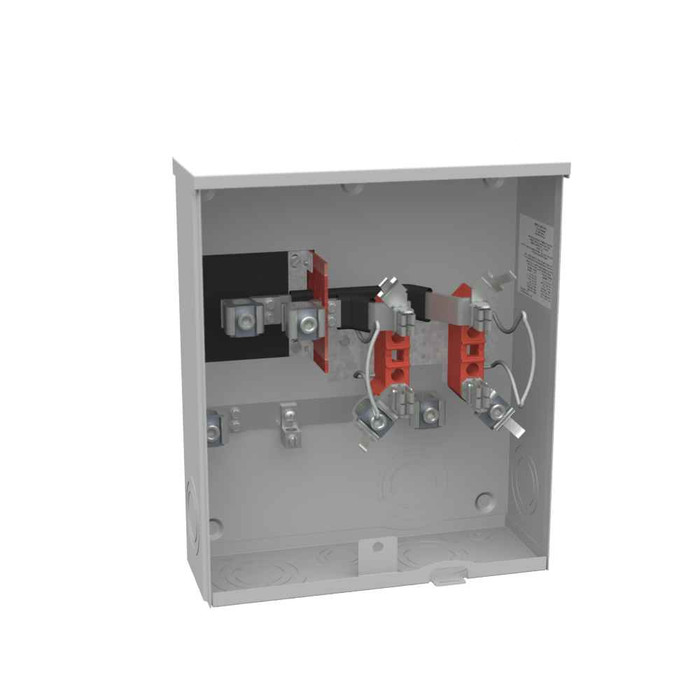

Milbank 4 Terminal Ringless Meter Socket with Horn Bypass 200A 1 Phase Surface Mount

Milbank 4 Terminal Ringless Meter Socket with Horn Bypass

Professional electrical metering solution with horn bypass capability

The Milbank 4 Terminal Ringless Meter Socket delivers reliable 200 continuous ampere service for single phase applications. This surface mount meter socket features durable G90 galvanized steel construction with powder coat finish and Type 3R rating for outdoor installations. The horn bypass provision enables safe meter maintenance while maintaining power continuity, making it ideal for critical service applications.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable current capacity for residential and light commercial applications.
• Horn Bypass Provision: Enables safe meter removal and replacement without interrupting power service to critical loads.
• 4 Terminal Ringless Design: Simplifies installation with lay-in terminals accommodating 6 AWG to 350 kcmil wire range on both line and load sides.
• Type 3R Enclosure Rating: Weather-resistant construction protects against rain, sleet, and ice formation for reliable outdoor performance.
• G90 Galvanized Steel Construction: Corrosion-resistant material with powder coat finish ensures long-term durability in harsh environments.
• UL Listed Certification: Meets rigorous safety standards for professional electrical installations and code compliance.
• Underground Cable Entry: Side wireway design accommodates underground service connections with proper cable management.

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket
• Barrel Lock Provision: 7/8 Inch Knockout and Angle Bracket For Barrel Lock Provision
• Brand Name: Milbank
• Bypass Provision: Horn Bypass
• Cable Entry: Underground with Side Wireway
• Departent: Electrical
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Plain Top
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: No Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 0
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: 4T20
• Product Height: 15.25 IN
• Product Length: 4.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.5L x 13W x15.25H
• Product Type: Ringless Meter Socket
• Special Features: Duquesne Light Company
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: 600 Volts Alternating Current
• Width: 13 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Metering
• Light Commercial Electrical Service
• Multi-Unit Residential Properties
• Professional Office Buildings
• Retail and Service Establishments
• Municipal and Institutional Facilities
• Underground Service Installations

Why Choose Milbank Quality?

Milbank meter sockets deliver proven reliability with UL Listed certification and Type 3R weather protection. The durable G90 galvanized steel construction with powder coat finish ensures long-term performance in demanding outdoor environments, while the glass polyester insulation provides superior electrical isolation for safe operation.
