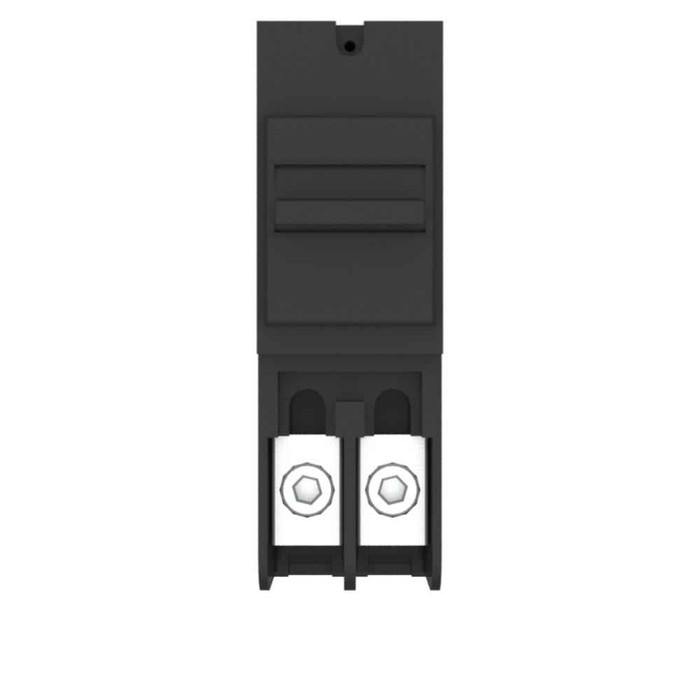

Milbank WBJ2200 Current Interrupting Device - Non Metallic - 200A - Bus to Lug

Milbank 200A Current Interrupting Device Non-Metallic 2-Pole Bus to Lug Connection

(No reviews yet) Write a Review

Model: WBJ2200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$666.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Current Interrupting Device Non-Metallic 2-Pole Bus to Lug Connection

Professional Current Interruption & Circuit Protection

The Milbank 200A Current Interrupting Device delivers reliable circuit protection with non-metallic construction and thermal magnetic trip operation. This 2-pole, single-phase device features 240V AC rating with 10,000 ampere interrupting capacity and lever actuator for professional metering accessory applications. The compact small frame design with plug-on special features ensures versatile installation options.

Professional Features & Benefits

  • 200 Ampere Rating: Provides substantial current handling capacity for demanding electrical applications and load protection requirements.
  • 10,000 Ampere Interrupting Capacity: Delivers robust fault current interruption capability for enhanced system safety and protection.
  • Non-Metallic Construction: Offers corrosion resistance and electrical isolation properties for reliable long-term performance.
  • Thermal Magnetic Trip Type: Combines thermal overload and magnetic short-circuit protection for comprehensive circuit safeguarding.
  • 2-Pole Configuration: Enables simultaneous interruption of both conductors for complete circuit isolation and safety.
  • UL Listed Standard: Meets rigorous safety and performance standards for professional electrical installations.
  • Lever Actuator: Provides manual operation capability for testing, maintenance, and emergency disconnection procedures.

Technical Specifications

  • Actuator: Lever
  • Amperage Rating: 200 Ampere
  • Application: Metering Accessory
  • Auxiliary Contacts: No Auxiliary Contacts
  • Brand Name: Cutler Hammer
  • Connection: Bus to Lug
  • Departent: Electrical
  • Frame: Small Frame
  • Frequency Rating: 60 Hertz
  • Interrupt Rating: 10,000 Ampere Interrupting Capacity
  • Number Of Poles: 2
  • Operating Temperature: 40 Degrees Celsius
  • Phase: 1 Phase
  • Product Height: 6.285 IN
  • Product Length: 2.997 IN
  • Product Material: Non Metallic
  • Special Features: Plug On
  • Standard: UL Listed
  • Trip Type: Thermal Magnetic
  • Unspsc: 39121601
  • Voltage Rating: 240 Volts Alternating Current
  • Width: 2 IN

Professional Applications

  • Electrical Metering Systems
  • Commercial Service Panels
  • Industrial Distribution Equipment
  • Utility Interconnection Points
  • Load Center Protection
  • Circuit Isolation Requirements
  • Emergency Disconnect Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and robust thermal magnetic protection technology. The non-metallic construction and compact small frame design ensure long-lasting performance in demanding electrical environments, backed by professional-grade engineering and quality standards.

Manufacturer Resources

Product Specs

Actuator:
Lever
Amperage Rating:
200 Ampere
Application:
Metering Accessory
Auxiliary Contacts:
No Auxiliary Contacts
Brand Name:
Milbank
Connection:
Bus to Lug
Frame:
Small Frame
Frequency Rating:
60 Hertz
Interrupt Rating:
10,000 Ampere Interrupting Capacity
Number Of Poles:
2
Operating Temperature:
40 Degrees Celsius
Phase:
1 Phase
Product Height:
6.285 IN
Product Length:
2.997 IN
Special Features:
Plug On
Standards:
UL Listed
Trip Type:
Thermal Magnetic
Unspsc:
39121601
Voltage Rating:
240 Volts Alternating Current
Product Material:
Non Metallic
Amps:
200
Product Width:
2 IN
Department:
Electrical
Product Subgroup:
Circuit Breakers
Product Type:
Lug
Product Group:
Circuit Protection

Milbank WBJ2200 – Frequently Asked Questions

1) Will the Milbank WBJ2200 current interrupting device work on a 120/240V single-phase residential meter socket?
Yes, that is the service it is built for. The WBJ2200 is a 2-pole, single-phase device rated 240V AC at 60 Hz, 200 amps, intended as a metering accessory. Both hot legs are interrupted together, so the whole service is isolated when the lever is thrown.
2) Is 10,000 AIC enough interrupting capacity for my service, or do I need a higher rating?
The WBJ2200 interrupts 10,000 amps of fault current. That covers typical residential and light commercial services where the utility's available fault current at the meter is 10kA or less. If your utility letter or coordination study shows available fault current above 10,000 amps at that point, this device is not rated for it and you need a higher AIC device.
3) How does the WBJ2200 connect, and does it need bolting to the panel bus?
It is a plug-on device with a bus to lug connection: the line side plugs onto the socket bus and the load side terminates in lugs for your service conductors. No separate bolt-on bus kit is involved on the line side.
4) Will the WBJ2200 fit in my meter socket enclosure?
The device measures 6.285 x 2.997 x 2 inches as a small frame unit. Measure the breaker pocket in your socket against those three numbers before you commit, since metering enclosures vary by manufacturer and vintage.
5) Is the Milbank WBJ2200 a main breaker or just a disconnect?
Both functions in one device. It has a thermal magnetic trip unit, so it gives thermal overload protection plus magnetic instantaneous protection on short circuits, and the lever actuator lets you open the service by hand for testing, maintenance, or emergency disconnect.
6) Does the WBJ2200 come with auxiliary contacts for alarm or shunt trip signaling?
No. The WBJ2200 is supplied with no auxiliary contacts, so there is no dry contact to feed a BMS, alarm panel, or status indicator. If your spec calls for breaker position monitoring, this device will not satisfy it.
7) Can this current interrupting device be installed in a corrosive or coastal outdoor metering location?
The body is non-metallic, which avoids the rust and galvanic problems a metal-cased device has in salt air or washdown areas. The device itself is rated for 40 degrees Celsius ambient, so the enclosure it sits in still has to handle the environment and sun load.
8) What part number do I order for the Milbank 200A non-metallic bus-to-lug interrupting device?
Order Milbank WBJ2200. It is a single configuration: 200A, 2-pole, 240V AC, non-metallic, bus to lug, with no pole or connection options to specify.
