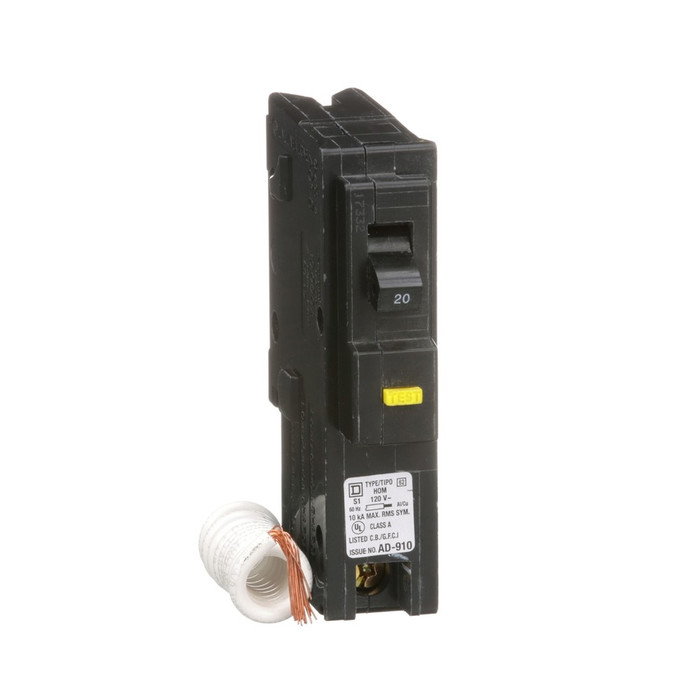

Square D Homeline GFCI Miniature Circuit Breaker, Class A Ground Fault Protection

Square D Homeline GFCI Miniature Circuit Breaker, Class A Ground Fault Protection

Square D Homeline miniature circuit breakers are engineered for fast installation and reliable circuit protection in residential and light commercial panels. This 2 pole plug-in breaker is designed to snap directly into Homeline load centers and CSEDs, combining standard overcurrent protection with Class A ground fault protection (6 mA) for enhanced personnel safety. Rated for 120 V AC (Ue) operation with a 10 kA short circuit current (AIC) rating, it is UL Listed and HACR rated for use on air conditioning and refrigeration equipment circuits.

Key Features

• Configuration: 2 pole miniature circuit breaker for plug-in mounting directly into compatible Homeline load centers.
• Ground Fault Protection: Class A ground fault protecting at 6 mA for added protection against electric shock hazards.
• Rated Operational Voltage (Ue): 120 V AC for standard residential branch circuit applications.
• Short Circuit Current Rating: 10 kA AIC for dependable interruption performance.
• Electrical Connection: Screw clamp terminals accept 1 x AWG 14...AWG 10 (aluminium/copper) conductors at 4.1 N.m tightening torque.
• HACR Rated: Suitable for heating, air conditioning, and refrigeration equipment circuits.
• Ambient Operating Temperature: Rated for operation at up to 40 °C ambient air temperature.
• Compatible Accessories: Works with HOMELEC1PA, QO1LO, HOM1PA, and HOM1HT accessories.

Certifications & Compliance

• UL Listed
• HACR Rated
• TAA Compliant
• RoHS Eur – Compliant with Exemptions
• Mercury Free
• Halogen Free Product
• Green Premium Product
• WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Technical Specifications

• Sustainable Packaging: No
• Recycled Metal Content At Cr Level: 0 %
• Serviceability: No
• H And D Enrichment Assignment: yes
• With Recycled Cardboard: No
• Compliance: TAA
• China ROHS In Scope: No
• Return Indicator: Y
• Tier: 1
• Legacy WEEE Scope: In
• Packaging Made With Recycled Cardboard: No
• EOLI Availability Display: Yes
• Without Single Use Plastic: Yes
• ROHS Exemption Information: Yes
• WEEE Product Category: 5
• Reach Full Compliance Status Id: CONTAINS_SVHC
• Product Certifications: UL Listed
• Mercury Free: Yes
• ROHS Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
• Packaging Without Single Use Plastic: Yes
• Tier Id: 1
• ROHS Eur In Scope: Yes
• H And D Enrichment Class 3: Earth leakage protection devices

Typical Applications

• Residential Homeline Load Center Panels
• Branch Circuit Overcurrent Protection
• Ground Fault (GFCI) Circuit Protection
• HVAC and Refrigeration Equipment Circuits
• Panel Upgrades and Circuit Additions
• New Construction and Renovation Wiring

Why Square D?

Square D by Schneider Electric builds the Homeline line to the electrical characteristics stated in its UL data sheet, giving electricians and contractors a plug-in breaker with dependable Class A ground fault protection and a 10 kA interrupt rating. Backed by UL Listing, HACR rating, and Green Premium environmental credentials, this Homeline breaker delivers code-compliant performance for professional and DIY panel work alike.
